FRAME
DR100 1990 (L) USA (E03)

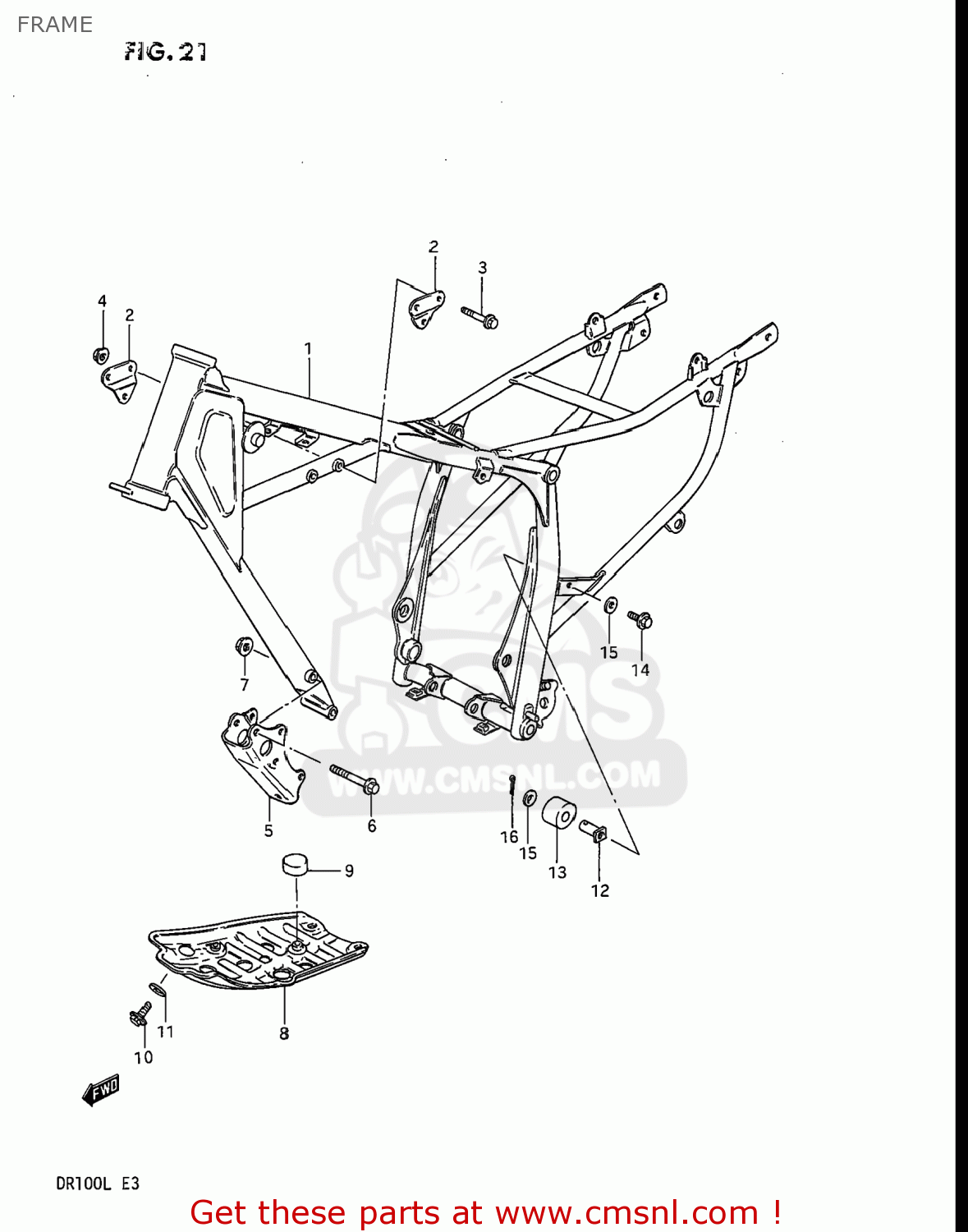

Frame diagram DR100 1990 (L) USA (E03)
FRAME DR100 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411000525019F
ref: 1-1
FRAME
€ 344.00
1-2
411000525013L
ref: 1-2
FRAME
€ 344.00
1-3
411000525034S
ref: 1-3
41100-05250-163
FRAME
€ 344.00
1-4
4110005250163
ref: 1-4
FRAME
€ 344.00
2
4199105250
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
3-1
0910308081
ref: 3-1
BOLT(8X50)
€ 3.50
3-2
0910308082
ref: 3-2
09103-08395
BOLT 8X50
€ 7.00
4
0831931085
ref: 4
08319-3108A
NUT
€ 2.50
5-1
4199205250
ref: 5-1
PLATE,ENGINE MOUNTING
€ 8.50
5-2
419920525034S
ref: 5-2
41992-05250-163
PLATE,ENGINE MOUNTING
€ 10.50
5-3
4199205250163
ref: 5-3
PLATE,ENGINE MOUNTING,LOWER
€ 10.50
6-1
0910308075
ref: 6-1
09103-08037
BOLT 8X67
€ 6.50
6-2
0910308037
ref: 6-2
BOLT(8X67)
€ 6.50
7-1
0831931085
ref: 7-1
08319-3108A
NUT
€ 2.50
7-2
0831931087
ref: 7-2
NUT
€ 2.50
8-1
425100520208C
ref: 8-1
42510-05203-13L
PROTECTOR,ENGINE
€ 64.00
8-2
425100520213L
ref: 8-2
42510-05203-13L
PROTECTOR,ENGINE
€ 64.00
8-3
425100520313L
ref: 8-3
PROTECTOR,ENGINE
€ 64.00
9
0932912003
ref: 9
CUSHION
€ 4.00
10
0151706125
ref: 10
01550-0612A
BOLT 6X12
€ 2.50
11
0916006069
ref: 11
09160-06052
WASHER
€ 2.00
12
4391020400
ref: 12
BOSS,CHAIN CONTROL
€ 18.00
13
4391120400
ref: 13
ROLLER,CHAIN LENGTH CONTROLLER
€ 19.00
14
0151706126
ref: 14
01550-0612A
BOLT
€ 2.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0411125208
ref: 16
04111-2520A
PIN 25X20
€ 2.00
