GEAR SHIFTING
DR200 1987 (H) USA (E03)

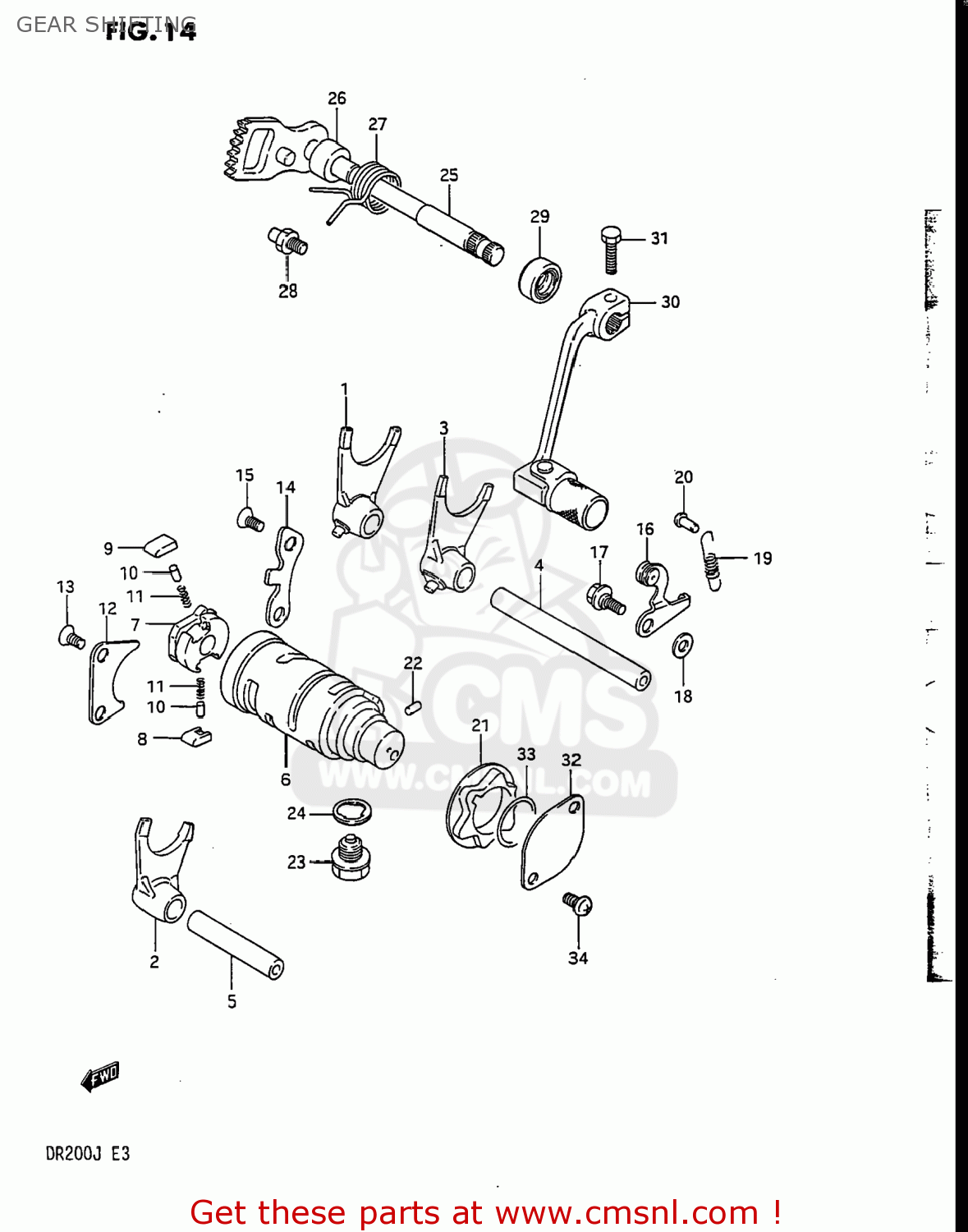

Gear shifting diagram DR200 1987 (H) USA (E03)
GEAR SHIFTING DR200 1987 (H) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521142A01
ref: 1
25211-42A02
FORK,GEAR SHIFT NO.1
€ 47.50
2
2522142A01
ref: 2
25221-42A02
FORK,GEAR SHIFT NO.2
€ 36.00
3
2523142A01
ref: 3
25231-42A02
FORK,GEAR SHIFT NO.3
€ 34.00
4
2541116701
ref: 4
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
5
2542135401
ref: 5
25421-35410
SHAFT,GEAR SHIFT FORK
€ 19.00
6
2531042A00
ref: 6
CAM,GEAR SHIFT
€ 68.00
7
2532231301
ref: 7
25322-31310
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8-1
2532334200
ref: 8-1
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
8-2
2532334201
ref: 8-2
PAWL,GEAR SHIFT NO.1
€ 6.00
9-1
2532434200
ref: 9-1
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
9-2
2532434201
ref: 9-2
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
2535042A00
ref: 16
STOPPER COMP,GEAR SHIFT
€ 10.00
17
0911106019
ref: 17
09111-06054
BOLT
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944308041
ref: 19
09443-10036
SPRING
€ 3.50
20
0922304001
ref: 20
RIVET
€ 1.50
21
2538104700
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 13.00
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
0924714012
ref: 23
09247-14026
PLUG (14X12)
€ 3.50
24
0916814004
ref: 24
GASKET(14X19.2X2) (NAS)
€ 2.50
25
2551005201
ref: 25
SHAFT,GEAR SHIFT
€ 42.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
0944426001
ref: 27
SPRING
€ 4.00
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
2560037211
ref: 30
25600-42A00
LEVER ASSEMBLY,GEAR SHIFTING
€ 26.00
31
0910006100
ref: 31
01500-0620A
BOLT
€ 2.00
32
1145146000
ref: 32
CAP,GEAR SHIFT CAM PIVOT
€ 2.50
33
0928022014
ref: 33
37941-33D00
O-RING (D:2.4 ID:22.2)
€ 3.50
34
0211205088
ref: 34
02112-05087
SCREW
€ 2.00
