TURN SIGNAL LAMP
DR200SE 1996 (T) USA (E03)

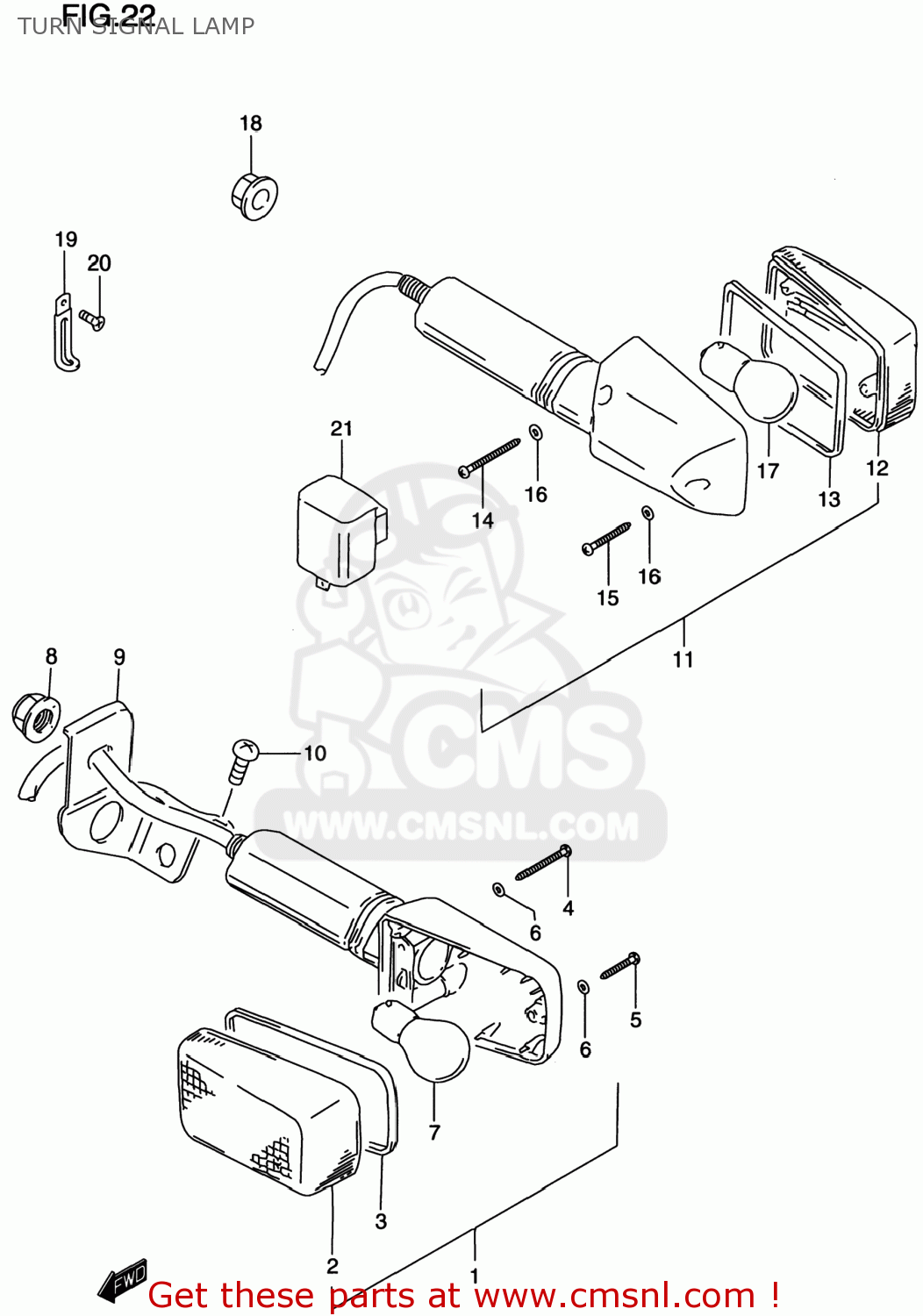

Turn signal lamp diagram DR200SE 1996 (T) USA (E03)
TURN SIGNAL LAMP DR200SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560129EC0
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 78.00
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
0831610103
ref: 8
08316-1010B
NUT
€ 2.00
9-1
3567044A01
ref: 9-1
BRACKET,FR TURN,R
€ 13.50
9-2
3568044A01
ref: 9-2
BRACKET,FR TURN,L
€ 13.50
10
0214205083
ref: 10
02142-0508A
SCREW
€ 2.00
11
3560329EK0
ref: 11
LAMP ASSY,RR TURNSIGNAL
€ 85.50
12
3565217C20
ref: 12
LENS
€ 6.50
13
3561327A00
ref: 13
GASKET (NAS)
€ 3.00
14
3562327A00
ref: 14
SCREW(3X30)
€ 1.50
15
3572540511
ref: 15
SCREW
€ 1.50
16
3562727A02
ref: 16
GASKET (NAS)
€ 1.50
17
0947112045
ref: 17
BULB(12V21W)
€ 5.00
18
0831610103
ref: 18
08316-1010B
NUT
€ 2.00
19
0940406429
ref: 19
CLAMP(L:45)
€ 2.50
20
0354104103
ref: 20
03541-0410A
SCREW
€ 1.50
21
3861031X50
ref: 21
RELAY ASSY,TURNSIGNAL
€ 54.50
