HANDLE SWITCH

DR200SE 1999 (X) USA (E03)

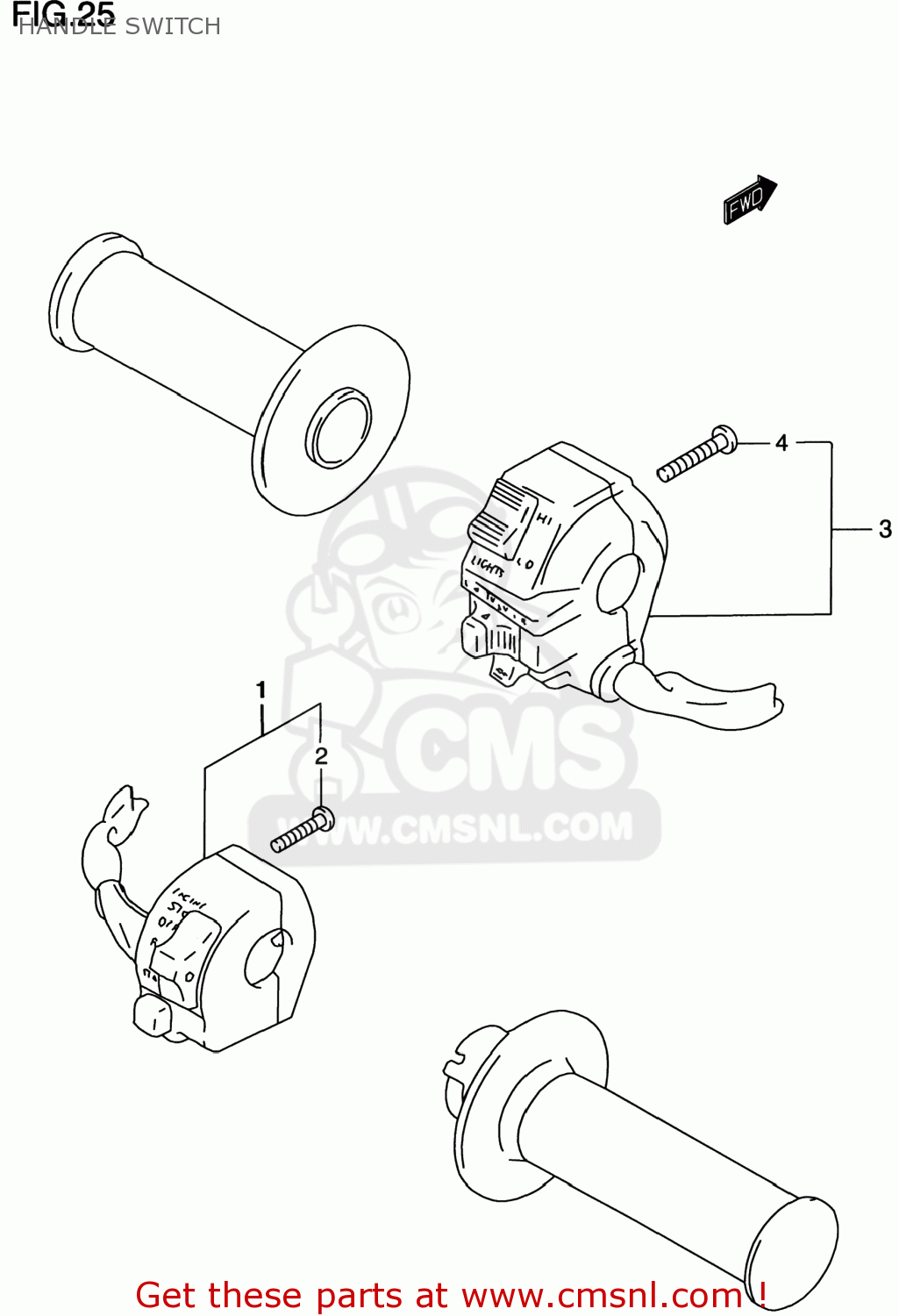

Handle switch diagram DR200SE 1999 (X) USA (E03)

HANDLE SWITCH DR200SE 1999 (X) USA (E03)

HANDLE SWITCH DR200SE 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720044A70
ref: 1

SWITCH ASSY,HANDLE,R

€ 47.50

2

0211204203
ref: 2
02112-0420A

SCREW

€ 1.00

3

3740044A00
ref: 3
37400-44A30

SWITCH ASSEMBLY,HANDLE,LEFT

€ 110.50

4

0211205305
ref: 4
02112-0530B

SCREW

€ 1.50
