REAR CUSHION LEVER (MODEL K4/K5)
DR200SE 2001 (K1) USA (E03)

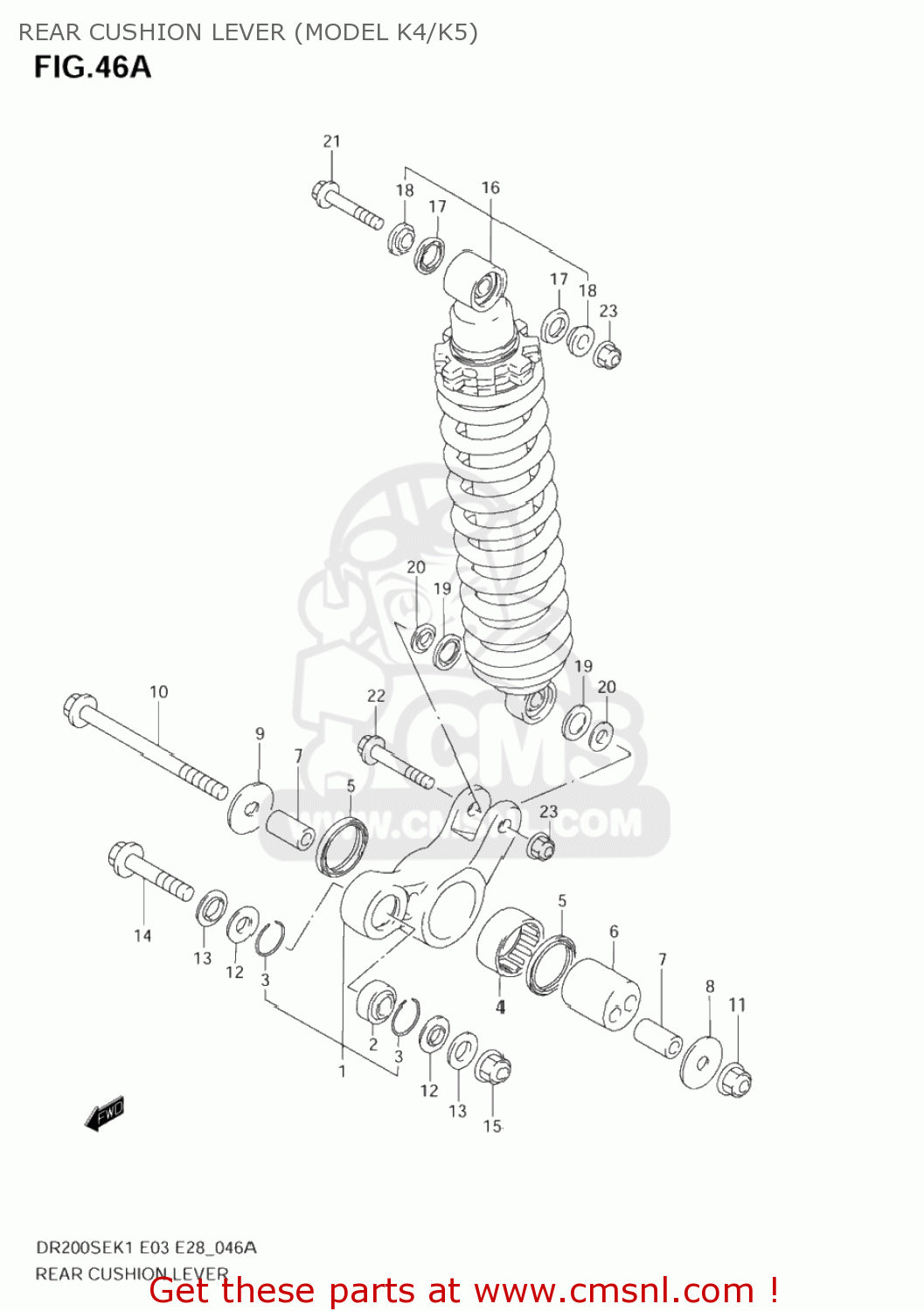

Rear cushion lever (model k4/k5) diagram DR200SE 2001 (K1) USA (E03)
REAR CUSHION LEVER (MODEL K4/K5) DR200SE 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260042812
ref: 1
LEVER SET,RR CUSHION
€ 158.00
2
0926912006
ref: 2
BEARING(12X26X16)
€ 43.50
3
6227727C20
ref: 3
RING,BEARING STOPPER
€ 2.50
4
0926337003
ref: 4
BEARING(37X47X20)
€ 29.00
5
6262442A00
ref: 5
SEAL,DUST
€ 5.00
6
6262342A11
ref: 6
SPACER,RR SUSPENSION ECCENTRIC
€ 45.00
6
6262342A11
ref: 6
SPACER,RR SUSPENSION ECCENTRIC
€ 45.00
7
6264642A11
ref: 7
SPACER,CUSHION LEVER SHAFT
€ 13.00
8
6262842AA0
ref: 8
WASHER,RR CUSH LVR CTR,L
€ 6.00
8
6262842AA0
ref: 8
WASHER,RR CUSH LVR CTR,L
€ 6.00
9
6262542AA0
ref: 9
WASHER,RR CUSH LVR CTR,R
€ 0.00
9
6262542AA0
ref: 9
WASHER,RR CUSH LVR CTR,R
€ 0.00
10
6262142AA0
ref: 10
SHAFT,RR CUSHION LEVER CTR
€ 19.00
10
6262142AA0
ref: 10
SHAFT,RR CUSHION LEVER CTR
€ 19.00
11
0831921128
ref: 11
08319-2112A
NUT 12MM
€ 4.00
12
6264705A00
ref: 12
SEAL,RR CUSHION ROD DUST
€ 2.50
13
6231605A01
ref: 13
SPACER,RR CUSHION ROD
€ 8.00
14
6266842A02
ref: 14
BOLT,CUSHION LEVER FR
€ 7.00
15
0831931128
ref: 15
08319-3112A
NUT 12MM
€ 4.00
16-1
6210044AB2163
ref: 16-1
ABSORBER ASSY,RR SHOCK
€ 0.00
16-1
6210044AB2163
ref: 16-1
ABSORBER ASSY,RR SHOCK
€ 0.00
16-2
6210044AB228W
ref: 16-2
ABSORBER ASSY,RR SHOCK
€ 0.00
16-2
6210044AB228W
ref: 16-2
ABSORBER ASSY,RR SHOCK
€ 0.00
16-3
6210044AC0163
ref: 16-3
ABSORBER ASSY,RR SHOCK
€ 0.00
16-3
6210044AC0163
ref: 16-3
ABSORBER ASSY,RR SHOCK
€ 0.00
16-4
6210044AC028W
ref: 16-4
ABSORBER ASSY,RR SHOCK
€ 0.00
16-4
6210044AC028W
ref: 16-4
ABSORBER ASSY,RR SHOCK
€ 0.00
17
6222620900
ref: 17
DUST SEAL
€ 8.00
18
6268420900
ref: 18
SPACER
€ 8.00
19
6222602B00
ref: 19
DUST SEAL,RR SHOCK
€ 8.00
20
6268431300
ref: 20
COLLAR
€ 8.00
21
6231114501
ref: 21
09103-10428
BOLT,REAR SHOCK ABSORBER
€ 3.50
22
0910310126
ref: 22
BOLT(10X48)
€ 4.50
23
0915910058
ref: 23
09159-10115
NUT
€ 4.00
