KICK STARTER
DR350 1991 (M) USA (E03)

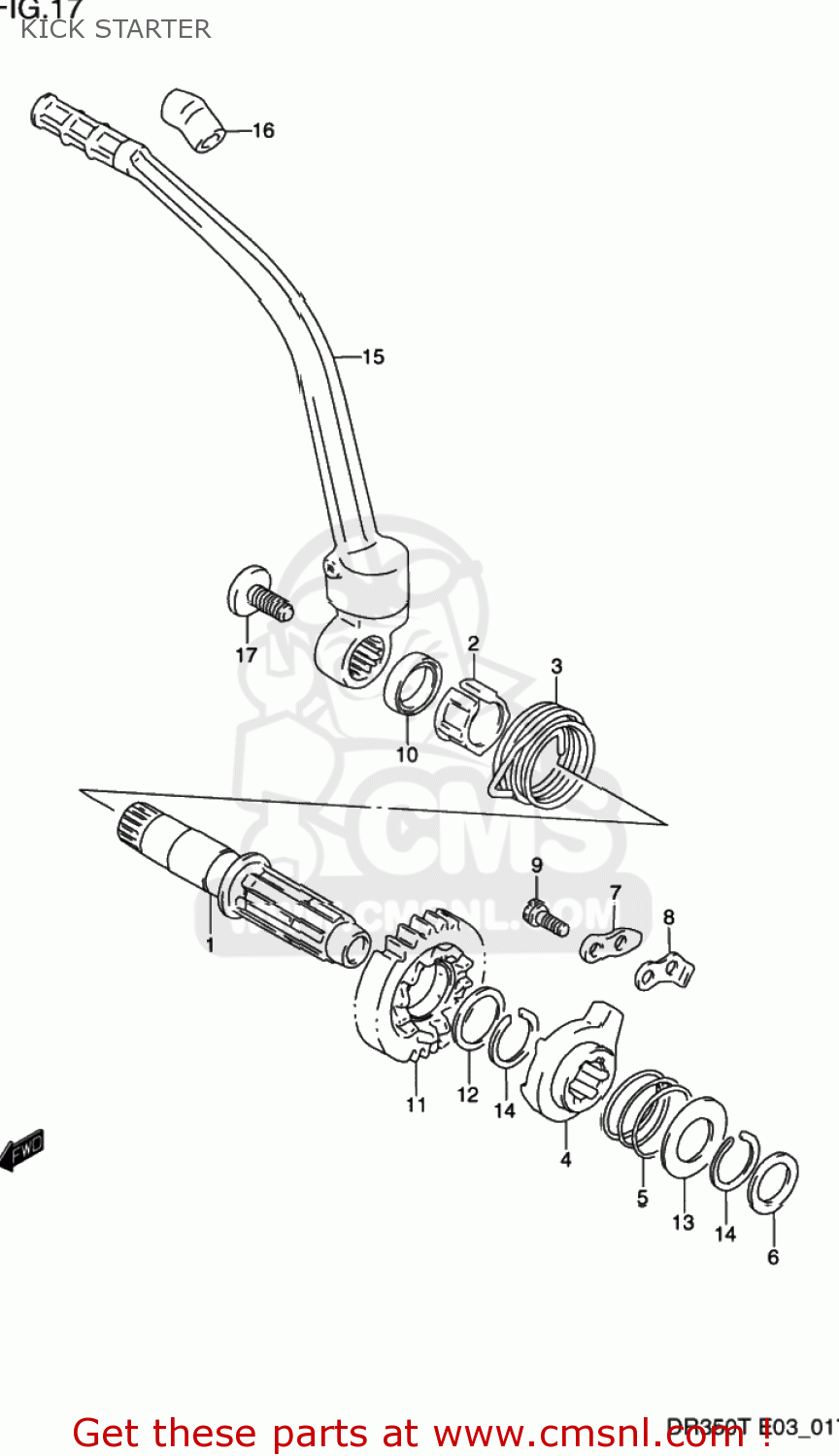

Kick starter diagram DR350 1991 (M) USA (E03)
KICK STARTER DR350 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621114D02
ref: 1
26211-14D03
SHAFT,KICK STARTER
€ 85.50
2
2622122A00
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.00
3
0944850001
ref: 3
SPRING
€ 10.00
4-1
2623122A10
ref: 4-1
STARTER,KICK
€ 47.50
4-2
2623114D20
ref: 4-2
26231-14D21
STARTER,KICK
€ 41.50
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821117261
ref: 6
09181-17167
WASHER,THRUST
€ 3.00
7
2623214500
ref: 7
GUIDE,KICK STARTER
€ 6.00
8
2623314500
ref: 8
STOPPER,KICK STARTER
€ 3.50
9
0910606071
ref: 9
07130-0612A
BOLT,KICK START STOPPER
€ 2.50
10
0928320044
ref: 10
SEAL,OIL(20X27X6)
€ 8.00
11-1
2624014D00
ref: 11-1
26240-14D20
GEAR,KICK STARTER NO.2
€ 90.00
11-2
2624014D10
ref: 11-2
26240-14D20
GEAR,KICK STARTER NO.2
€ 90.00
11-2
2624014D10
ref: 11-2
26240-14D20
GEAR,KICK STARTER NO.2
€ 90.00
11-3
2624014D20
ref: 11-3
GEAR,KICK STARTER(NT:23)
€ 90.00
12
0821122281
ref: 12
09181-22139
SHIM
€ 4.00
13
0821122361
ref: 13
09181-22251
WASHER,THRUST
€ 3.50
14
0938022006
ref: 14
CIRCLIP
€ 3.00
15-1
2630014D03
ref: 15-1
26300-14D11
LEVER ASSEMBLY,KICK STARTER
€ 350.00
15-2
2630014D10
ref: 15-2
26300-14D11
LEVER ASSEMBLY,KICK STARTER
€ 350.00
16
2631214D00
ref: 16
COVER,KICK STARTER LEVER
€ 8.00
17
0910608102
ref: 17
BOLT(8X14)
€ 7.00
