CYLINDER

DR350 1992 (N) USA (E03)

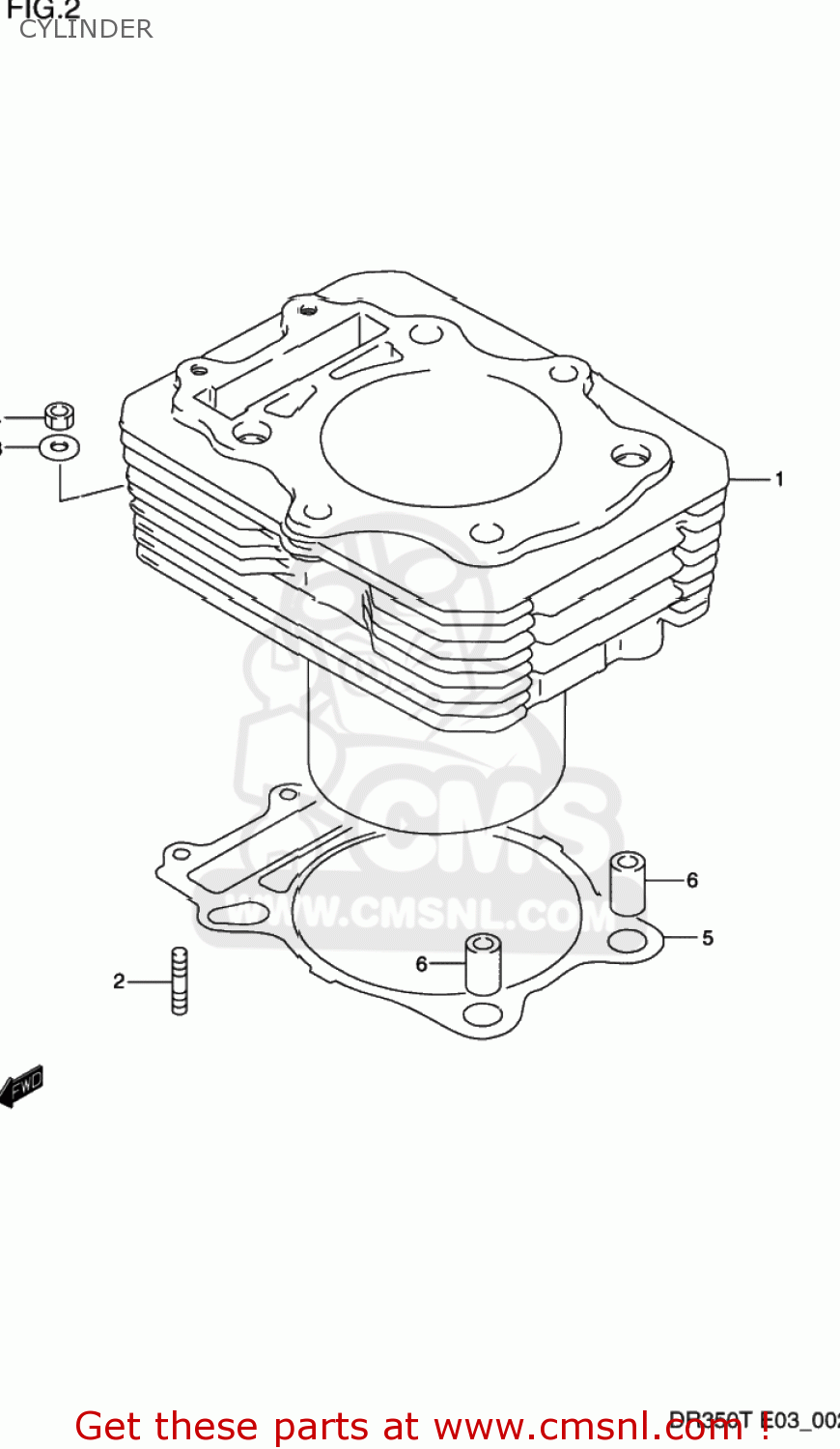

Cylinder diagram DR350 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121014D000F0
ref: 1-1
11210-47D00-0F0

CYLINDER

€ 554.50

1-2

1121014D100F0
ref: 1-2
11210-47D00-0F0

CYLINDER

€ 554.50

1-3

1121014D110F0
ref: 1-3
11210-47D00-0F0

CYLINDER

€ 554.50

1-4

1121047D000F0
ref: 1-4

CYLINDER

€ 554.50

0142106208
ref: 2
01421-0620A

STUD 6X20

€ 2.50

3-1

0832211068
ref: 3-1
08322-0106B

WASHER 6MM

€ 2.00

3-2

0832201063
ref: 3-2
08322-0106B

WASHER

€ 2.00

4-1

0914006022
ref: 4-1
09140-06502

NUT

€ 3.00

4-2

0914006502
ref: 4-2

NUT

€ 3.00

1124114D01
ref: 5

GASKET,CYLINDER (NAS)

€ 12.00

0421113189
ref: 6

PIN

€ 2.50
