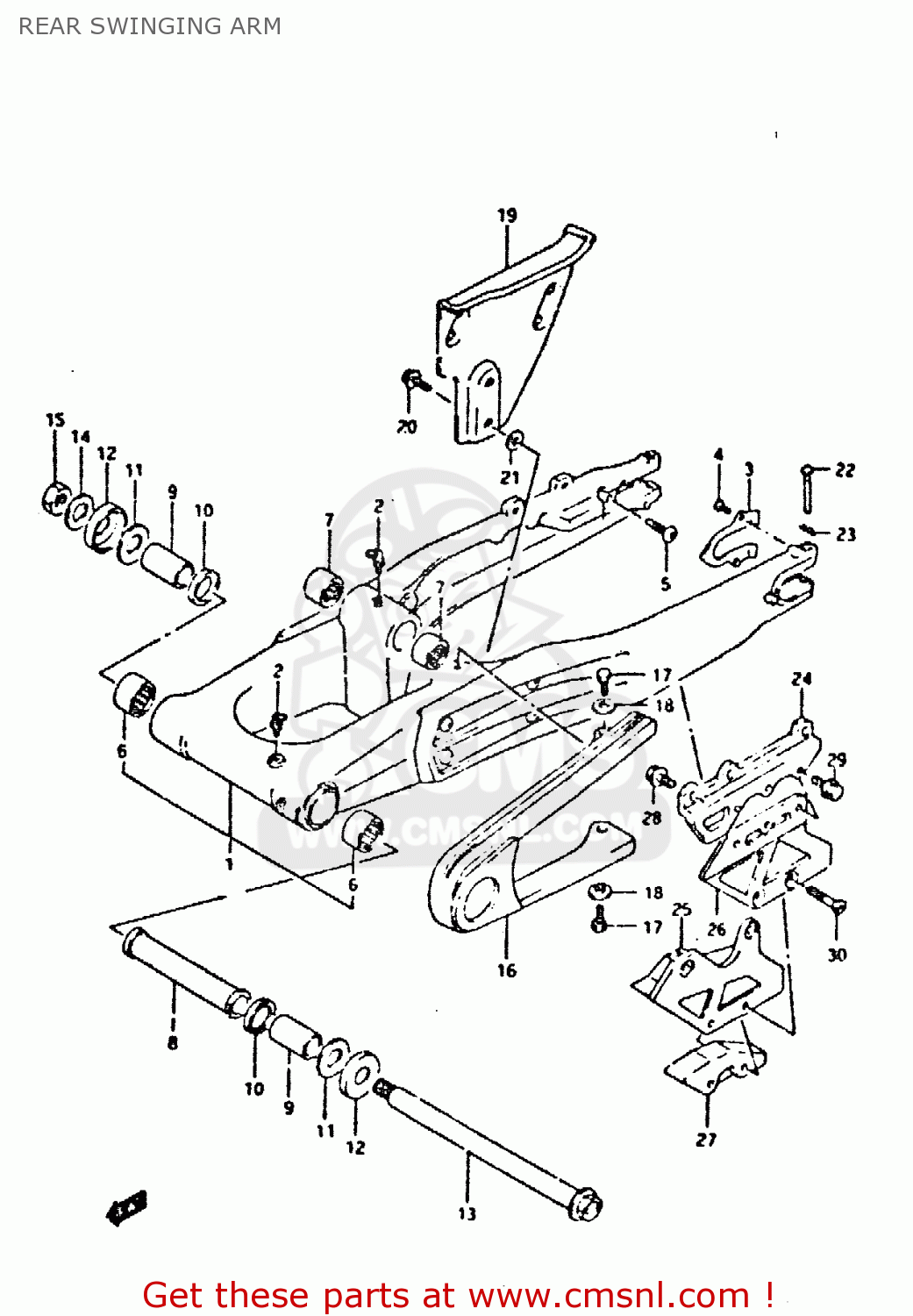

REAR SWINGING ARM

ref

part #

description

quantity

1

6100014D50
ref: 1

SWINGINGARM ASSY,RR

€ 892.50

2

0835131008
ref: 2

NIPPLE,GREASE

€ 10.50

3

6112814D00
ref: 3

PLATE,SWING ARM RR

€ 8.00

4

0912505072
ref: 4

SCREW (5X8)

€ 2.50

5

0913910001
ref: 5

SCREW (M10X21)

€ 6.50

6

0926322017
ref: 6

BEARING(22X29X30)

€ 18.50

7

0926320071
ref: 7

BEARING(20X27X23.5)

€ 21.50

8

0918017097
ref: 8

SPACER,SWING ARM PIVOT,CENTER

€ 12.50

9

6125114D00
ref: 9

SPACER,SWGARM PIVOT BRG

€ 11.00

10

0928522001
ref: 10

SEAL,OIL(22X29X4)

€ 5.00

11

0821117341
ref: 11

WASHER

€ 2.00

12

6126228C10
ref: 12

COVER,SWINGINGARM PIVOT

€ 4.50

13

6121114D00
ref: 13

SHAFT,SWINGING ARM PIVOT

€ 49.50

14

0832201163
ref: 14

WASHER, FIXED DRIVE FACE

€ 2.00

15

0915916007
ref: 15

NUT

€ 10.50

16

6127314D00
ref: 16

BUFFER,CHAIN TOUCH DEFENSE

€ 34.00

17

0150006163
ref: 17

BOLT

€ 2.00

18

0916906057
ref: 18

WASHER

€ 4.00

19

6131014D10
ref: 19

GUARD,CHAIN

€ 35.50

20

0155006163
ref: 20

BOLT

€ 2.50

21

0916006115
ref: 21

WASHER

€ 2.50

22

0920006065
ref: 22

PIN

€ 4.00

23

0938506012
ref: 23

CLIP

€ 2.00

24

6115414D10
ref: 24

BRACKET,CHAIN GUIDE

€ 37.00

25

6134127C20
ref: 25

GUIDE,CHAIN

€ 30.50

26

6134228E00
ref: 26

PLATE,CHAIN GUIDE OUTER

€ 39.00

27

6134827C20
ref: 27

DEFENSE,CHAIN GUIDE

€ 26.50

28

0155006163
ref: 28

BOLT

€ 2.50

29

0154706203
ref: 29

SCREW

€ 2.50

30

0912606013
ref: 30

SCREW(6X40)

€ 5.00

29

0151706163
ref: 29

BOLT

€ 2.50

30

0920006065
ref: 30

PIN

€ 4.00

31

0938506012
ref: 31

CLIP

€ 2.00

32

6130014D00
ref: 32
OPT, OFF ROAD USE ON

PLATE SET,CHAIN GUIDE

€ 18.50

33

0916006115
ref: 33

WASHER

€ 2.50
