FRAME COVER (MOD
DR350 1995 (S)

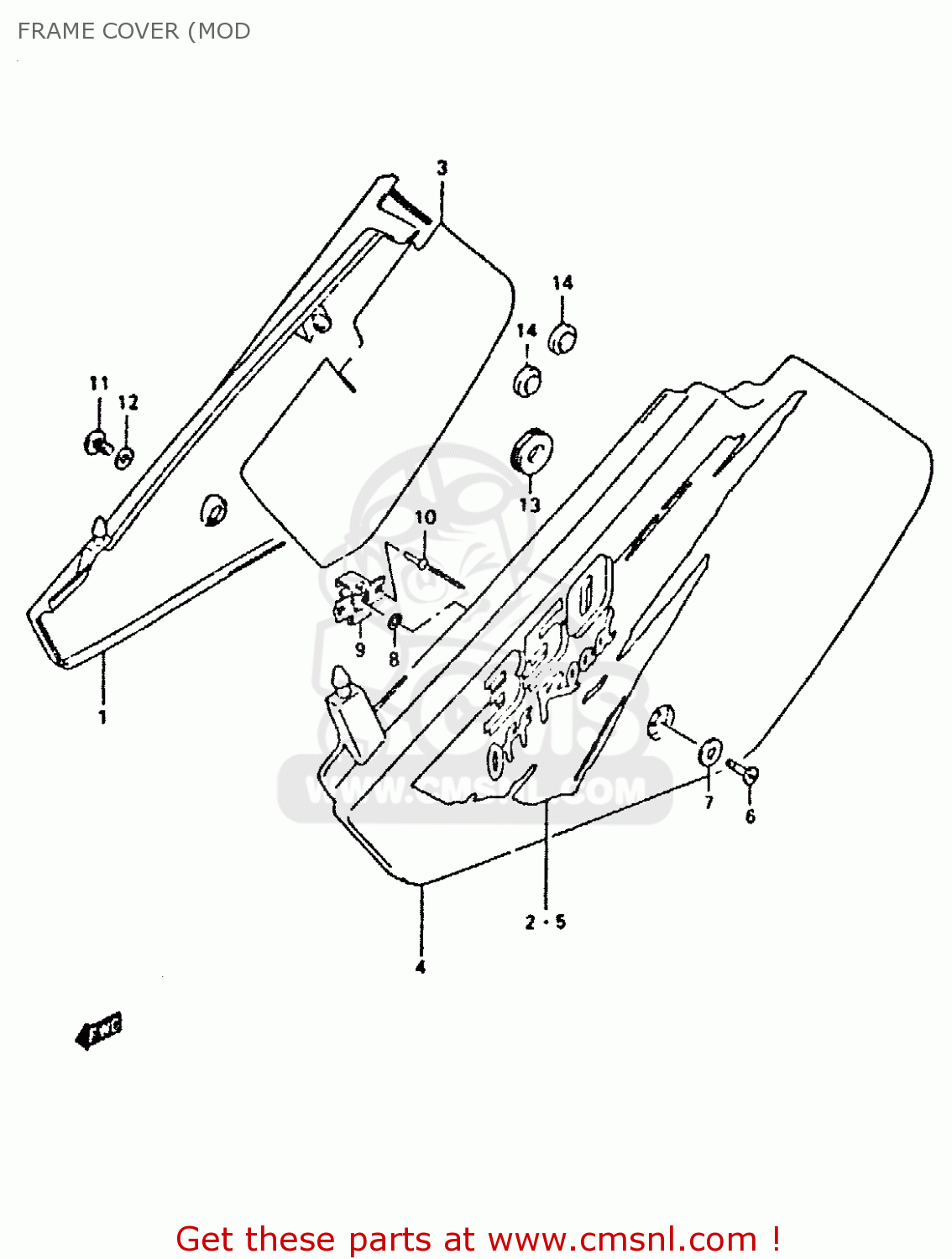

Frame cover (mod diagram DR350 1995 (S)
FRAME COVER (MOD DR350 1995 (S)
×
prices are in EUR
ref
part #
description
quantity
1
4711114D0030H
ref: 1
COVER,FRAME,R(WHITE)
€ 48.50
2
6813514E20Z65
ref: 2
TAPE,FRAME COVER,R
€ 0.00
3
4716614D00
ref: 3
SHIELD,FRAME COVER,R
€ 25.50
4
4721114D0030H
ref: 4
COVER,FRAME,L(WHITE)
€ 48.50
5
6814514E20Z65
ref: 5
TAPE,FRAME COVER,LEFT
€ 0.00
6
9447214D00
ref: 6
STUD,FRAME COVER,LEFT
€ 12.50
7
0916007015
ref: 7
WASHER
€ 2.50
8
9447314D00
ref: 8
RETAINER,FRAME COVER STUD,L
€ 2.50
9
9447412C00
ref: 9
PLATE,FITING
€ 6.50
10
0922903011
ref: 10
RIVET
€ 2.00
11
0214206167
ref: 11
SCREW
€ 2.00
12
0916906028
ref: 12
WASHER
€ 2.00
13
0932008029
ref: 13
CUSHION
€ 2.50
14
0932110018
ref: 14
CUSHION
€ 5.00
11
9447412C00
ref: 11
PLATE,FITING
€ 6.50
12
0922903011
ref: 12
RIVET
€ 2.00
13-1
0913906059
ref: 13-1
MODEL N
SCREW
€ 5.00
13-2
0913906073
ref: 13-2
MODEL P
SCREW
€ 5.00
13-3
0214206167
ref: 13-3
MODEL R/S
SCREW
€ 2.00
14
0916906028
ref: 14
WASHER
€ 2.00
15
0932008029
ref: 15
CUSHION
€ 2.50
16
0932110018
ref: 16
CUSHION
€ 5.00
