FRAME (MODEL R/S/T)
DR350SE 1996 (T) USA (E03)

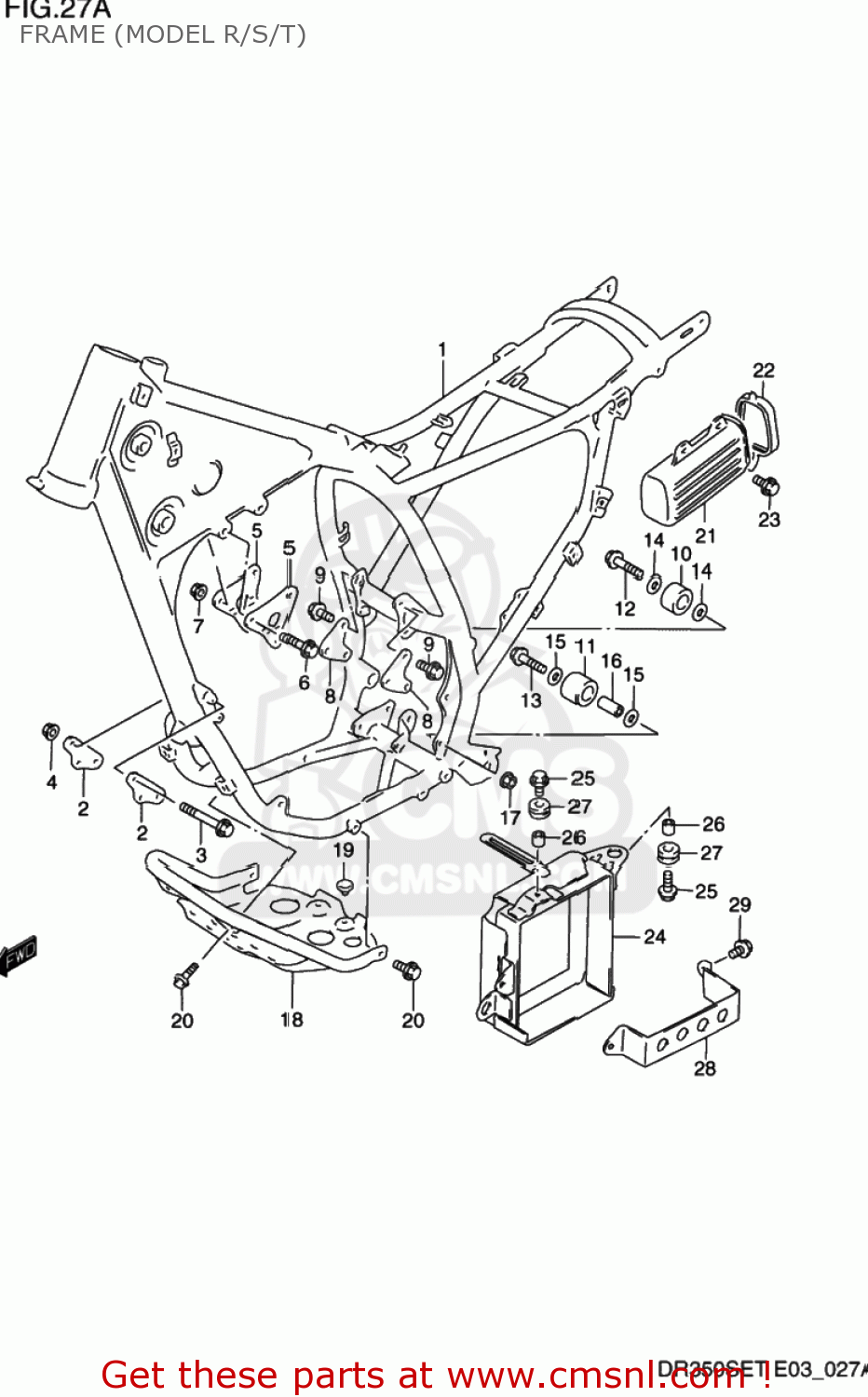

Frame (model r/s/t) diagram DR350SE 1996 (T) USA (E03)
FRAME (MODEL R/S/T) DR350SE 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110015D220NF
ref: 1-1
FRAME
€ 731.50
1-2
4110015D22Z16
ref: 1-2
FRAME COMP
€ 0.00
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
€ 21.00
3
0910308294
ref: 3
BOLT(8X85)
€ 4.50
4
0915908034
ref: 4
NUT
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
€ 30.50
6
0910308293
ref: 6
BOLT(8X70)
€ 4.50
7
0915908034
ref: 7
NUT
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
€ 21.00
9
0910308283
ref: 9
09103-08283-A05
BOLT(8X16)
€ 2.50
10
4391027C11
ref: 10
ROLLER,CHAIN
€ 36.50
11
4391101B10
ref: 11
ROLLER,CHAIN CONTROL
€ 14.50
12
0910308178
ref: 12
BOLT(8X38)
€ 5.00
13
0910308068
ref: 13
09103-08043
BOLT 8X45
€ 4.50
14
0821108221
ref: 14
WASHER
€ 2.50
15-1
0916008021
ref: 15-1
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
15-2
0821108121
ref: 15-2
WASHER
€ 2.00
16
0918008136
ref: 16
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
17
0831320083
ref: 17
08313-2008A
NUT
€ 2.50
18
4251014D1013L
ref: 18
PROTECTOR,ENGINE(SILVER)
€ 269.50
19
0932110026
ref: 19
CUSHION
€ 9.00
20
0155008123
ref: 20
01550-0812A
BOLT
€ 3.50
21
4743114D00
ref: 21
HOLDER,TOOL
€ 25.50
22
4743214D00
ref: 22
CAP,TOOL HOLDER
€ 8.50
23
0911606144
ref: 23
09116-06165
BOLT 6X16
€ 2.50
24
4154015D00
ref: 24
HOLDER,BATTERY
€ 64.50
25
0911606010
ref: 25
BOLT(6X20)
€ 2.00
26
0918006210
ref: 26
09180-06285
SPACER (6.8X10X9)
€ 2.50
27
0932010043
ref: 27
09320-10501
CUSHION
€ 5.50
28
4154215D00
ref: 28
COVER,BATTERY HOLDER
€ 14.50
29
0912806058
ref: 29
SCREW(6X10)
€ 2.00
