MAGNETO

DR350SE 1997 (V)

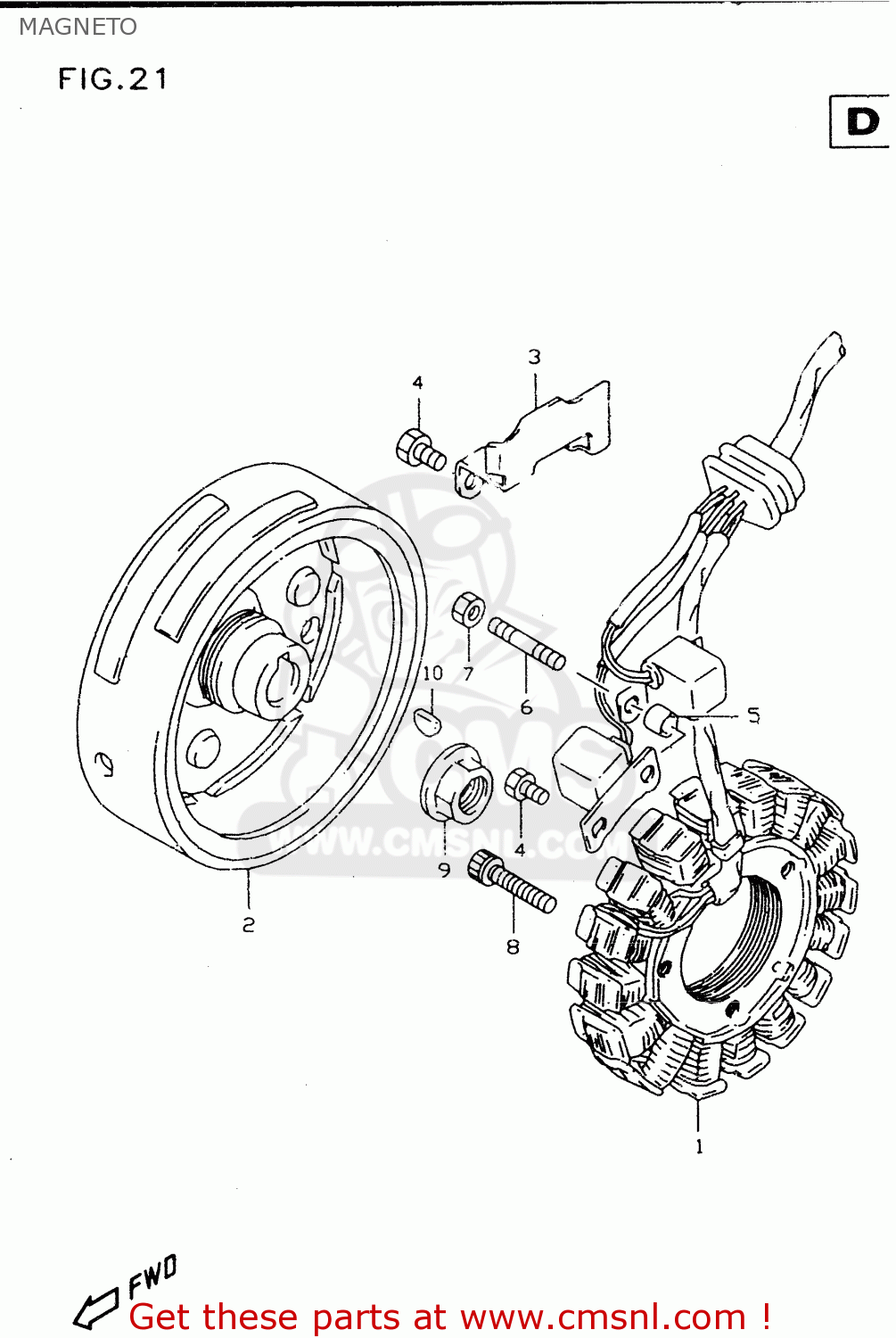

Magneto diagram DR350SE 1997 (V)

prices are in EUR

ref

part #

description

quantity

3210115D01
ref: 1

STARTER ASSY

€ 807.00

3210214D50
ref: 2

ROTOR ASSY

€ 675.50

3237115D00
ref: 3

CLAMP,MAGNETO LEAD WIRE

€ 0.00

0910005019
ref: 4

BOLT(5X10)

€ 1.50

0918005053
ref: 5
<-09180-05009

SPACER(5.5X9.5X6.5)

€ 2.00

0910805014
ref: 6

BOLT,STUD(5X18)

€ 2.00

0831000053
ref: 7

NUT

€ 2.50

0713006253
ref: 8

BOLT,CL.COVER

€ 3.00

0915914015
ref: 9

NUT

€ 3.00

10-1

0834131049
ref: 10-1
MODEL R

KEY 4MM

€ 3.50

10-2

0942004008
ref: 10-2
MODEL S/T/V/W

KEY

€ 3.50
