FOOTREST

DR500 1983 (D) USA (E03)

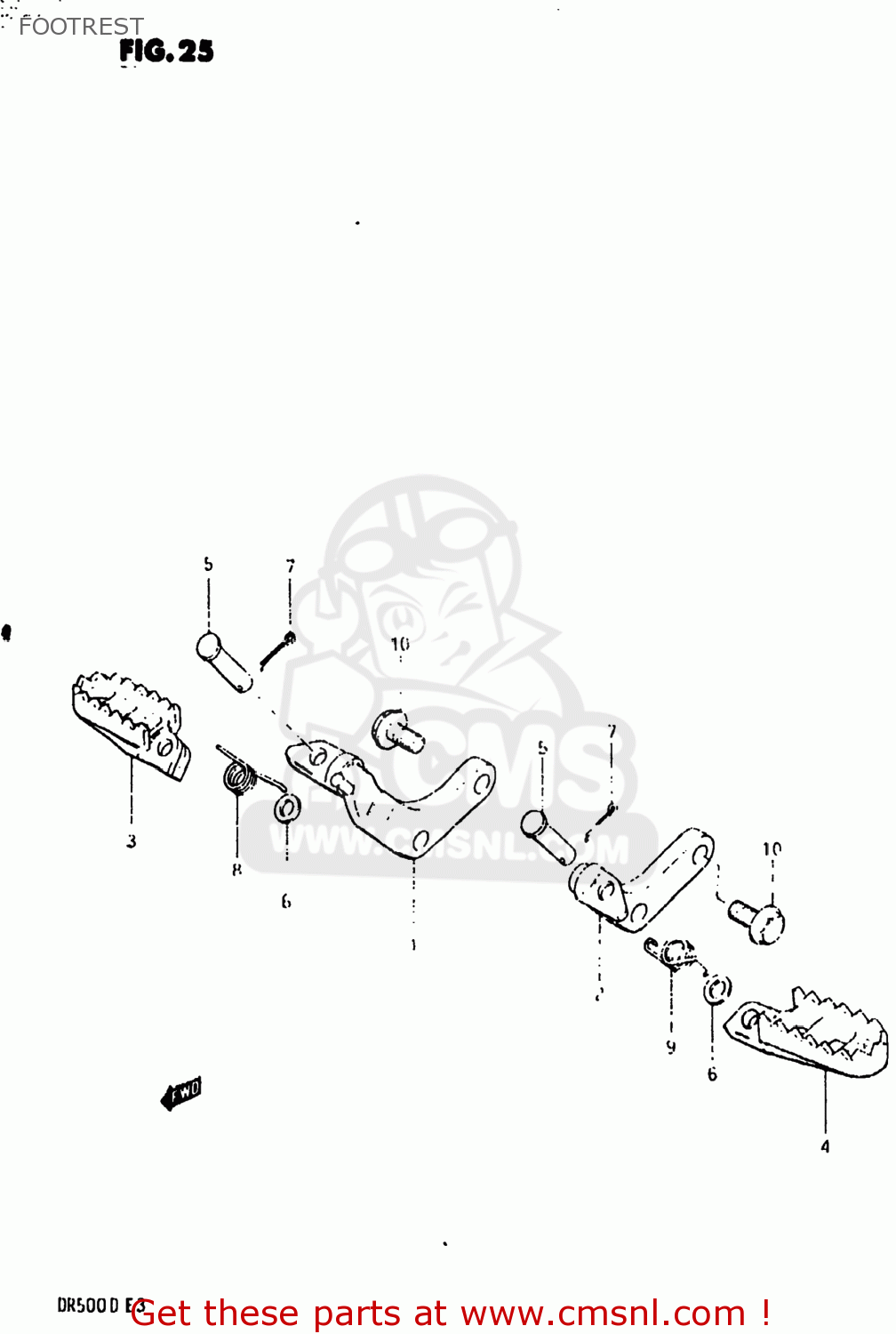

Footrest diagram DR500 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

4351037401
ref: 1
43510-37401-019

BAR,FRONT FOOTREST

€ 28.00

4352037401
ref: 2
43520-37401-019

BAR,FRONT FOOTREST,LEFT

€ 23.50

4355137202
ref: 3
43551-37202-019

FOOTREST,RIGHT

€ 31.00

4356140401
ref: 4
43561-40401-019

FOOTREST

€ 24.50

0920008035
ref: 5
09200-08064

PIN

€ 6.50

0832221088
ref: 6
08322-01087

WASHER

€ 2.00

0411120208
ref: 7
04111-2020A

PIN 20X20

€ 1.50

0944814022
ref: 8

SPRING

€ 2.00

0944814019
ref: 9

SPRING

€ 2.50

0910310037
ref: 10

BOLT(10X25)

€ 4.00

all assemblies
