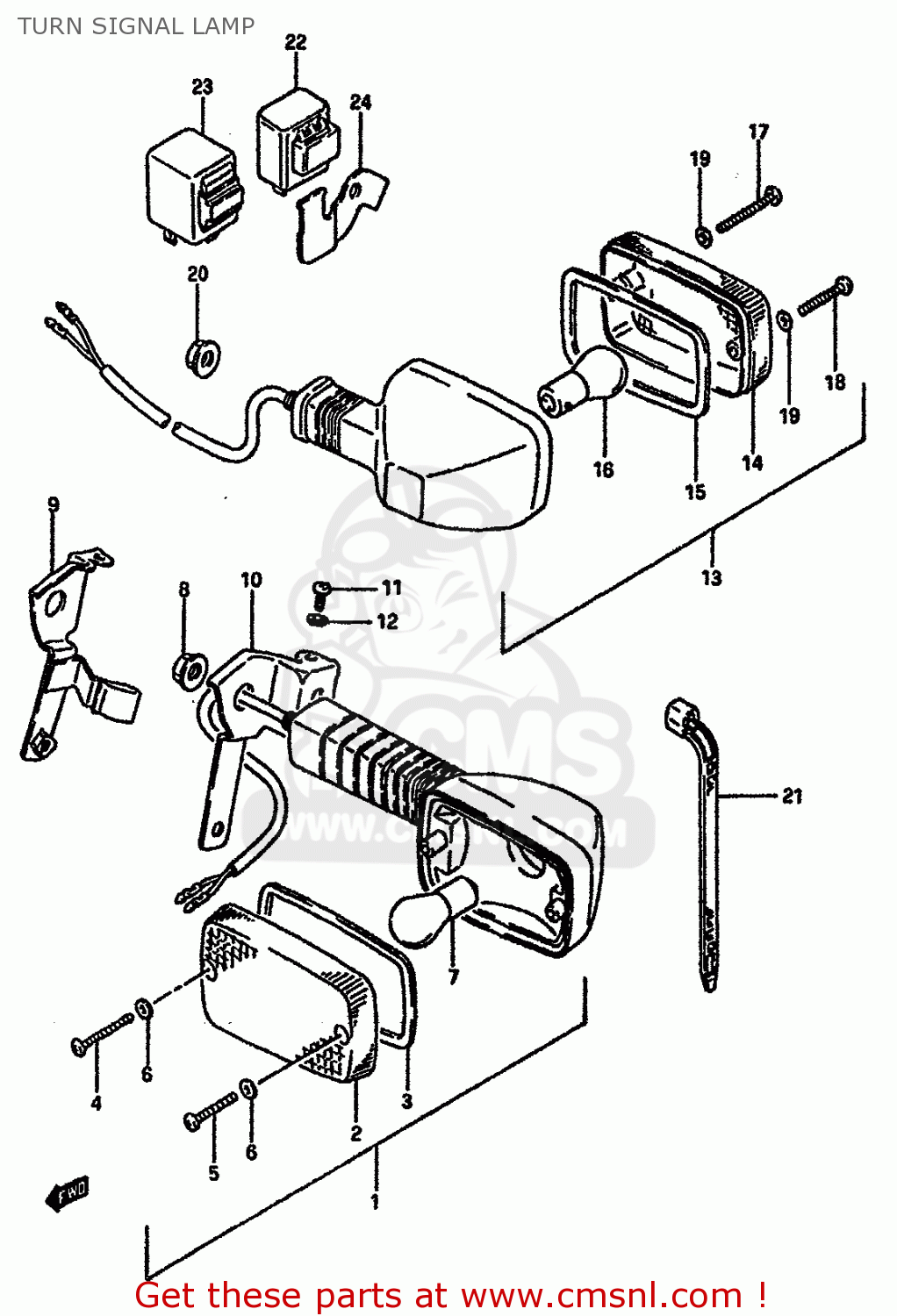

TURN SIGNAL LAMP

ref

part #

description

quantity

1-1

3560114A23999
ref: 1-1
MODEL F/G E2

LAMP ASSY,FR

€ 120.50

1-2

3560114A53999
ref: 1-2
MODEL H/J/K E2

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 127.50

1-3

3560114A23999
ref: 1-3
E1,E4,E6,E24

LAMP ASSY,FR

€ 120.50

1-4

3560114A53999
ref: 1-4
E15,E16,E17,E18,E21,

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 127.50

2

3561202181
ref: 2

LENS,FR

€ 9.00

3

3561348700
ref: 3

GASKET (NAS)

€ 7.50

4

3562302180
ref: 4

SCREW,TURN SIG LENS FITTING

€ 2.00

5

0321104308
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7-1

0947112006
ref: 7-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

7-2

0947112045
ref: 7-2
E2,E4,E15,E16,E17,E1

BULB(12V21W)

€ 5.00

8

0831626105
ref: 8

NUT

€ 3.50

9

3567014A00
ref: 9

BRACKET,FRONT TURN SIGNAL

€ 12.50

10

3568014A00
ref: 10

BRACKET,FRONT TURN SIGNAL

€ 9.00

11

0211205105
ref: 11

SCREW

€ 2.00

12

0832121055
ref: 12

WASHER,LOCK

€ 3.00

13-1

3560314A22999
ref: 13-1
E1,E2,E4,E6,E17,E21,

LAMP ASSY, REAR TURN SIGNAL

€ 93.50

13-2

3560314A52
ref: 13-2
E15,E16,E18,E22,E39

LAMP ASSY,RR

€ 71.50

14

3565202181
ref: 14

LENS,RR

€ 8.50

15

3561348700
ref: 15

GASKET (NAS)

€ 7.50

16-1

0947112006
ref: 16-1
E1,E6,E24

BULB(12V23W,STANLEY,A4577A)

€ 4.00

16-2

0947112045
ref: 16-2
E2,E4,E15,E16,E17,E1

BULB(12V21W)

€ 5.00

17

3562302180
ref: 17

SCREW,TURN SIG LENS FITTING

€ 2.00

18

0321104308
ref: 18

SCREW

€ 1.50

19

3562743010
ref: 19

GASKET (NAS)

€ 2.00

20

0831626105
ref: 20

NUT

€ 3.50

21

0940714403
ref: 21

CLAMP(L:125)

€ 2.50

22

3861031310
ref: 22

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

23

3861045091
ref: 23
E22,MODEL G/H E2

RELAY ASSY,TUR

€ 67.50

24

3862114A00
ref: 24

BRACKET,TURN SIGNAL RELAY

€ 3.00

all assemblies
