CYLINDER HEAD
DR650RE 1994 (R) (E02 E04 E17 E18)

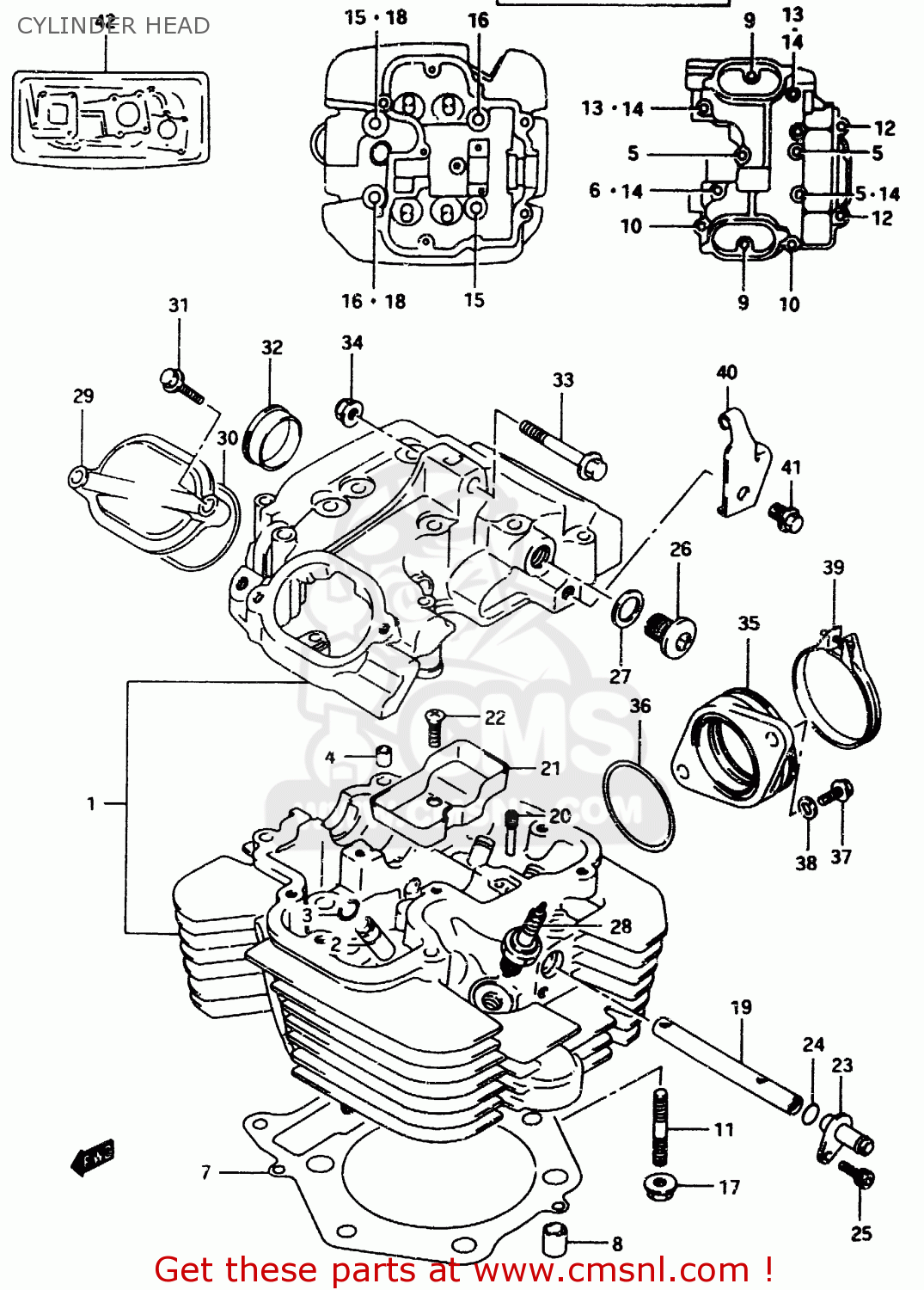

Cylinder head diagram DR650RE 1994 (R) (E02 E04 E17 E18)
CYLINDER HEAD DR650RE 1994 (R) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
1
1110012D80
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 960.50
1
1110012D90
ref: 1
E18
HEAD ASSY, CYLINDER
€ 960.50
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0155006603
ref: 5
BOLT
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
€ 7.00
7
1114112D00
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 44.50
8
0421113189
ref: 8
PIN
€ 2.50
9
0155006253
ref: 9
BOLT
€ 2.50
10
0155006403
ref: 10
BOLT
€ 2.00
11
0910808220
ref: 11
BOLT,STUD
€ 3.50
12
0910306085
ref: 12
BOLT(6X130)
€ 4.50
13
0155006603
ref: 13
BOLT
€ 2.50
14
0916806028
ref: 14
GASKET (NAS)
€ 2.00
15
0910310179
ref: 15
BOLT(10X190)
€ 12.50
16
0910310181
ref: 16
BOLT(10X215)
€ 17.50
17
0831610083
ref: 17
NUT
€ 3.00
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
€ 3.50
19
1113112D00
ref: 19
PIPE,CYLINDER HEAD OIL
€ 12.00
20
0913406012
ref: 20
SCREW (L:19.5)
€ 3.00
21
1113512D00
ref: 21
PLATE,CYLINDER HEAD CHAMBER
€ 3.50
22
0211206103
ref: 22
SCREW
€ 1.50
23
1119012D01
ref: 23
UNION,CYLINDER HEAD OIL
€ 16.50
24
1114306B00
ref: 24
O RING,HEAD GASKET
€ 8.00
25
0713006163
ref: 25
BOLT,OIL FILLE
€ 3.00
26
0924814010
ref: 26
PLUG
€ 5.00
27
0916814002
ref: 27
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
28
0948200330
ref: 28
PLUG,SPARK(DPR9EA-9)
€ 4.00
28
0948200331111
ref: 28
SPARK PLUG X27EPR-U9
€ 4.00
29
1117512D10
ref: 29
CAP,INSPECTION
€ 16.00
30
0928060004
ref: 30
O RING(D:2.4,ID:23)
€ 4.50
31
0155006203
ref: 31
BOLT
€ 2.50
32
0924130004
ref: 32
PLUG(OD:30)
€ 6.50
33
0910308289
ref: 33
BOLT(8X50)
€ 5.00
34
0831931085
ref: 34
NUT
€ 2.50
35
1311012D00
ref: 35
PIPE,INTAKE
€ 32.50
36
0928046002
ref: 36
O RING(D:2.4,ID:45.7)
€ 9.50
37
0712006203
ref: 37
BOLT
€ 3.50
38
0832101063
ref: 38
LOCK WASHER
€ 2.00
39
0940258208
ref: 39
CLAMP
€ 5.50
40
1294412D00
ref: 40
HOLDER,DECOMP CABLE
€ 8.50
41
0910308308
ref: 41
BOLT 8X16
€ 2.50
42
1140012895
ref: 42
GASKET SET (NAS)
€ 146.50
