STEERING STEM
DR650RSEU 1991 (M) GERMANY (E22)

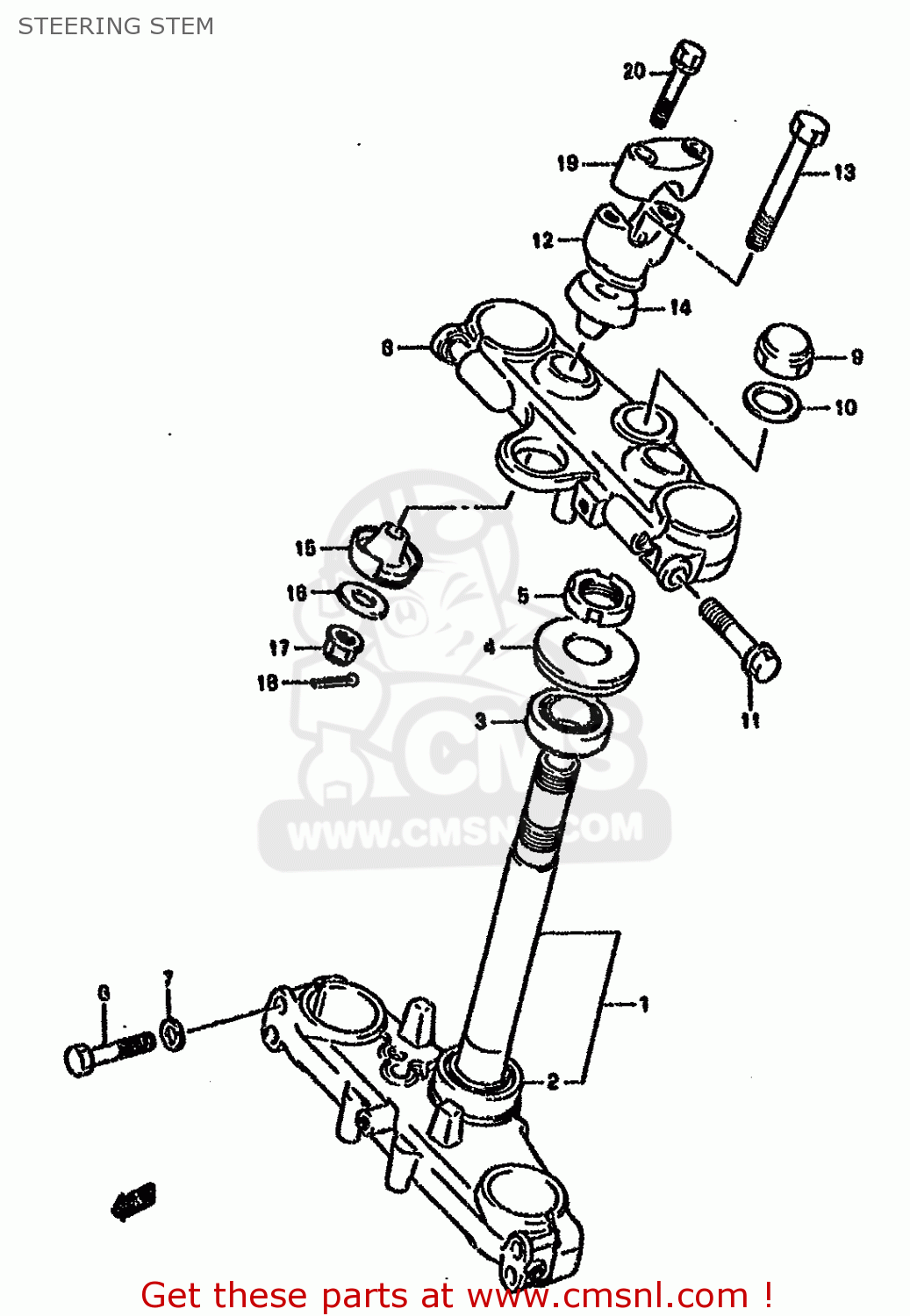

Steering stem diagram DR650RSEU 1991 (M) GERMANY (E22)
STEERING STEM DR650RSEU 1991 (M) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5141012D00
ref: 1
STEM,STEERING
€ 375.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
0926525008
ref: 3
TAPER,ROLLER BEARING
€ 48.50
4
5164340200
ref: 4
SEAL,STEERING UPR DUST
€ 7.50
5
5163140200
ref: 5
NUT,STEERING STEM
€ 12.00
6
0150008453
ref: 6
BOLT
€ 2.50
7
0832101083
ref: 7
LOCK WASHER
€ 2.50
8
5131112D00
ref: 8
BRACKET,UPPER
€ 250.50
9
5135324B00
ref: 9
NUT,CAP
€ 21.50
10-1
5135627A00
ref: 10-1
MODEL M/N/P
WASHER,STEERING STEM
€ 3.00
10-2
5135624B01
ref: 10-2
MODEL R/S/T
WASHER(22.5X32X1.6)
€ 3.00
11-1
0151710455
ref: 11-1
MODEL M/N/P/R
BOLT
€ 3.00
11-2
0155010453
ref: 11-2
MODEL S/T
BOLT
€ 3.00
12
5622114330291
ref: 12
HOLDER,HANDLE LWR
€ 25.50
13-1
5132114200
ref: 13-1
MODEL M/N/P
BOLT,HANDLE HOLDER
€ 6.50
13-2
5632128C00
ref: 13-2
MODEL R/S/T
BOLT
€ 6.50
14
5624114A00
ref: 14
DAMPER,UPR
€ 25.00
15
5624214200
ref: 15
DAMPER,LWR
€ 21.50
16
5135640400
ref: 16
WASHER,HANDLEBAR HOLDER
€ 2.00
17
0831931107
ref: 17
NUT
€ 3.00
18
0411120308
ref: 18
COTTER PIN
€ 1.00
19
5621127200291
ref: 19
HOLDER,HANDLE UPR
€ 13.50
20-1
0114708355
ref: 20-1
MODEL M/N/P/R
BOLT
€ 2.00
20-2
0157008353
ref: 20-2
MODEL S/T
BOLT
€ 2.00
