OIL PUMP
DR650RSEU 1994 (R) GERMANY (E22)

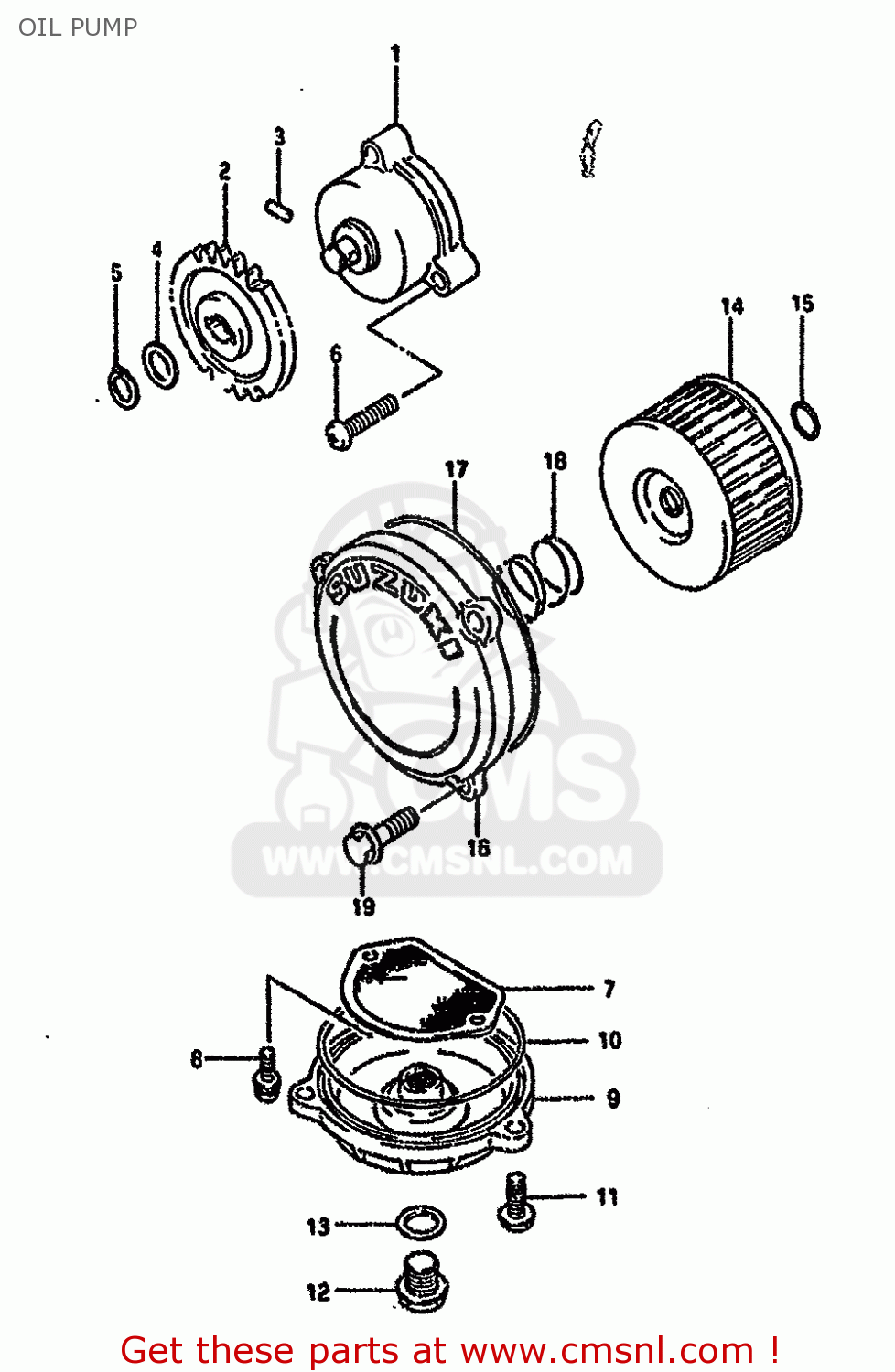

Oil pump diagram DR650RSEU 1994 (R) GERMANY (E22)
OIL PUMP DR650RSEU 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1640012D00
ref: 1
PUMP ASSY,ENGINE OIL
€ 156.50
2
1633112D10
ref: 2
GEAR,OIL PUMP DRIVEN
€ 23.50
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
CIRCLIP,10MM
€ 2.00
6-1
0211206257
ref: 6-1
MODEL M/N/P
SCREW
€ 2.00
6-2
0211206253
ref: 6-2
MODEL R/S/T
SCREW
€ 1.50
7
1652014A00
ref: 7
STRAINER,ENGINE OIL
€ 8.50
8
0211275123
ref: 8
SCREW
€ 2.50
9
1652337402
ref: 9
CAP,OIL STRAINER
€ 56.00
10
0928082001
ref: 10
O RING(D:2.4,ID:85)
€ 6.50
11-1
0155006207
ref: 11-1
MODEL M/N/P
BOLT
€ 2.50
11-2
0155006203
ref: 11-2
MODEL R/S/T
BOLT
€ 2.50
12
0924714001
ref: 12
PLUG
€ 5.00
13-1
0916814004
ref: 13-1
MODEL M/N/P
GASKET(14X19.2X2) (NAS)
€ 2.50
13-2
0916814002
ref: 13-2
MODEL R/S/T
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
14
1651037440
ref: 14
FILTER,ENGINE OIL
€ 7.50
15-1
0928016005
ref: 15-1
MODEL M/N/P/R
O RING(D:2.4,ID:15.8)
€ 1.50
15-2
0928015007
ref: 15-2
MODEL S/T
O RING(D:2.4,ID:15.8)
€ 2.00
16-1
1651212D00
ref: 16-1
MODEL M/N
CAP,OIL FILTER
€ 17.50
16-2
1651212E00
ref: 16-2
MODEL P/R/S/T
CAP,OIL FILTER
€ 26.00
17
0928072001
ref: 17
O RING(D:2.4,ID:73)
€ 5.00
18-1
0944021004
ref: 18-1
MODEL M/N/P/R
SPRING
€ 13.00
18-2
0944021006
ref: 18-2
MODEL S/T
SPRING
€ 2.50
19-1
0154706165
ref: 19-1
MODEL M/N/P
BOLT
€ 2.50
19-2
0154706167
ref: 19-2
MODEL R/S/T
BOLT
€ 2.00
