BATTERY
DR650SE 2002 (K2) USA (E03)

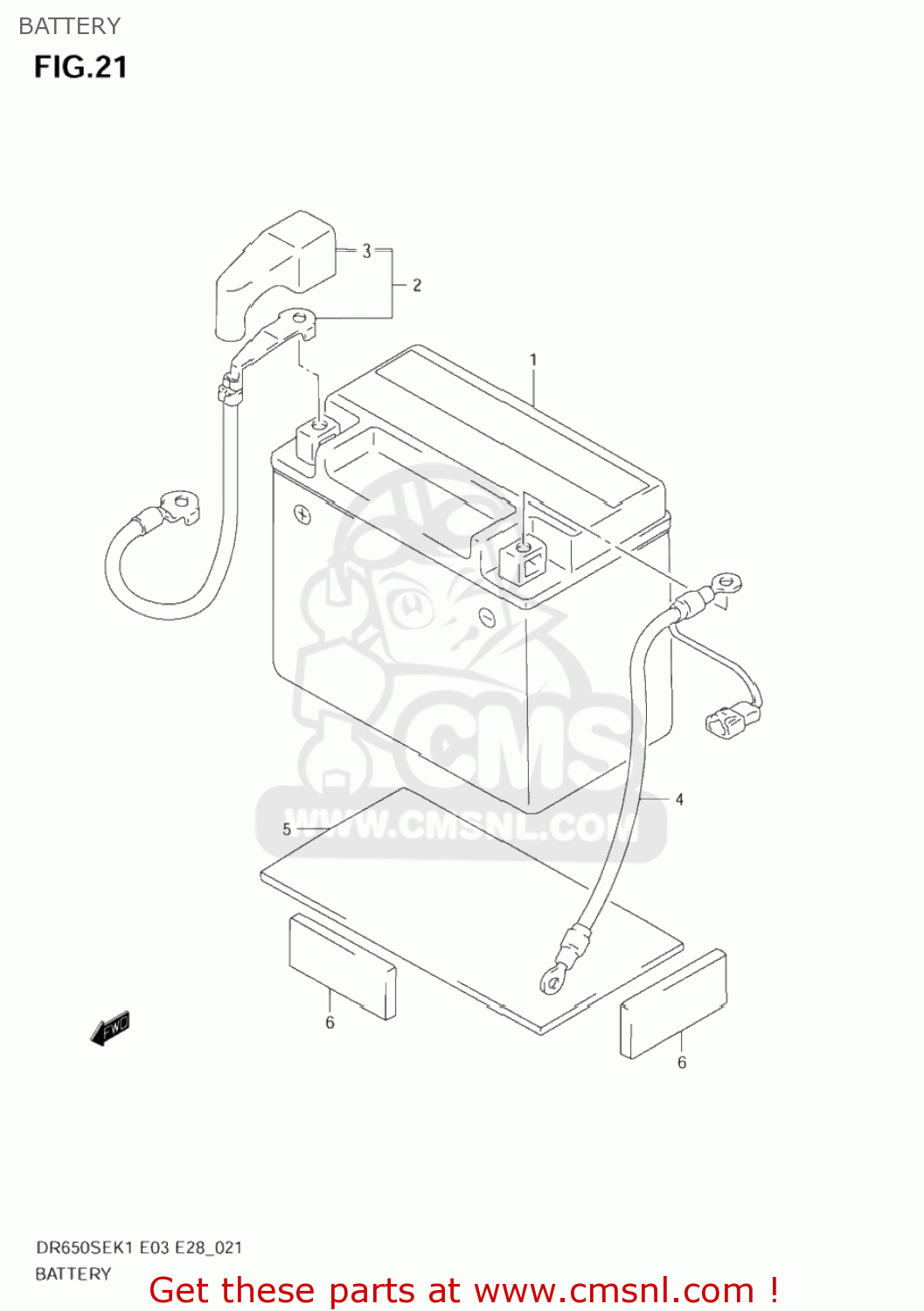

Battery diagram DR650SE 2002 (K2) USA (E03)
BATTERY DR650SE 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361032C10
ref: 1
33610-33E20
BATTERY ASSY(YTX9-BS,12V8AH)
€ 108.50
2
3382032E00
ref: 2
WIRE,BATTERY PLUS
€ 15.00
3
3362432E00
ref: 3
CAP,BATTERY PLUS TERMINAL
€ 4.50
4
3386032E00
ref: 4
WIRE,BATTERY MINUS
€ 12.50
5
3365137000
ref: 5
PROTECTOR(170X95X3.0)
€ 5.00
5
3365137000
ref: 5
PROTECTOR(170X95X3.0)
€ 5.00
6
3365228000
ref: 6
33651-37000
CUSHION 20X45X6
€ 6.00
