HANDLE SWITCH

DR650SE 2009 (K9) USA (E03)

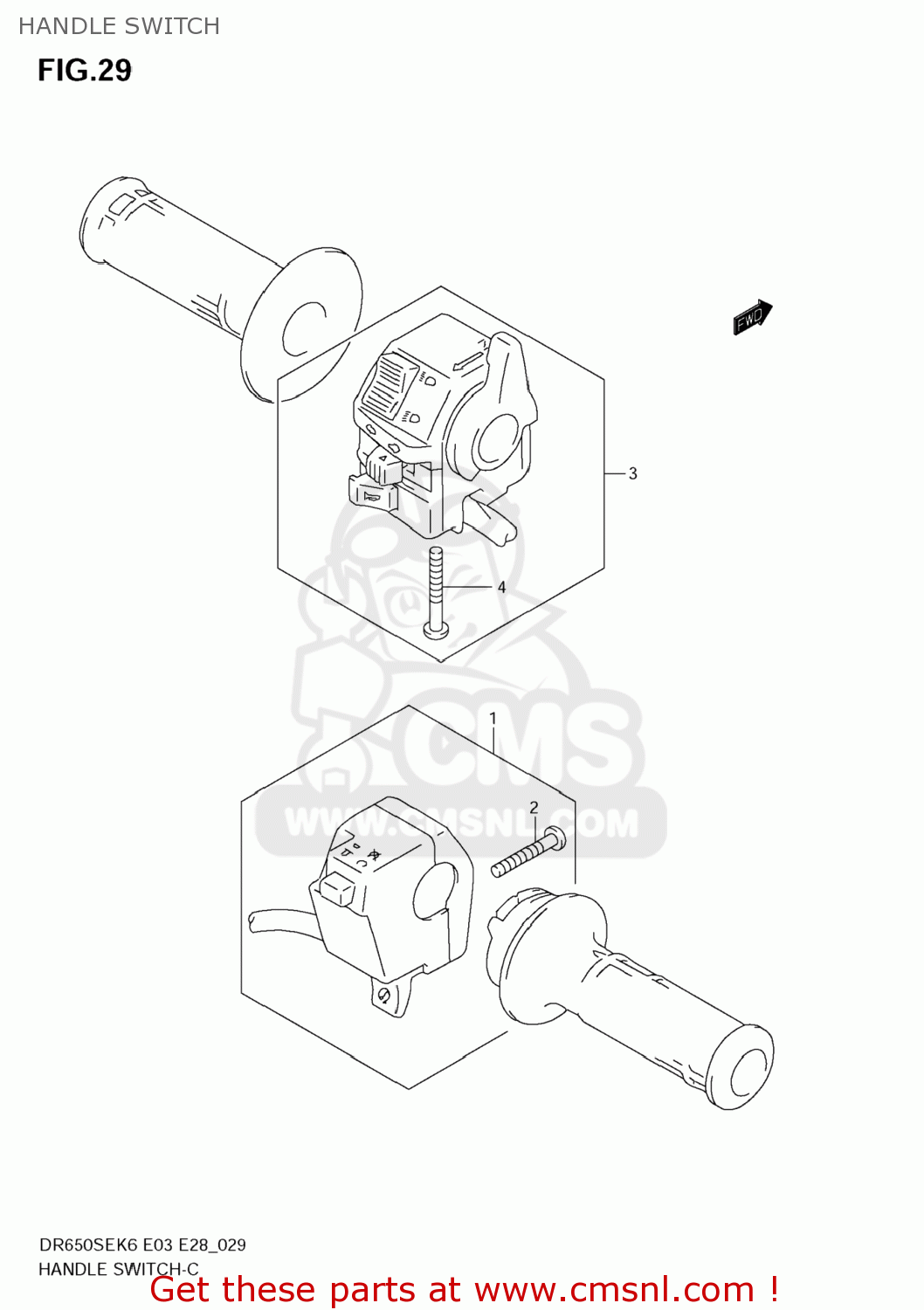

Handle switch diagram DR650SE 2009 (K9) USA (E03)

HANDLE SWITCH DR650SE 2009 (K9) USA (E03)
HANDLE SWITCH DR650SE 2009 (K9) USA (E03)
HANDLE SWITCH DR650SE 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3720032E30
ref: 1
SWITCH ASSY,HANDLE,R
€ 81.00
2
0912505066
ref: 2
SCREW(5X25)
0912505066
€ 2.00
3
3740032E10
ref: 3
SWITCH ASSY,HANDLE,L
€ 0.00
4
0211205455
ref: 4
02112-0545B
SCREW, 5X45
0211205455
€ 4.00
