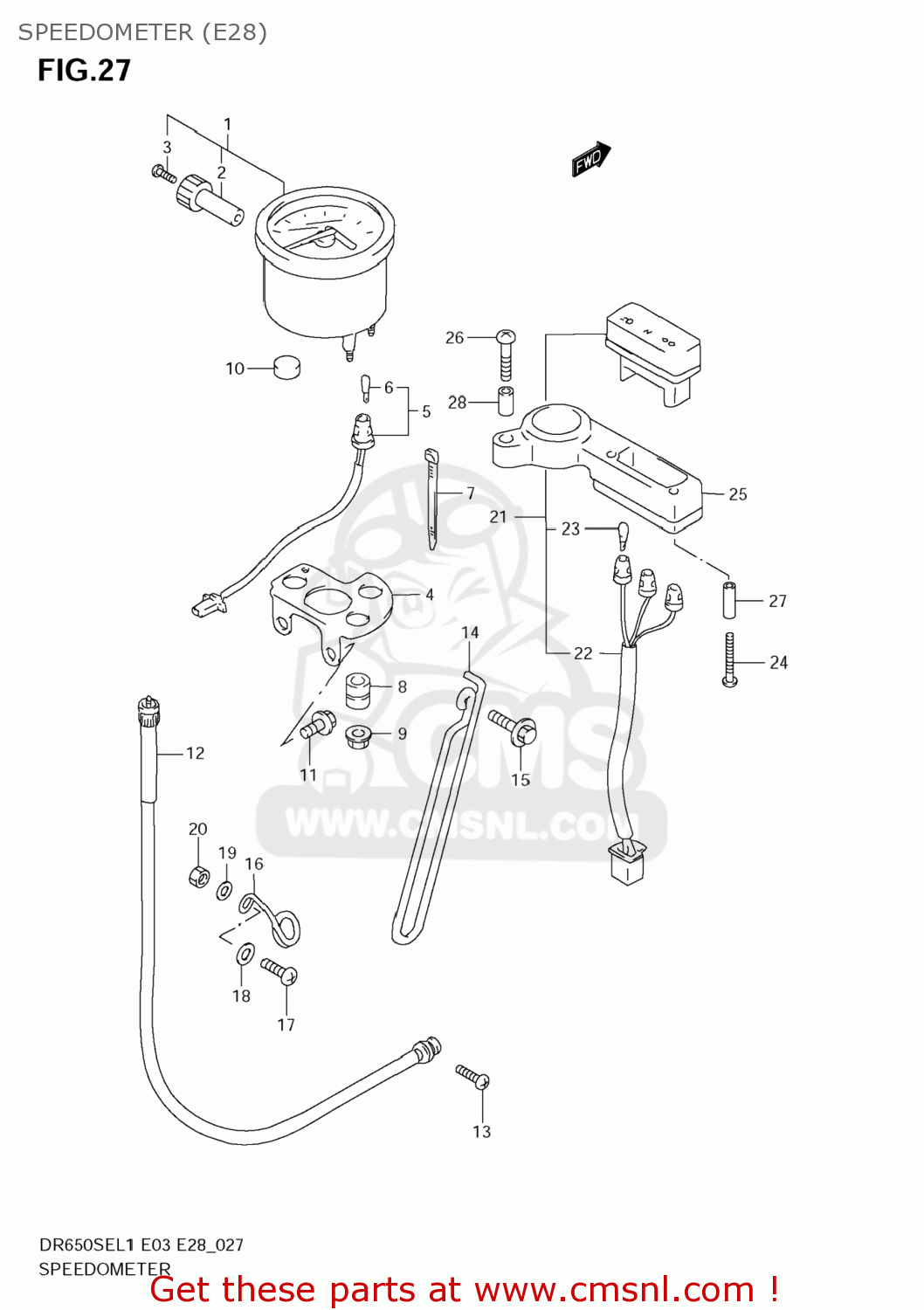

SPEEDOMETER (E28)

ref

part #

description

quantity

1

3412032E20
ref: 1

SPEEDOMETER

€ 0.00

2

3412444B30
ref: 2

KNOB,TRIP

€ 7.00

3

3418412D00
ref: 3

SCREW,TRIP KNOB

€ 2.00

4

3495032E10
ref: 4

BRACKET,METER

€ 22.00

5

3417015D21
ref: 5

SOCKET

€ 15.00

6

0947112108
ref: 6

BULB(12V1.7W,T6.5)

€ 2.00

7

3495442A90
ref: 7

CLAMP

€ 3.50

8

3418930921
ref: 8

CUSHION

€ 3.00

9

0915906076
ref: 9

NUT

€ 3.00

10

3416742A90
ref: 10

CUSHION

€ 7.00

11

015500612B
ref: 11

BOLT

€ 2.50

12

3491032E00
ref: 12

CABLE ASSY,SPEEDOMETER

€ 29.00

13

021120516B
ref: 13

SCREW

€ 2.00

14

3493814D30
ref: 14

GUIDE,METER CABLE NO.2

€ 8.00

15

0911606167
ref: 15

BOLT(6X20)

€ 2.00

16

3493814D21
ref: 16

GUIDE,SPEEDOMETER CABLE

€ 6.50

17

021420616B
ref: 17

SCREW

€ 1.50

18

0916006109
ref: 18

WASHER(6.5X18X1.6)

€ 2.00

19

0916906053
ref: 19

WASHER

€ 2.00

20

083100006B
ref: 20

NUT

€ 2.00

21

3638032E10
ref: 21

BOX ASSY,PILOT LAMP

€ 80.00

22

3639432E00
ref: 22

SOCKET & CORD

€ 26.50

23

0947112118
ref: 23

BULB(13.5V,2W,A7427)

€ 2.00

24

035111435B
ref: 24

SCREW

€ 2.00

25

3638232E00
ref: 25

HOLDER,PILOT BOX

€ 12.00

26

0913906029
ref: 26

SCREW(6X25)

€ 5.00

27

0918004024
ref: 27

SPACER(4.5X6.5X25)

€ 3.50

28

0918006251
ref: 28

SPACER(6.1X8X15.5)

€ 2.00
