FOOTREST
DR800SU 1994 (R) GERMANY (E22)

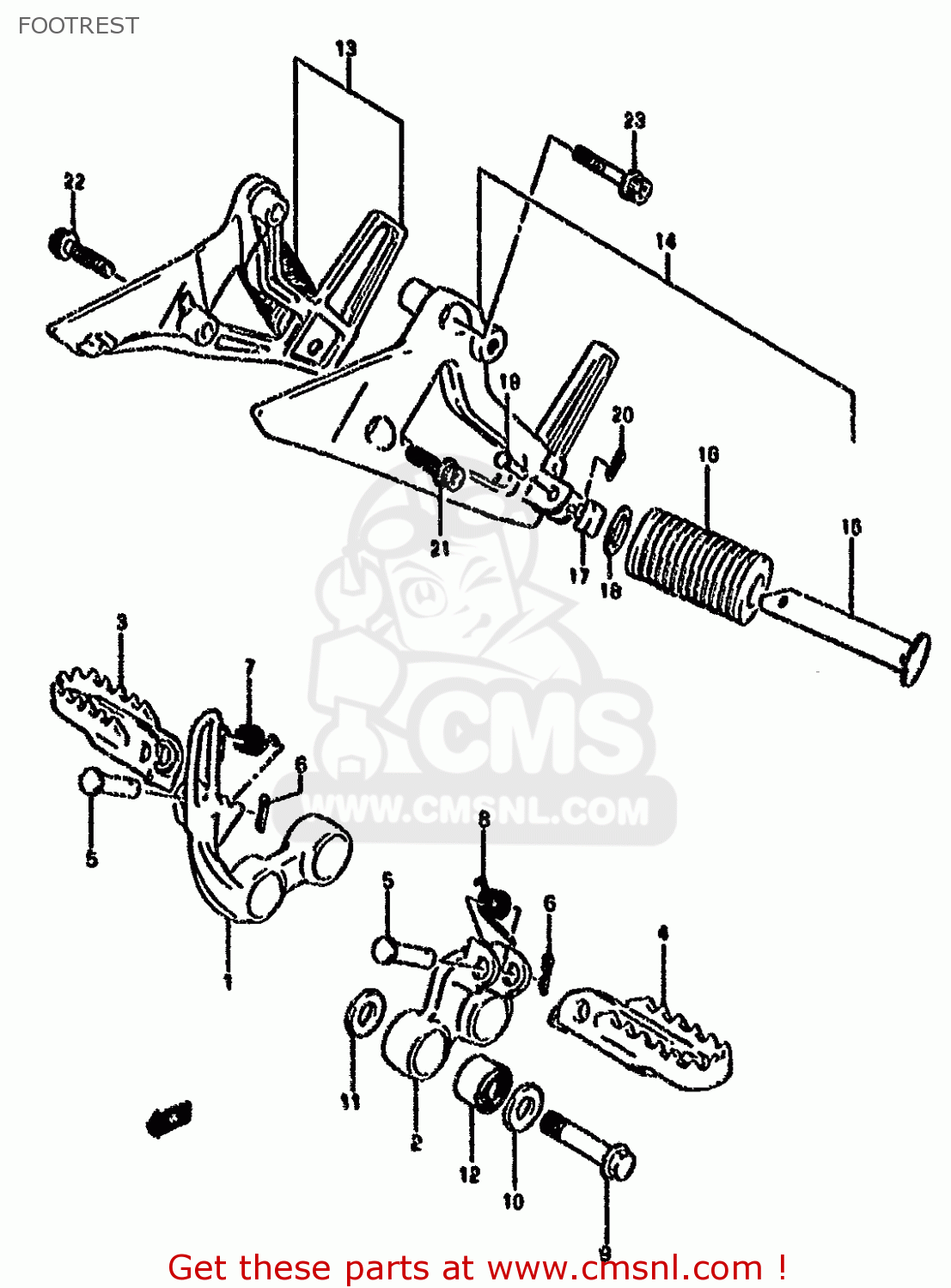

Footrest diagram DR800SU 1994 (R) GERMANY (E22)
FOOTREST DR800SU 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4351044B10019
ref: 1
BRACKET,FR FOOTREST,R
€ 142.50
2
4352044B10019
ref: 2
BAR, FOOTREST LH (BLACK)
€ 32.50
3
4355044B10019
ref: 3
FOOTREST,FR,R
€ 52.50
4
4356044B10019
ref: 4
FOOTREST,FR,L
€ 27.00
5
0920010008
ref: 5
PIN
€ 3.00
6
0411120208
ref: 6
PIN 20X20
€ 1.50
7
0944815008
ref: 7
SPRING
€ 2.50
8
0944815004
ref: 8
SPRING
€ 2.50
9
0910310255
ref: 9
BOLT(10X57)
€ 8.00
10-1
0916010118
ref: 10-1
MODEL M/N/P/R
WASHER
€ 2.00
10-2
0916010503
ref: 10-2
MODEL S/T
WASHER (10.6X25X3.2)
€ 2.00
11
0916010059
ref: 11
WASHER
€ 2.50
12
0931910065
ref: 12
BUSH
€ 15.00
13-1
4360031D0013L
ref: 13-1
MODEL M
FOOTREST,PILLION RH (SILVER)
€ 205.50
13-2
4360031D0113L
ref: 13-2
MODEL N/P/R/S/T
FOOTREST ASSY,PILLION,R
€ 205.50
14-1
4370031D0013L
ref: 14-1
MODEL M
FOOTREST,PILLION LH (SILVER)
€ 211.00
14-2
4370031D0113L
ref: 14-2
MODEL N/P/R/S/T
FOOTREST ASSY,PILLION,L
€ 211.00
15-1
4361031D00
ref: 15-1
MODEL M
BAR,PILLION FOOTREST
€ 49.00
15-2
4361031D01
ref: 15-2
MODEL N/P/R/S/T
BAR,PILLION FOOTREST
€ 49.00
16
4361244B00
ref: 16
RUBBER,PILLION FOOTREST
€ 14.00
17
4365031D00
ref: 17
MODEL M
CUSHION
€ 5.50
18
0916019006
ref: 18
WASHER (19.5X32X2)
€ 2.00
19
0920006041
ref: 19
PIN
€ 3.00
20
0411120158
ref: 20
PIN
€ 1.50
21
0910608120
ref: 21
BOLT
€ 3.50
22
0910608121
ref: 22
BOLT(8X30)
€ 3.50
23
0910608122
ref: 23
BOLT(8X40)
€ 3.00
