MUFFLER (DS100C
DS100 1978 (C) USA (E03)

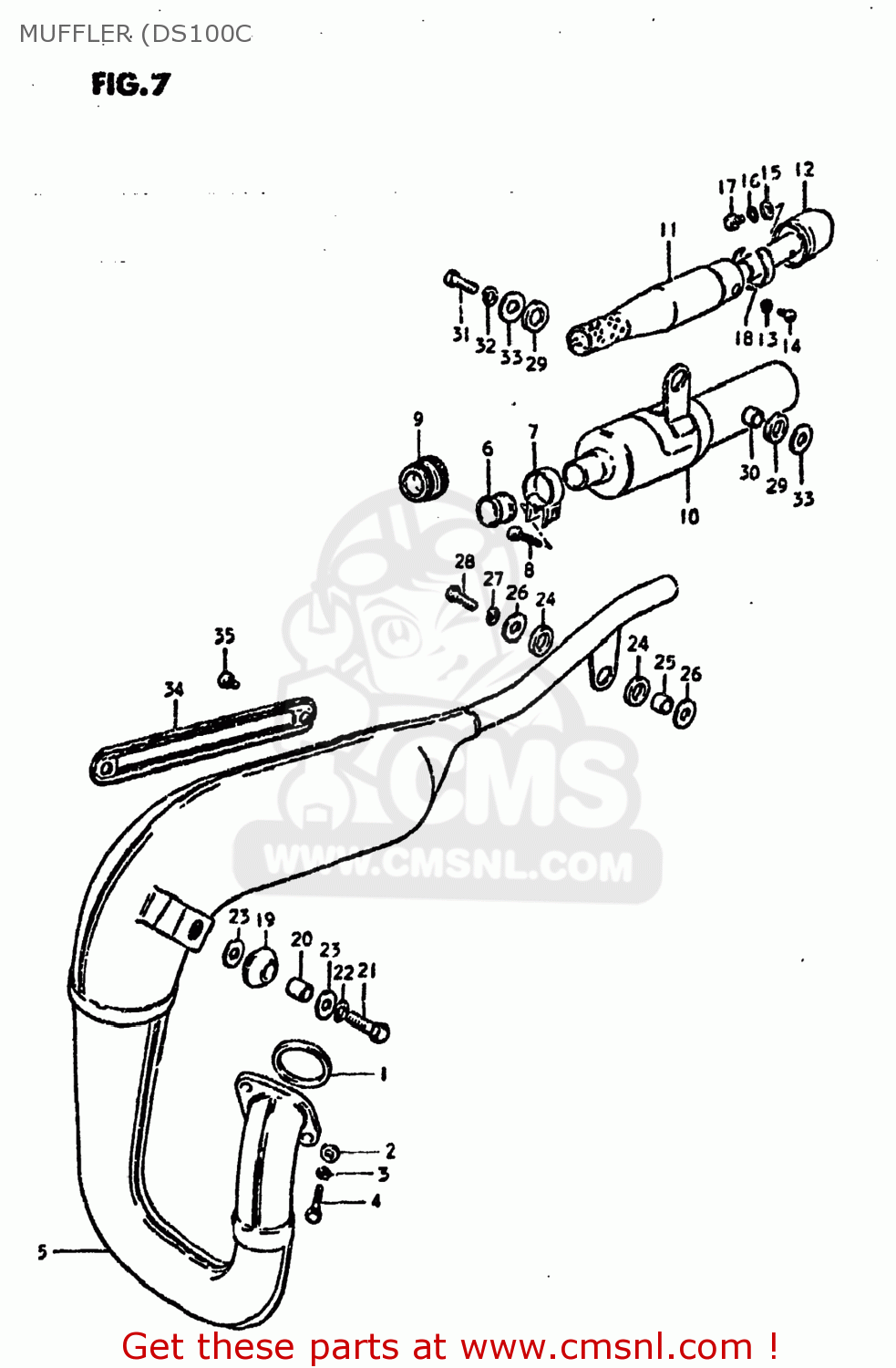

Muffler (ds100c diagram DS100 1978 (C) USA (E03)
MUFFLER (DS100C DS100 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0832221068
ref: 2
08322-01067
WASHER
€ 2.00
3
0832121068
ref: 3
08321-01067
LOCK WASHER
€ 2.50
4
0912806012
ref: 4
09103-06212
SCREW
€ 2.50
5
1431048000
ref: 5
14310-48520-H01
BODY,MUFFLER
€ 520.50
6
1477148000
ref: 6
14771-48002
CONNECTOR,MUFFLER
€ 8.00
7
0940231602
ref: 7
CLAMP
€ 3.00
8
0211206208
ref: 8
02112-06207
SCREW
€ 2.00
9
1477148001
ref: 9
14771-48002
CONNECTOR,MUFFLER
€ 8.00
10-1
1430348600
ref: 10-1
14303-48601-H01
MUFFLER ASSEMBLY
€ 57.00
10-2
1430348601
ref: 10-2
14303-48601-H01
MUFFLER ASSEMBLY
€ 57.00
11
1481038601
ref: 11
ARRESTER,SPARK
€ 62.00
12-1
1485038601
ref: 12-1
TUBE,MUFFLER CLEAN OUT
€ 32.50
12-2
1485048000
ref: 12-2
TUBE,MUFFLER CLEAN OUT
€ 33.00
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
0211205088
ref: 14
02112-05087
SCREW
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0912806013
ref: 17
SCREW(6X8)
€ 1.50
18
1484338600
ref: 18
BAND,SPARK ARRESTER
€ 3.50
19
1477230500
ref: 19
DAMPER,MUFFLER,FR
€ 3.00
20
0918008048
ref: 20
09180-08302
SPACER (8X12X15)
€ 3.50
21
0110708358
ref: 21
01500-0835B
BOLT
€ 3.50
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
0916008007
ref: 23
09160-08127
WASHER (8.7X22X2)
€ 2.00
24
0932014006
ref: 24
CUSHION
€ 3.50
25
0918008075
ref: 25
09180-08200
SPACER (8.6X13.8X9.8)
€ 3.00
26
0916008005
ref: 26
09160-08134
WASHER
€ 2.50
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0110708258
ref: 28
01500-08257
BOLT
€ 2.50
29
0932014006
ref: 29
CUSHION
€ 3.50
30
0918008050
ref: 30
09180-08199
SPACER (8.6X13.8X9)
€ 2.50
31
0110708258
ref: 31
01500-08257
BOLT
€ 2.50
32
0832121088
ref: 32
08321-01087
LOCK WASHER
€ 2.00
33
0916008005
ref: 33
09160-08134
WASHER
€ 2.50
34
1478148000
ref: 34
COVER,MUFFLER
€ 22.50
35
0211206086
ref: 35
02112-0608A
SCREW.M6X1X8
€ 1.50
