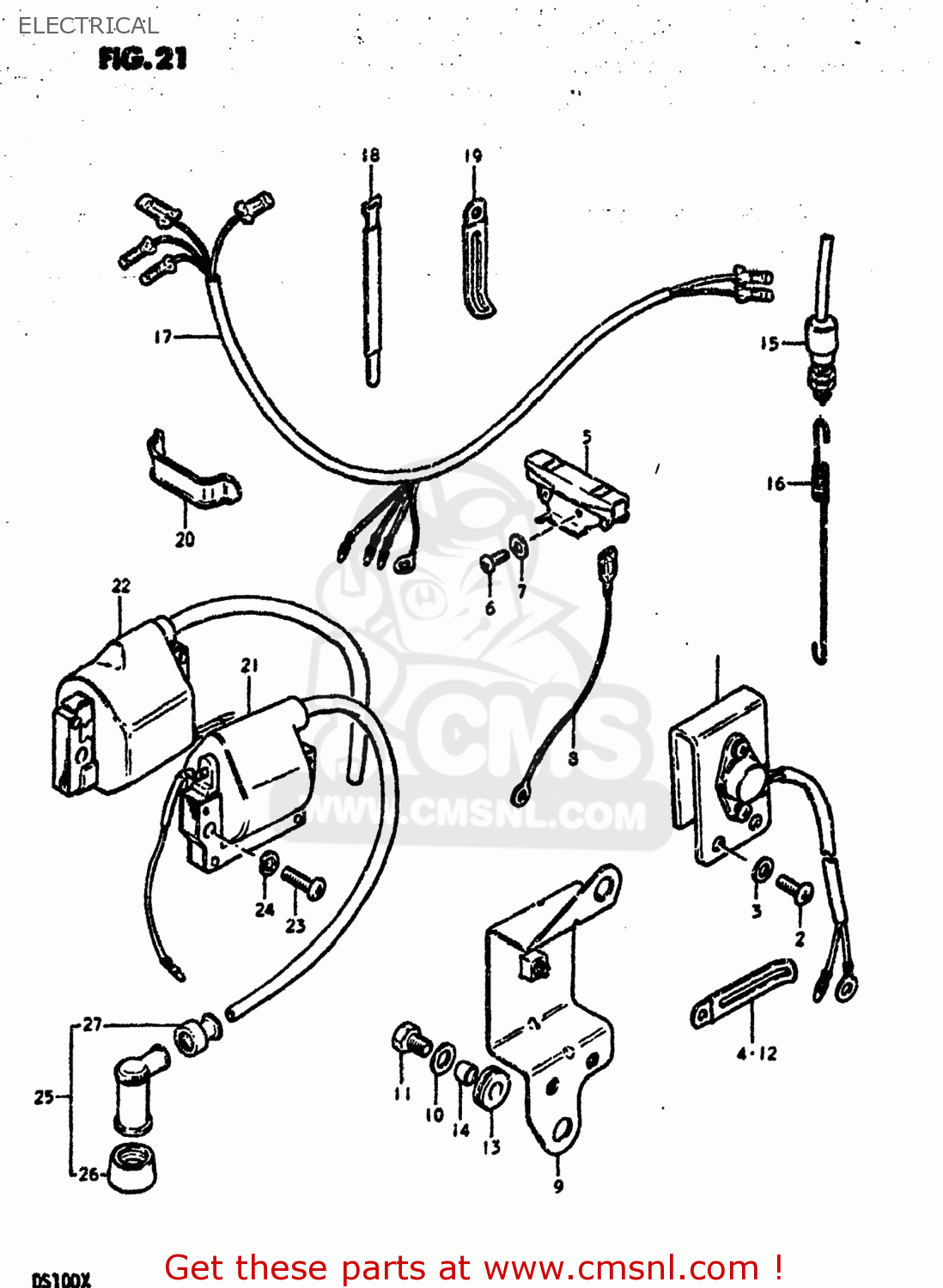

ELECTRICAL

ref

part #

description

quantity

1

3250027600
ref: 1
32500-25600

REGULATOR ASSEMBLY

€ 176.50

2

0211206128
ref: 2
02112-06127

SCREW 6X12

€ 2.00

3

0832221068
ref: 3
08322-01067

WASHER

€ 2.00

4

0940406401
ref: 4
09404-06432

CLAMP L:35

€ 2.50

5

3651046110
ref: 5

RESISTOR ASSY,MAGNETO

€ 22.50

6

0211206108
ref: 6
02112-06107

SCREW

€ 1.50

7

0832221068
ref: 7
08322-01067

WASHER

€ 2.00

8

3685143000
ref: 8

WIRE

€ 6.00

9

3268048200
ref: 9

BRACKET

€ 0.00

10

0916006027
ref: 10
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

11

0110706168
ref: 11
01500-06167

BOLT, UPPER

€ 3.00

12

0940406402
ref: 12
09404-06432

CLAMP

€ 2.50

13

0932008007
ref: 13
09320-08021

CUSHION

€ 4.00

14

0918007005
ref: 14
09180-06259

SPACER (7X9X7)

€ 2.50

15

3774019051
ref: 15
37740-48071

SWITCH ASSY, STOP LAMP

€ 22.00

16

0944306005
ref: 16

SPRING

€ 6.00

17-1

3661048200
ref: 17-1
36610-48201

HARNESS,WIRING

€ 21.00

17-2

3661048204
ref: 17-2

HARNESS,WIRING

€ 31.50

18-1

0940711301
ref: 18-1
09407-18301

CLAMP L:110

€ 6.00

18-2

0940718301
ref: 18-2

CLAMP

€ 6.00

18-3

0940725301
ref: 18-3

CLAMP(L:250)

€ 4.50

19

0940406414
ref: 19
09404-06433

CLAMP

€ 3.00

20

0940309307
ref: 20

CLAMP

€ 2.50

21

3341043010
ref: 21
33410-43011

COIL ASSEMBLY,IGNITION

€ 89.50

22

3341048520
ref: 22

UNIT & COIL ASSEMBLY,IGNITION

€ 0.00

23

0211206258
ref: 23
02112-06257

SCREW

€ 2.00

24

0832121068
ref: 24
08321-01067

LOCK WASHER

€ 2.50

25

3350069810
ref: 25

CAP,SPARK PLUG

€ 29.50

26

3354169010
ref: 26

SEAL,SPARK PLUG

€ 5.00

27

3354298000
ref: 27
33542-38B00

SEAL,SPARK PLU

€ 4.50

all assemblies
