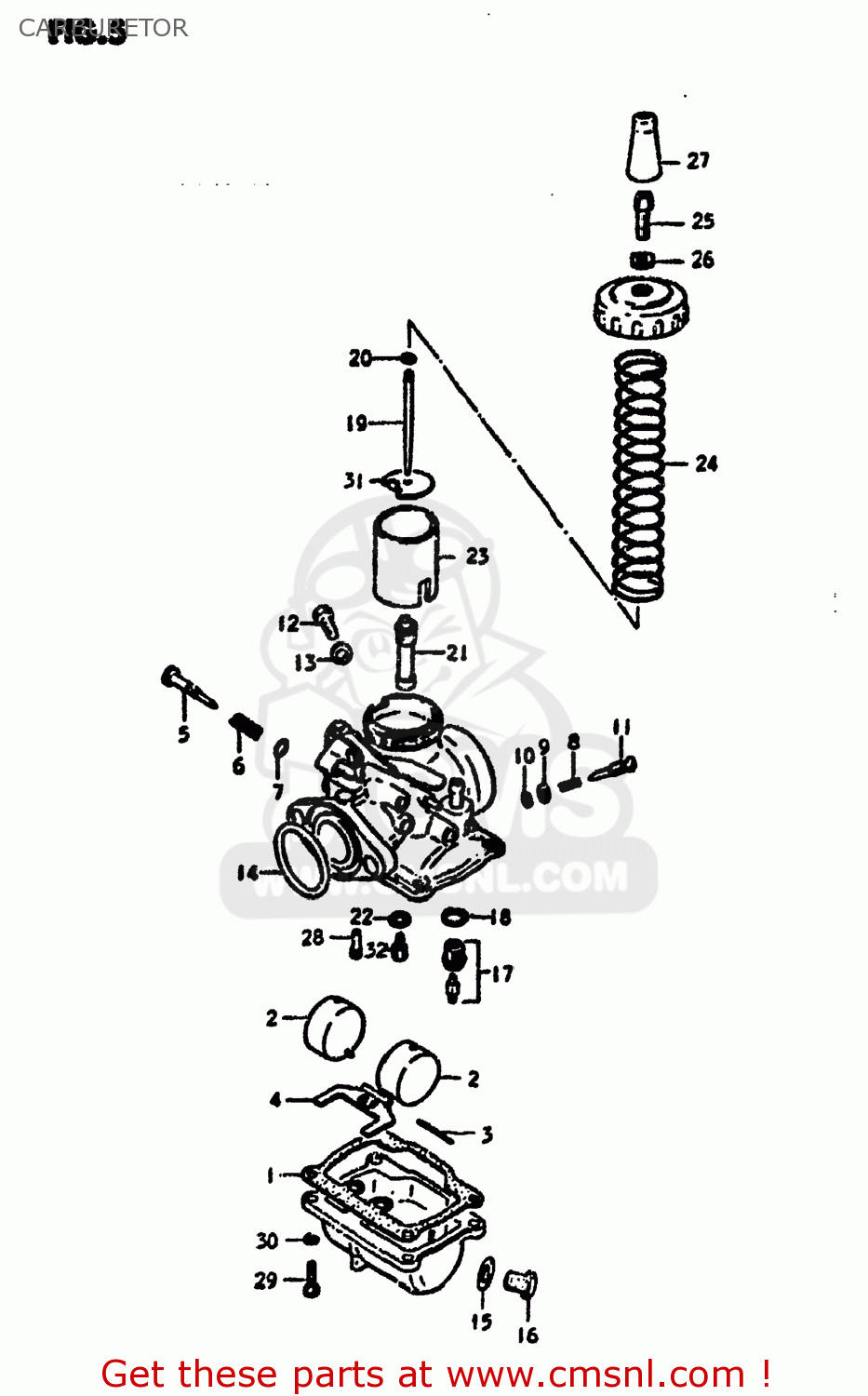

CARBURETOR

ref

part #

description

quantity

0

1320048111
ref: 0
13200-48120

CARBURETOR ASSEMBLY

€ 177.50

1

1325111010
ref: 1

GASKET,FLOAT CHAMBER (NAS)

€ 6.50

2

1325211010
ref: 2

FLOAT

€ 20.50

3

1325401010
ref: 3

PIN,FLOAT

€ 3.00

4

1325997010
ref: 4

PLATE

€ 3.50

5

1326741640
ref: 5

SCREW,THROTTLE STOP

€ 15.00

6

1326848110
ref: 6

SPRING,PILOT

€ 11.50

7

1329430010
ref: 7
13278-02340

O-RING

€ 1.50

8

1327196110
ref: 8

SPRING

€ 3.50

9

1329141640
ref: 9
13606-18E00

WASHER,PILOT AIR SCREW

€ 3.50

10

1327845010
ref: 10

O RING

€ 5.00

11

1326941640
ref: 11

SCREW,PILOT AIR

€ 11.50

12

1366418654
ref: 12

BOLT

€ 10.50

13

1366331010
ref: 13

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

14

1329528010
ref: 14

O RING

€ 3.50

15

1324905010
ref: 15

GASKET,DRAIN,PLUG (NAS)

€ 1.50

16

1324705010
ref: 16

PLUG

€ 6.00

17

1337028010
ref: 17
13370-48051

VALVE ASSEMBLY,NEEDLE

€ 59.50

18

1339258600
ref: 18

GASKET,VALVE SEAT (NAS)

€ 2.00

19

1338333010
ref: 19

NEEDLE,JET

€ 18.00

20

1339410010
ref: 20

CLIP

€ 4.50

21

0949400207
ref: 21

JET,NEEDLE

€ 16.00

22

1338203110
ref: 22

WASHER

€ 2.50

23

1355148110
ref: 23

VALVE,THROTTLE

€ 39.50

24

1357397010
ref: 24
13573-30900

SPRING, THROTTLE VALVE

€ 6.00

25

1357748110
ref: 25

ADJUSTER,CABLE

€ 8.00

26

1366116600
ref: 26

NUT

€ 5.00

27

1368116601
ref: 27

CAP

€ 7.00

28

0949230003
ref: 28
09492-30006

JET

€ 8.50

29

0211204168
ref: 29
02112-0416A

SCREW

€ 1.00

30

0832121048
ref: 30
08321-0104A

LOCK WASHER

€ 2.00

31

1358128010
ref: 31

SEAT,THROTTLE VALVE SPRING

€ 6.50

32-1

0949185002
ref: 32-1

JET,MAIN 85

€ 6.00

32-2

0949175002
ref: 32-2

JET,MAIN (75)

€ 7.00

32-3

0949180003
ref: 32-3

JET,MAIN(83.8)

€ 8.00

32-4

0949190002
ref: 32-4

JET,MAIN 90

€ 9.50

32-5

0949195002
ref: 32-5
09491-95006

JET MAIN (95)

€ 8.00

32-6

0949120002
ref: 32-6

JET,MAIN(100)

€ 7.00

all assemblies
