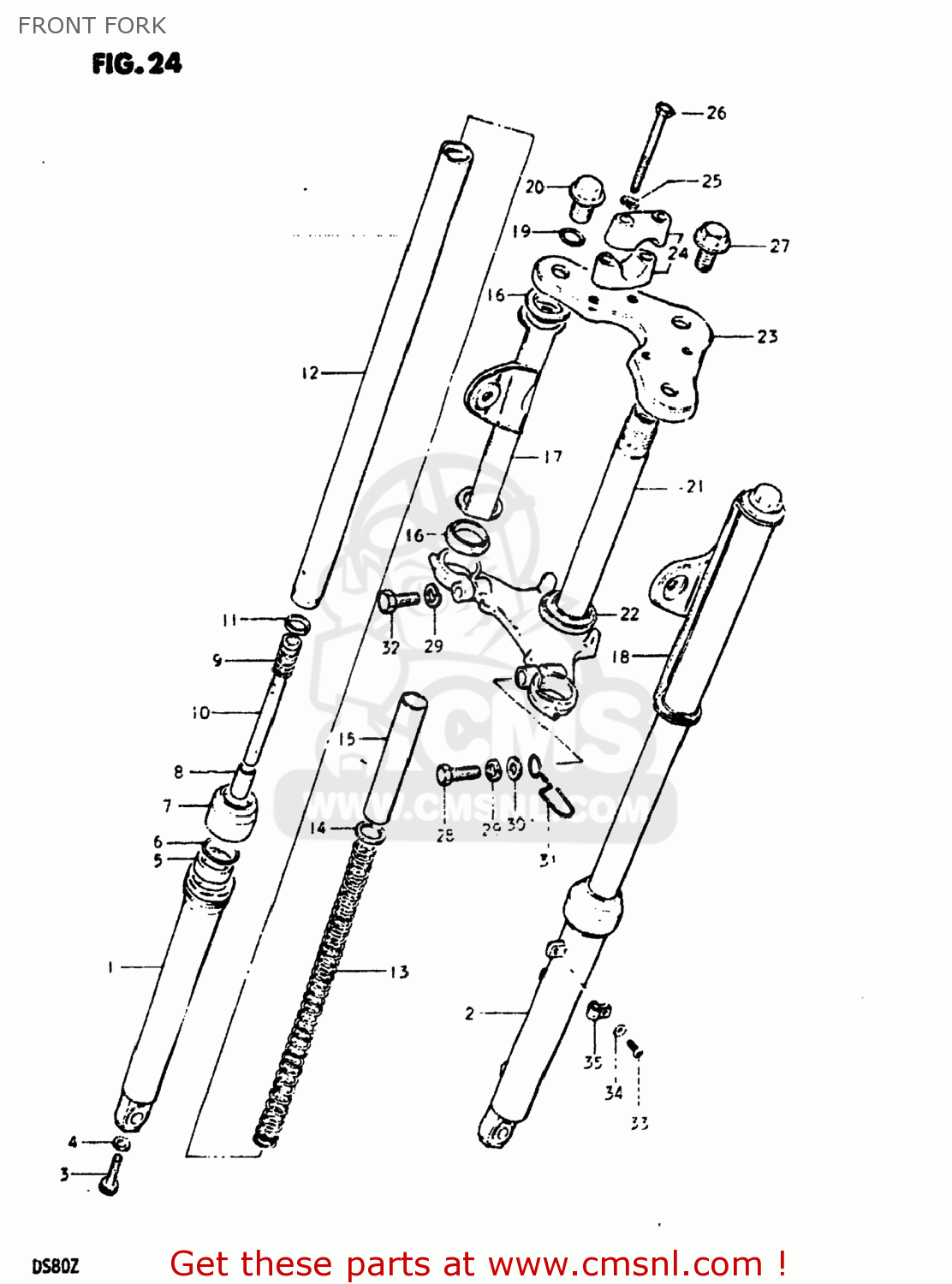

FRONT FORK

ref

part #

description

quantity

0

5110046450291
ref: 0

DAMPER SET

€ 186.00

1

5113146450291
ref: 1

TUBE,OUTER,RIGHT

€ 55.50

2

5114146450291
ref: 2

TUBE,OUTER,LEFT

€ 57.00

3

5114748130
ref: 3

BOLT(8X27)

€ 3.50

4

5114831030
ref: 4
51148-36011

GASKET (NAS)

€ 4.00

5

5115346101
ref: 5
51153-03400

OIL SEAL,FRONT FORK

€ 10.50

6

5115646100
ref: 6
51156-48130

CIRCLIP,FORK OIL SEAL

€ 3.50

7

5157146100
ref: 7

DUST SEAL

€ 6.00

8

5119546684
ref: 8

PIECE,OIL LOCK

€ 0.00

9

5117746100
ref: 9

SPRING,REBOUND

€ 3.50

10

5114646684
ref: 10
51146-03400

CYLINDER,FRONT FORK

€ 0.00

11

5119646100
ref: 11

RING,PISTON

€ 6.00

12

5111046450
ref: 12

TUBE,INNER

€ 105.50

13

5117146450
ref: 13

SPRING

€ 13.00

14

5119246100
ref: 14

JOINT,SPRING

€ 2.50

15

5117646100
ref: 15

SPACER,SPRING

€ 6.50

16

5155346100
ref: 16

CUSHION

€ 7.50

17

5153046420291
ref: 17

BRACKET,HEADLAMP,RIGHT

€ 19.00

18

5154046420291
ref: 18

BRACKET,HEADLAMP,LEFT

€ 19.00

19

5118146190
ref: 19
09280-18004

O-RING,FORK INNER TUBE

€ 5.50

20

5135146190
ref: 20

CAP

€ 15.00

21

5141046450
ref: 21
51410-03410-126

STEM,STEERING

€ 54.50

22

5162133001
ref: 22

RACE,STEERING OUTER LWR

€ 10.00

23

5131046450291
ref: 23

HEAD,STEERING STEM

€ 19.50

24

5621127200291
ref: 24

HOLDER,HANDLE UPR

€ 13.50

25

0832121088
ref: 25
08321-01087

LOCK WASHER

€ 2.00

26

0110708558
ref: 26
01500-08557

BOLT 8X55

€ 3.00

27

5135246101
ref: 27

BOLT

€ 5.50

28

0110710358
ref: 28
01500-1035B

BOLT,M10X1.25X

€ 2.50

29

0832121108
ref: 29
08321-01107

LOCK WASHER

€ 2.00

30

0832211108
ref: 30
08322-01107

WASHER

€ 2.50

31

5145546030
ref: 31

CLAMP,METER CABLE

€ 2.50

32

0110710308
ref: 32
01500-1030A

BOLT 10X30

€ 3.00

33

0211204128
ref: 33
02112-0412A

SCREW

€ 1.50

34

0832121048
ref: 34
08321-0104A

LOCK WASHER

€ 2.00

35

5145246030
ref: 35
51452-46040

CLIP,CABLE

€ 5.50
