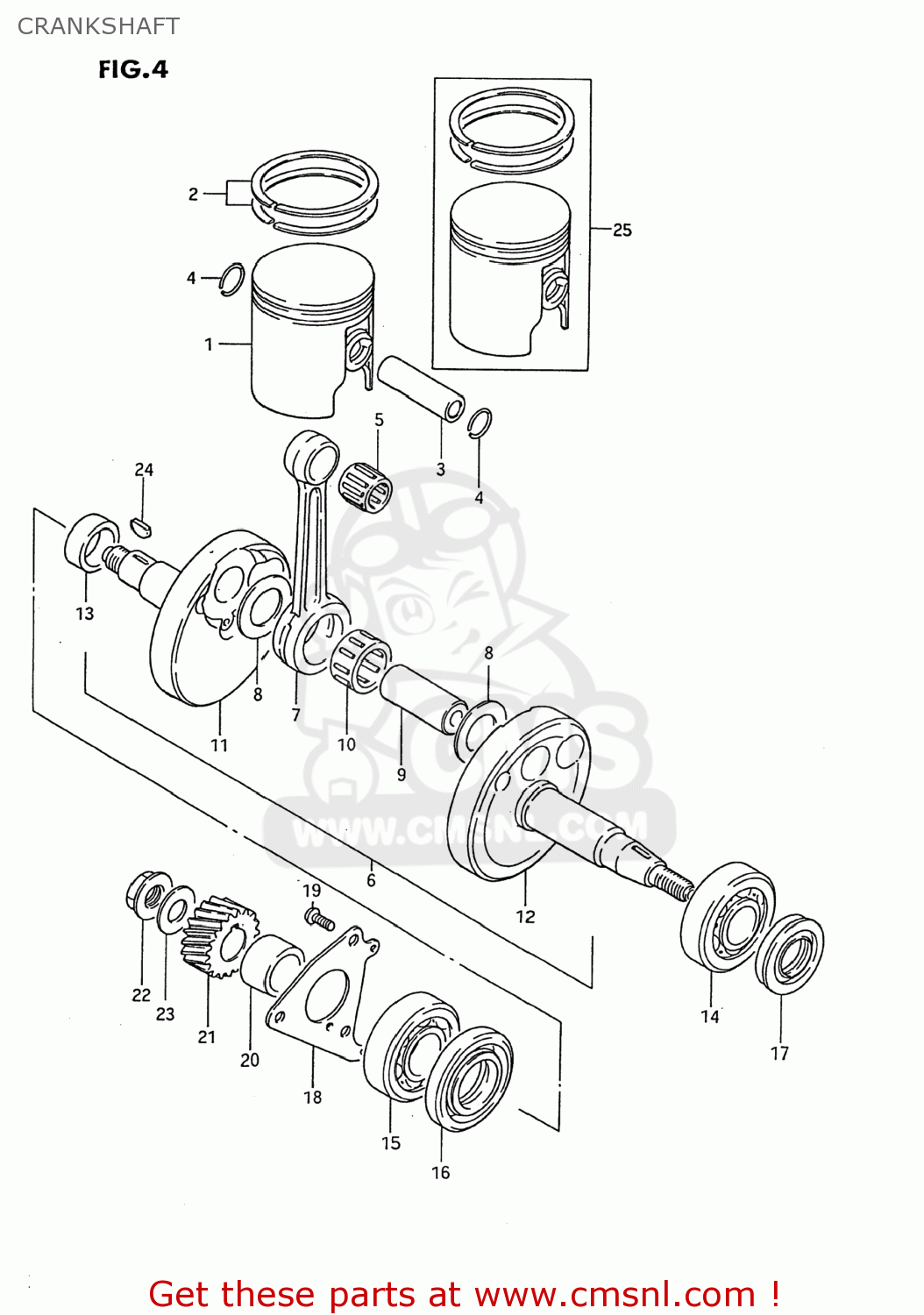

CRANKSHAFT

ref

part #

description

quantity

1

1211046410
ref: 1
12110-46411

PISTON (49.00MM)

€ 41.00

2

1214025631
ref: 2

PISTON RING SET STD

€ 33.50

3-1

1215125000
ref: 3-1
12151-35400

PIN,PISTON

€ 8.00

3-2

1215135400
ref: 3-2

PIN,PISTON

€ 8.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5

0926312020
ref: 5
09263-12023

ROLLER BEARING (12X16X1

€ 9.00

6-1

1220046411
ref: 6-1
12200-46412

CRANKSHAFT ASSEMBLY

€ 504.50

6-2

1220046412
ref: 6-2

CRANKSHAFT ASSY

€ 504.50

7

1216114001
ref: 7

ROD,CONNECTING

€ 42.50

8

0916017022
ref: 8

WASHER(17X29X1)

€ 3.50

9

1221146000
ref: 9

PIN,CRANK

€ 16.00

10

0926317016
ref: 10

BEARING(17X23X14)

€ 17.00

11

1222146000
ref: 11
12220-46810

CRANKSHAFT,RIGHT

€ 126.00

12-1

1226146410
ref: 12-1
12261-46411

CRANKSHAFT,LEFT

€ 74.50

12-2

1226146411
ref: 12-2

CRANKSHAFT,L

€ 74.50

13

0918020021
ref: 13

SPACER(20X26X9)

€ 6.50

14

0926220069
ref: 14

BEARING(20X47X14)

€ 28.00

15

0926220064
ref: 15

BEARING(20X47X14)

€ 21.00

16

0928326015
ref: 16

SEAL,OIL(26X47X7.3)

€ 6.50

17

0928320034
ref: 17

SEAL,OIL(19.6X37X8)

€ 6.00

18

1254146001
ref: 18

RETAINER,CRANKSHAFT BEARING,R

€ 5.00

19-1

0211206128
ref: 19-1
02112-06127

SCREW 6X12

€ 2.00

19-2

0211206123
ref: 19-2
02112-0612A

SCREW

€ 1.50

20

0918020059
ref: 20

SPACER(20X26X14)

€ 7.50

21

2111146000
ref: 21

GEAR,PRIMARY DRIVE NO.19

€ 31.00

22

0915912005
ref: 22

NUT

€ 4.00

23

0916412016
ref: 23

WASHER

€ 5.00

24

0834131039
ref: 24

KEY

€ 2.00

25-1

1210046410050
ref: 25-1
12100-46411-050

PISTON SET (OS:0.5)

€ 63.50

25-2

1210046410100
ref: 25-2
12100-46411-100

PISTON SET (OS:1.0)

€ 64.50

all assemblies
