OIL PUMP
DS80 1985 (F)

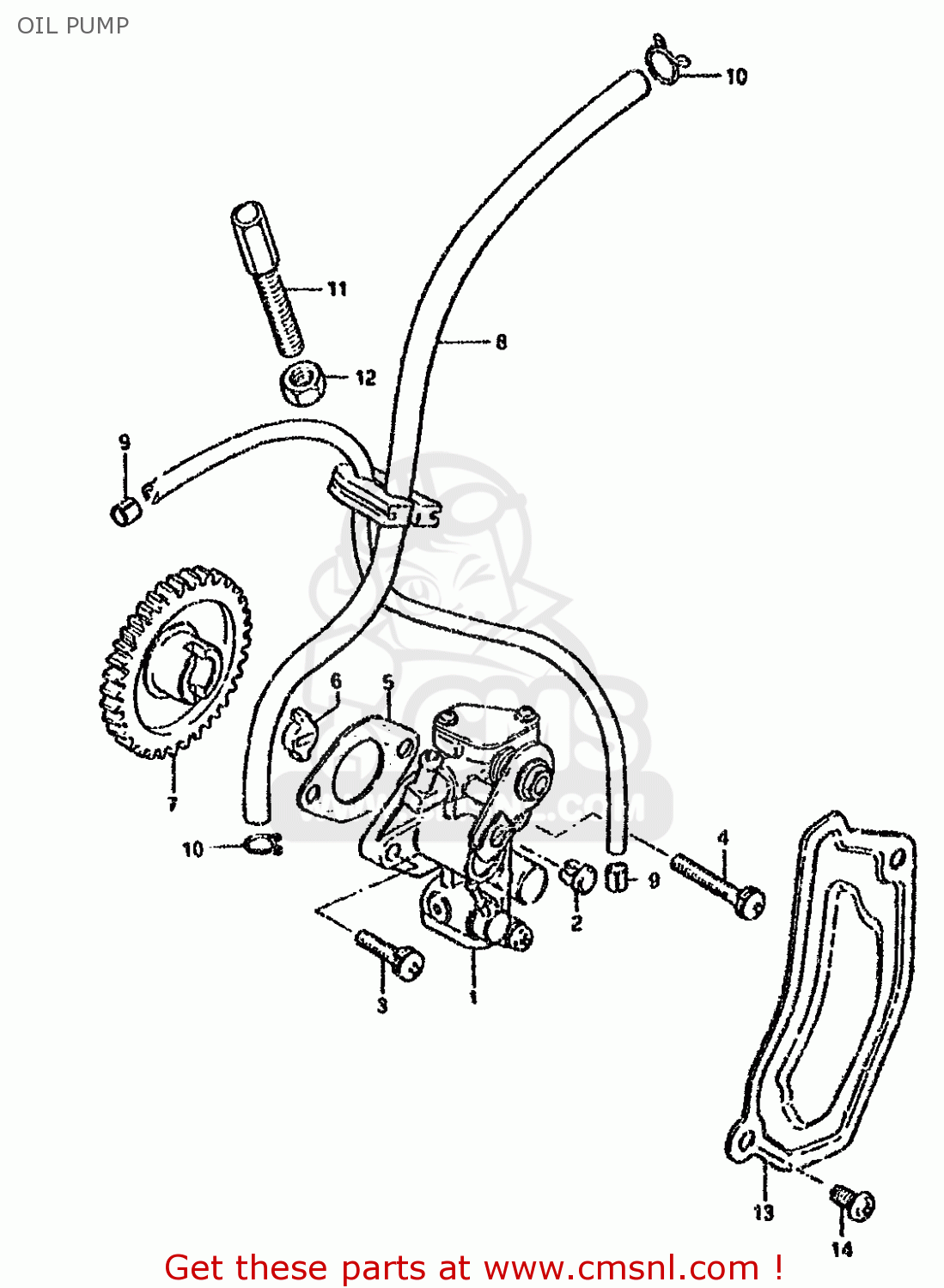

Oil pump diagram DS80 1985 (F)
OIL PUMP DS80 1985 (F)
×
prices are in EUR
ref
part #
description
quantity
1
1610046411
ref: 1
PUMP ASSY,OIL
€ 106.00
2-1
16292031A2
ref: 2-1
MODEL F/G/H/J/K/L/M
TERMINAL,CABLE
€ 3.50
2-2
1629203112
ref: 2-2
MODEL N/P/R/S
TERMINAL,CABLE
€ 3.50
3-1
0211235168
ref: 3-1
MODEL F/G/H/J/K/L/M/
SCREW
€ 2.50
3-2
0211235163
ref: 3-2
MODEL S
SCREW
€ 2.50
4-1
0211235308
ref: 4-1
MODEL F/G/H/J/K/L/M/
SCREW
€ 1.50
4-2
0211235303
ref: 4-2
MODEL S
SCREW
€ 2.50
5
1673103101
ref: 5
GASKET,OIL PUMP (NAS)
€ 2.50
6
1639105031
ref: 6
PIECE,OIL PUMP DRIVE
€ 2.50
7
1632046131
ref: 7
GEAR,OIL PUMP DRIVE
€ 35.00
8
1682003400
ref: 8
HOSE,OIL NO.2
€ 0.00
9
0940104401
ref: 9
CLIP
€ 2.50
10
0940108401
ref: 10
CLIP
€ 1.50
11
0911908014
ref: 11
BOLT
€ 3.50
12-1
0831012088
ref: 12-1
MODEL F/G/H/J/K/L/M/
NUT
€ 2.00
12-2
0831000083
ref: 12-2
MODEL P/R/S
NUT
€ 1.50
13
1130246811
ref: 13
CAP,OIL PUMP INSPECTION
€ 11.50
14-1
0211206108
ref: 14-1
MODEL F/G/H/J/K/L/M/
SCREW
€ 1.50
14-2
0211206103
ref: 14-2
MODEL P/R/S
SCREW
€ 1.50
