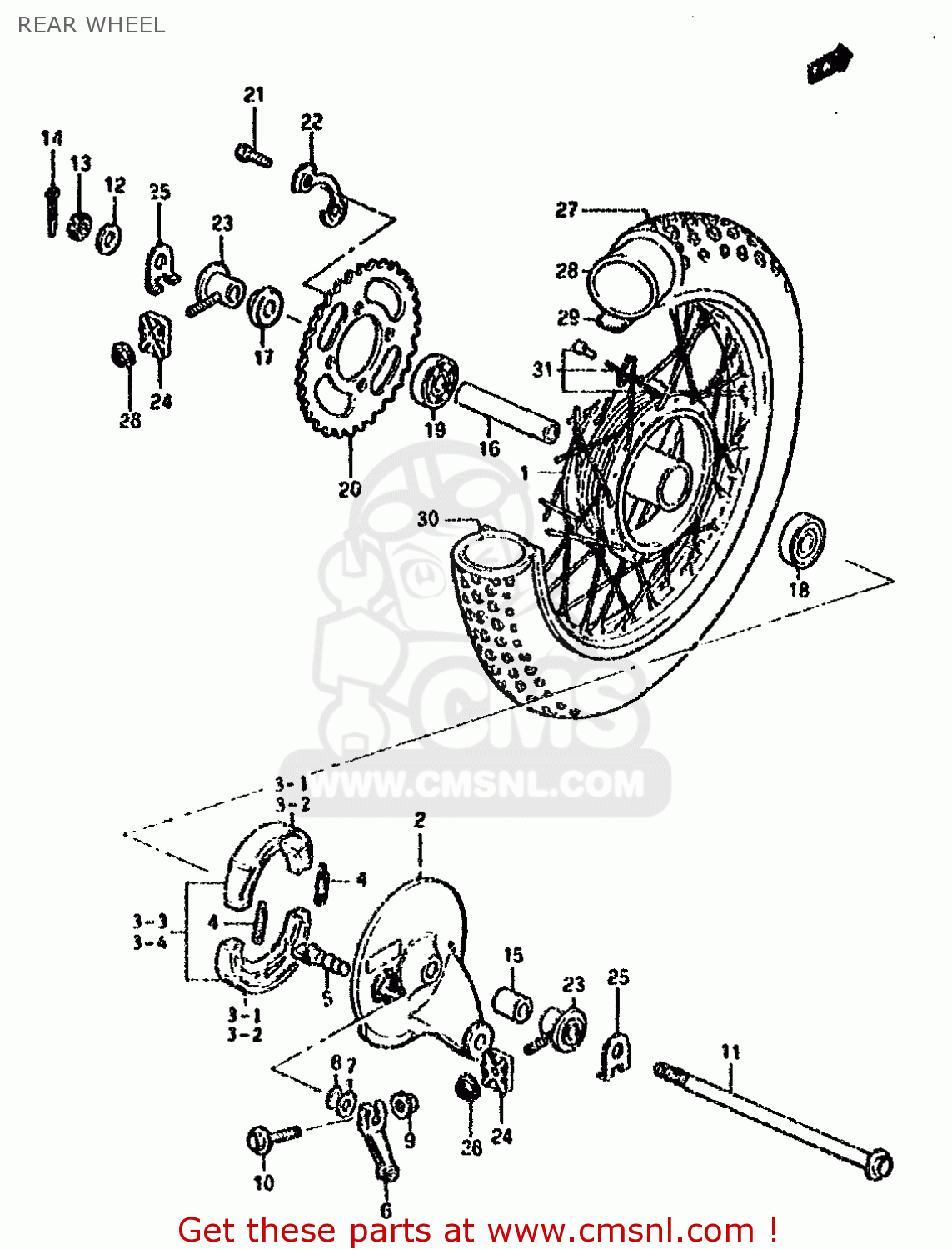

REAR WHEEL

ref

part #

description

quantity

1

6411046401
ref: 1

HUB,RR

€ 189.00

2

6421046024
ref: 2
-64210-46023

PANEL,RR BRAKE ANCHOR

€ 66.00

3-1

5441043011
ref: 3-1
MODEL F/R-54400-4382

SHOE,BRAKE

€ 19.00

3-2

5441043021
ref: 3-2
MODEL G/H/J/K/L/M/N/

SHOE,BRAKE (MCA)

€ 19.00

3-3

5440043820
ref: 3-3
MODEL F/G/H/J/K/L/M/

SHOE SET,BRAKE (NAS)

€ 19.00

3-4

5440043830
ref: 3-4
MODEL S

SHOE & SPRING SET,BRAKE (NAS)

€ 19.00

4-1

0944307001
ref: 4-1
MODEL F/G/H/J/K/L/M/

SPRING(L:34)

€ 2.50

4-2

0944307025
ref: 4-2
MODEL P/R

SPRING(L:35.8)

€ 2.50

4-3

0944307025
ref: 4-3
FOR 54400-43820

SPRING(L:35.8)

€ 2.50

4-4

0944307025
ref: 4-4
MODEL S FOR 54400-43

SPRING(L:35.8)

€ 2.50

5

5444129305
ref: 5

CAM,BRAKE

€ 13.00

6

6445117300
ref: 6

LEVER,RR BRAKE CAM

€ 9.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9-1

0915906017
ref: 9-1
MODEL F/G/H/J/K/L/M/

NUT

€ 2.50

9-2

0831610063
ref: 9-2
MODEL R/S

NUT

€ 2.50

10-1

0151706358
ref: 10-1
MODEL F/G/H/J/K/L/M/

BOLT 6X35

€ 2.50

10-2

0155006353
ref: 10-2
MODEL R/S

BOLT

€ 2.50

11

6471104711
ref: 11

AXLE,RR

€ 24.00

12-1

0832211128
ref: 12-1
MODEL F/G/H/J/K/L/M/

WASHER

€ 2.00

12-2

0832201123
ref: 12-2
MODEL R/S

WASHER

€ 2.00

13-1

0831441128
ref: 13-1
MODEL F/G/H/J/I/L/M/

NUT, REAR AXLE

€ 2.50

13-2

0831440123
ref: 13-2
MODEL R/S

NUT,M12X1.25X1

€ 2.50

14

0411130308
ref: 14

COTTER PIN

€ 1.50

15

0918012092
ref: 15

SPACER(12.1X22X22)

€ 6.50

16

0918012078
ref: 16

SPACER(12.6X19X91)

€ 7.00

17

6475046000
ref: 17

SPACER,RR AXLE,L

€ 6.50

18

0814363017
ref: 18

BEARING

€ 14.50

19

0812363017
ref: 19

BEARING

€ 13.50

20-1

6451146430
ref: 20-1
-64511-35460

SPROCKET,REAR

€ 40.50

20-2

6451135460
ref: 20-2
MODEL F/G/H/J/K/L/M/

SPROCKET,REAR (NT:34)

€ 40.50

20-3

6451146431
ref: 20-3
MODEL S

SPROCKET,RR(NT:34)

€ 40.50

21

0910008140
ref: 21

BOLT(8X25)

€ 2.00

22

0916908011
ref: 22

WASHER

€ 2.50

23

6141004701
ref: 23

ADJUSTER,CHAIN

€ 7.50

24

6143104702
ref: 24

PLATE,CHAIN ADJUSTER GUIDE

€ 3.50

25

6471220900
ref: 25

WASHER,CHAIN ADJUSTER

€ 2.00

26

0831931067
ref: 26

NUT

€ 2.50

27

6510046470
ref: 27

TIRE(3.00 12)

€ 57.00

28

6520046410
ref: 28

TUBE,INNER

€ 19.00

29

6526146410
ref: 29

PROTECTOR,INNER TUBE

€ 4.50

30-1

6531146420
ref: 30-1
MODEL F/R/S

RIM,RR WHEEL(1.60X12)

€ 71.00

30-2

6531146440
ref: 30-2
MODEL G/H/J/K/L/M/N/

RIM,REAR WHEEL (1.60-12)(G

€ 71.00

31-1

6532046420
ref: 31-1
MODEL F/G/H

SPOKE SET,REAR WHEEL

€ 21.50

31-2

6532046430
ref: 31-2
MODEL J/K/L/M/N/P/R/

SPOKE ASSY,RR WHEEL

€ 21.50
