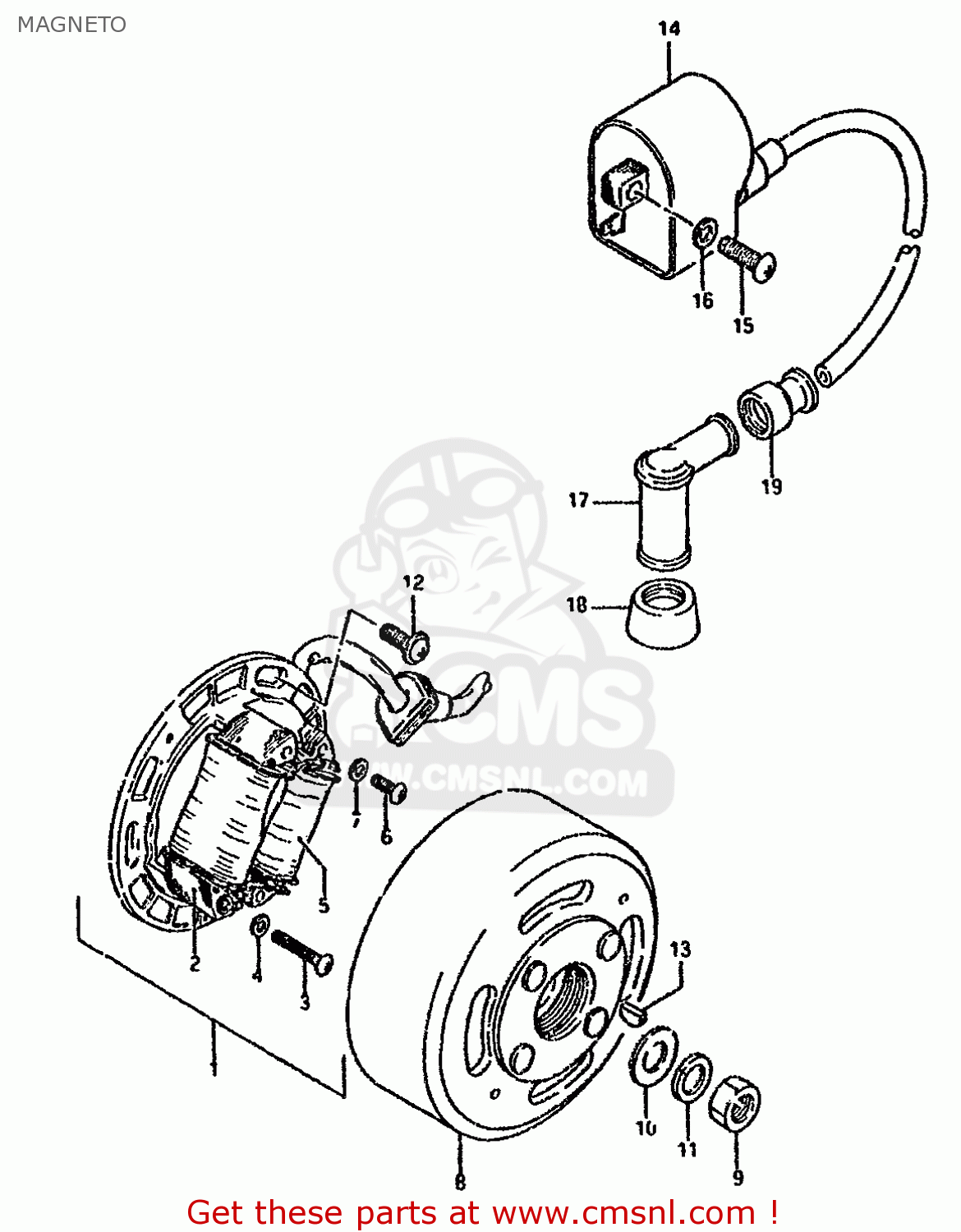

MAGNETO

ref

part #

description

quantity

1-1

3210103410
ref: 1-1
MODEL F/G/H/J/K/L/M/

STATOR ASSEMBLY

€ 0.00

1-2

3210103420
ref: 1-2
MODEL S

STARTER ASSY

€ 0.00

2-1

3212003410
ref: 2-1
MODEL F/G/H/J/K/L/M/

COIL,LIGHTING

€ 0.00

2-2

3212003420
ref: 2-2
MODEL S

COIL,LIGHTING

€ 0.00

3

0912504019
ref: 3

SCREW

€ 1.50

4-1

0832121047
ref: 4-1
MODEL F/G/H/J/K/L/M/

WASHER,LOCK 4M

€ 2.00

4-2

0832101043
ref: 4-2
MODEL R/S

WASHER,LOCK

€ 2.00

5

3214035410
ref: 5

COIL,PRIMARY

€ 58.50

6-1

0211204167
ref: 6-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 1.00

6-2

0211204163
ref: 6-2
MODEL R/S

SCREW 4X16

€ 1.00

7-1

0832121047
ref: 7-1
MODEL F/G/H/J/K/L/M/

WASHER,LOCK 4M

€ 2.00

7-2

0832101043
ref: 7-2
MODEL R/S

WASHER,LOCK

€ 2.00

8

3210203410
ref: 8

ROTOR,FLYWHEEL

€ 157.00

9-1

0831012108
ref: 9-1
MODEL F/G/H/J/K/L/M/

NUT

€ 2.50

9-2

0831000103
ref: 9-2
MODEL S

NUT

€ 2.00

10-1

0832221108
ref: 10-1
MODEL F/G/H/J/K/L/M/

WASHER

€ 2.50

10-2

0832201103
ref: 10-2
MODEL S

WASHER

€ 2.50

11-1

0832121107
ref: 11-1
MODEL F/G/H/J/K/L/M/

WASHER,LOCK,10

€ 2.00

11-2

0832101103
ref: 11-2
MODEL S

WASHER

€ 3.00

12-1

0214205128
ref: 12-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 1.50

12-2

0214205123
ref: 12-2
MODEL S

SCREW 5X12

€ 1.50

13

0834131039
ref: 13

KEY

€ 2.00

14

3341048710
ref: 14

UNIT & COIL ASSY,IGNITION

€ 216.00

15-1

0211206207
ref: 15-1
MODEL F/G/H/J/K/L/M/

SCREW

€ 2.00

15-2

0211236203
ref: 15-2
MODEL P/R

SCREW

€ 2.00

15-3

0211206203
ref: 15-3
MODEL S

SCREW, 6X20

€ 2.00

16

0832121067
ref: 16

WASHER,LOCK

€ 2.50

17-1

3351022010
ref: 17-1
MODEL F/G/H/J/K/L/M/

CAP ASSY,SPARK PLUG

€ 16.50

17-2

3351020A00
ref: 17-2
MODEL R/S

CAP,SPARK PLUG

€ 23.00

18

3354169010
ref: 18

SEAL,SPARK PLUG

€ 5.00

19

3354238B00
ref: 19

SEAL,HIGH TENSION CORD

€ 4.50
