MAGNETO
DS80 1994 (R) USA (E03)

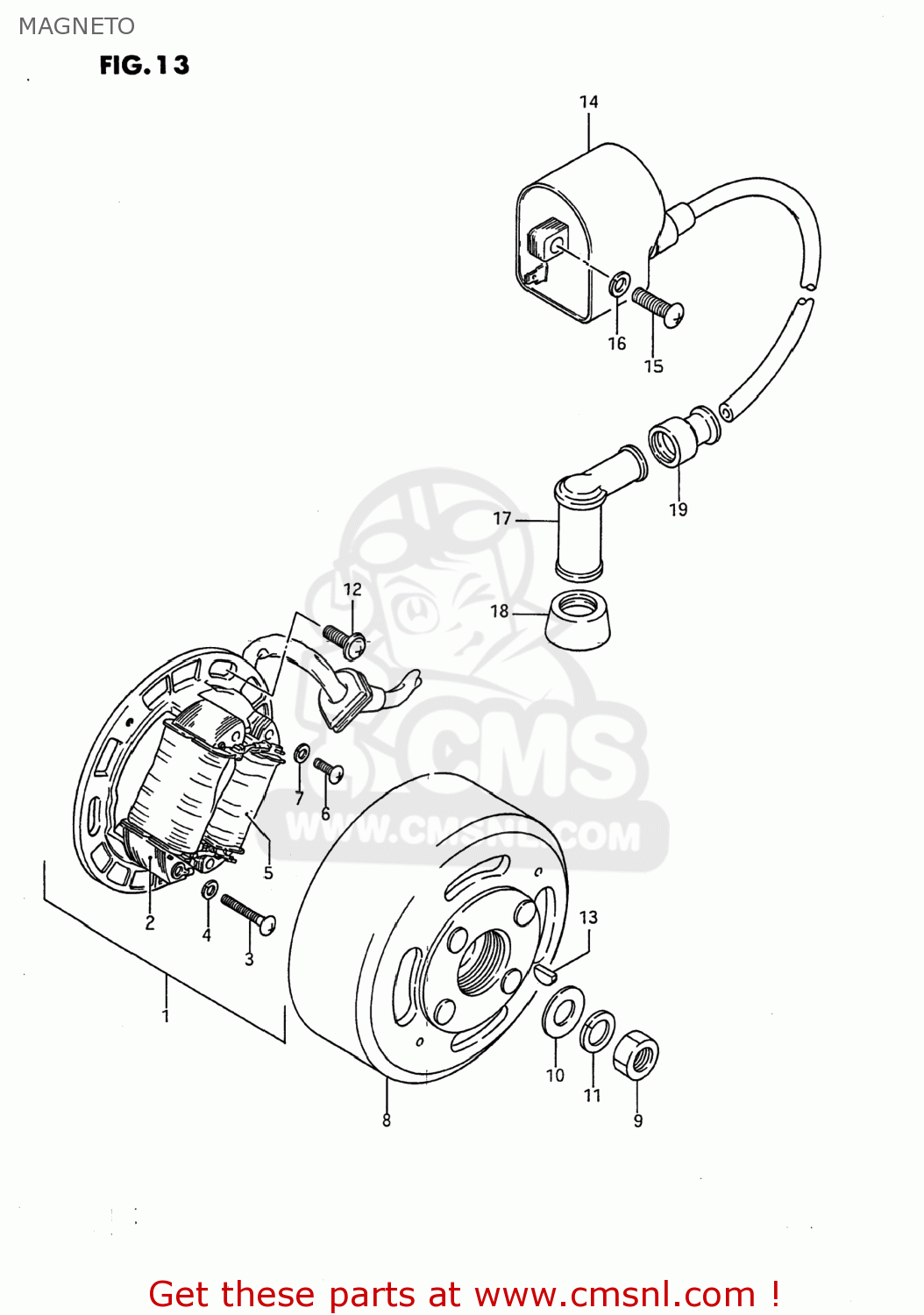

Magneto diagram DS80 1994 (R) USA (E03)
MAGNETO DS80 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210103410
ref: 1-1
32101-03420
STATOR ASSEMBLY
€ 0.00
1-2
3210103420
ref: 1-2
STARTER ASSY
€ 0.00
2-1
3212003410
ref: 2-1
COIL,LIGHTING
€ 0.00
2-2
3212003420
ref: 2-2
COIL,LIGHTING
€ 0.00
3
0912504019
ref: 3
09125-04023
SCREW
€ 1.50
4-1
0832121047
ref: 4-1
08321-0104A
WASHER,LOCK 4M
€ 2.00
4-2
0832101043
ref: 4-2
08321-0104A
WASHER,LOCK
€ 2.00
5
3214035410
ref: 5
COIL,PRIMARY
€ 58.50
6-1
0211204167
ref: 6-1
02112-0416A
SCREW
€ 1.00
6-2
0211204163
ref: 6-2
02112-0416A
SCREW 4X16
€ 1.00
7-1
0832121047
ref: 7-1
08321-0104A
WASHER,LOCK 4M
€ 2.00
7-2
0832101043
ref: 7-2
08321-0104A
WASHER,LOCK
€ 2.00
8
3210203410
ref: 8
32102-03420
ROTOR,FLYWHEEL
€ 157.00
9-1
0831012108
ref: 9-1
08310-00107
NUT
€ 2.50
9-2
0831000103
ref: 9-2
08310-0010A
NUT
€ 2.00
10-1
0832221108
ref: 10-1
08322-01107
WASHER
€ 2.50
10-2
0832201103
ref: 10-2
08322-0110A
WASHER
€ 2.50
11-1
0832121107
ref: 11-1
08321-01107
WASHER,LOCK,10
€ 2.00
11-2
0832101103
ref: 11-2
08321-0110A
WASHER
€ 3.00
12-1
0214205128
ref: 12-1
02142-05127
SCREW
€ 1.50
12-2
0214205123
ref: 12-2
02142-0512A
SCREW 5X12
€ 1.50
13
0834131039
ref: 13
KEY
€ 2.00
14
3341048710
ref: 14
UNIT & COIL ASSY,IGNITION
€ 216.00
15-1
0211206207
ref: 15-1
SCREW
€ 2.00
15-2
0211236203
ref: 15-2
02112-3620A
SCREW
€ 2.00
15-3
0211206203
ref: 15-3
02112-0620A
SCREW, 6X20
€ 2.00
16
0832121067
ref: 16
08321-01067
WASHER,LOCK
€ 2.50
17-1
3351022010
ref: 17-1
33510-97313
CAP ASSY,SPARK PLUG
€ 16.50
17-2
3351020A00
ref: 17-2
33510-20A02
CAP,SPARK PLUG
€ 23.00
18
3354169010
ref: 18
SEAL,SPARK PLUG
€ 5.00
19
3354238B00
ref: 19
SEAL,HIGH TENSION CORD
€ 4.50
