FRAME

DS80 1996 (T) USA (E03)

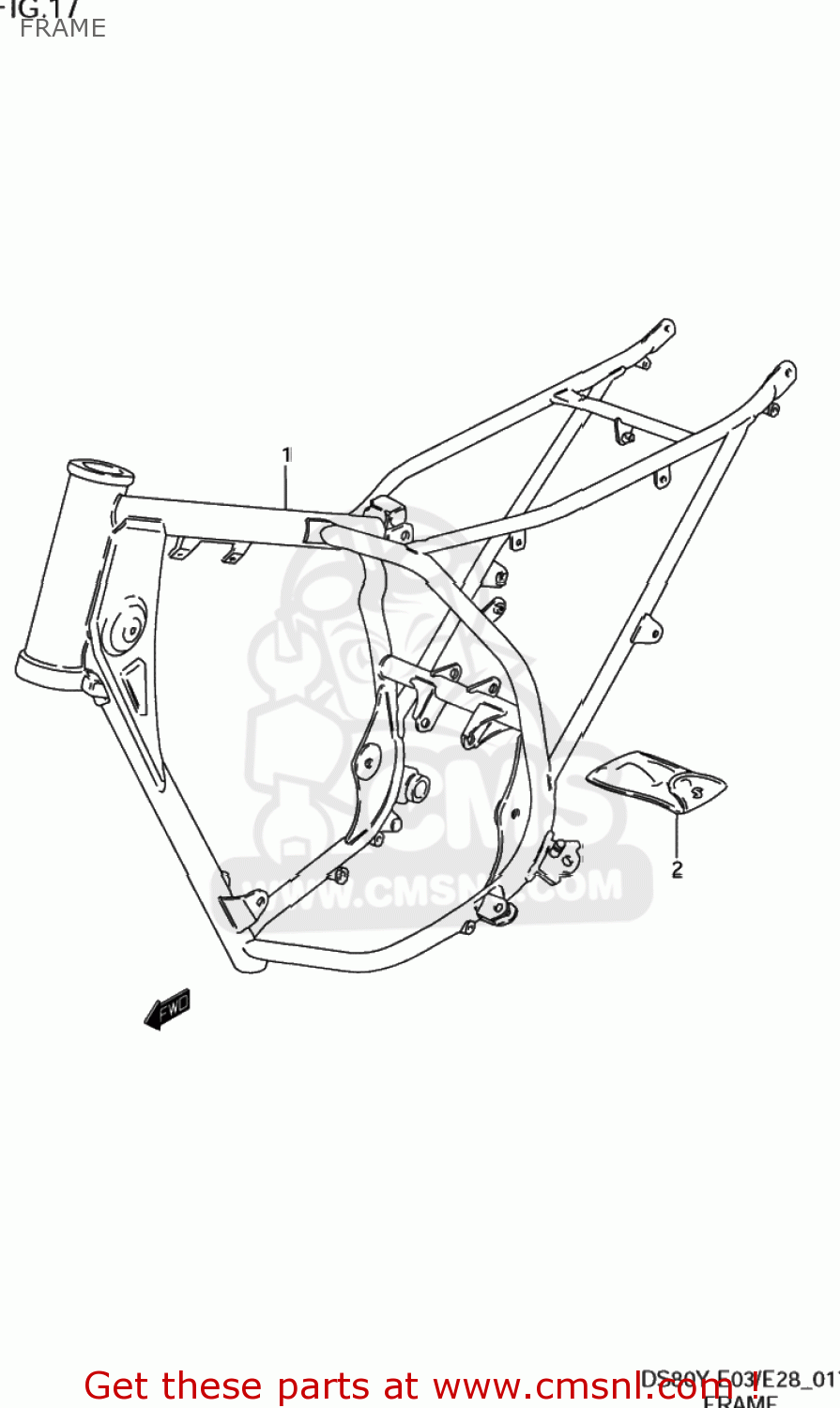

Frame diagram DS80 1996 (T) USA (E03)

FRAME DS80 1996 (T) USA (E03)
FRAME DS80 1996 (T) USA (E03)
FRAME DS80 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4110003400019
ref: 1
FRAME(BLACK)
€ 0.00
2
0980021027
ref: 2
TOOL ASSY
0980021027
€ 48.50
