CRANKCASE

DS80 1997 (V) USA CANADA (E03 E28)

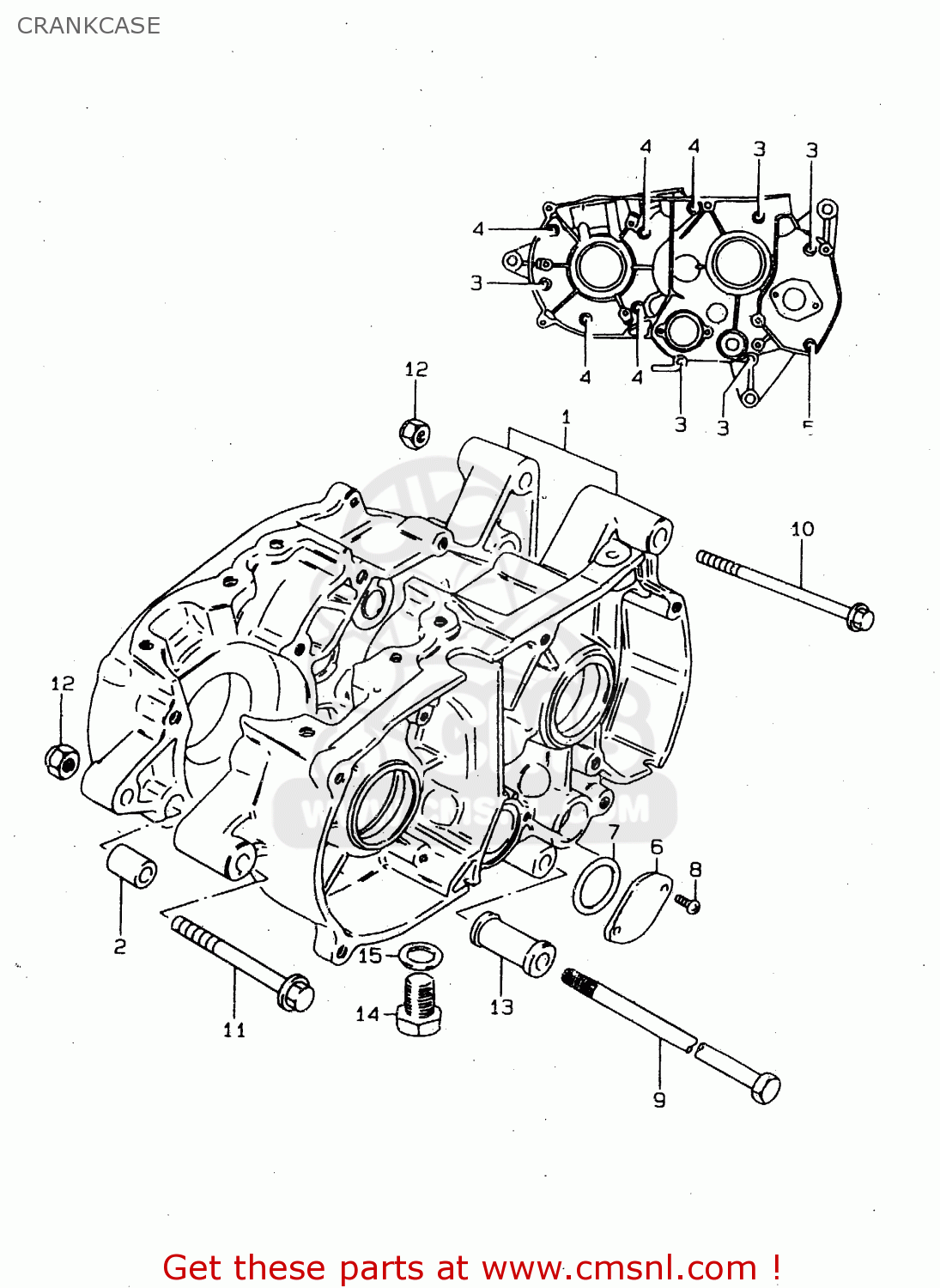

Crankcase diagram DS80 1997 (V) USA CANADA (E03 E28)

prices are in EUR

ref

part #

description

quantity

1130146821
ref: 1

CRANKCASE ASSEMBLY

€ 328.50

0421111189
ref: 2

PIN

€ 2.00

0211206453
ref: 3

SCREW

€ 1.50

0211206353
ref: 4

SCREW

€ 2.50

0211206253
ref: 5

SCREW

€ 1.50

1145146000
ref: 6

CAP,GEAR SHIFT CAM PIVOT

€ 2.50

0928026003
ref: 7

O-RING (D:2.4 ID:26.2)

€ 2.50

0211205083
ref: 8

SCREW

€ 2.00

0910308101
ref: 9

BOLT(8X230)

€ 0.00

0910308070
ref: 10

BOLT(8X100)

€ 5.00

0910308099
ref: 11

BOLT(8X70)

€ 6.00

0831931087
ref: 12

NUT

€ 2.50

1161003400
ref: 13

SPACER,ENGINE MOUNT(L:46)

€ 0.00

0150010203
ref: 14

BOLT

€ 3.50

0916810002
ref: 15

GASKET(10X14X3.6) (NAS)

€ 2.00
