TRANSMISSION
GN125E 1991 (M) USA (E03)

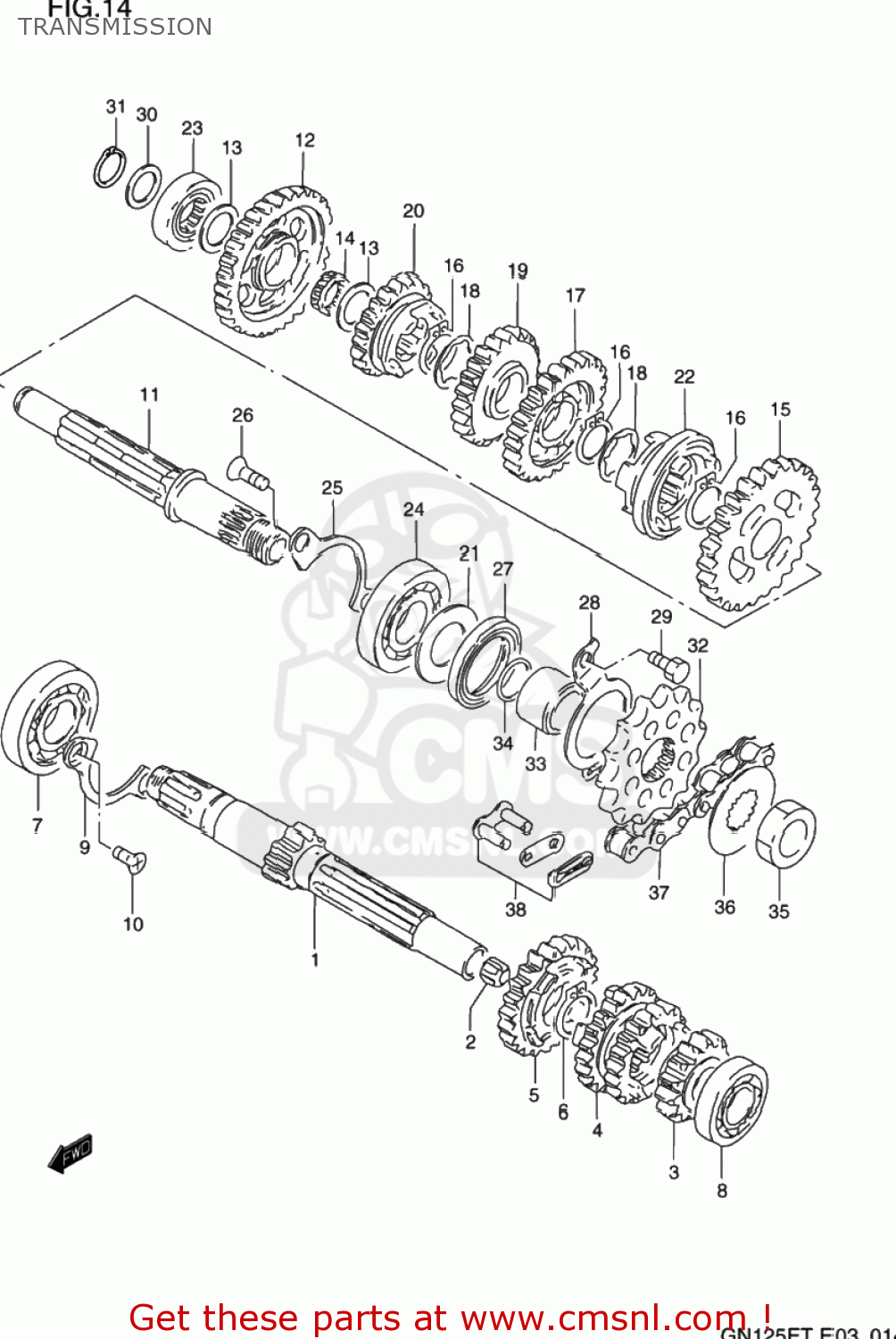

Transmission diagram GN125E 1991 (M) USA (E03)
TRANSMISSION GN125E 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412105201
ref: 1
24120-05810
SHAFT,COUNTER
€ 97.00
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422105300
ref: 3
24221-05301
GEAR,SECOND DRIVE
€ 30.00
4
2423105202
ref: 4
24231-05203
GEAR,THIRD & FOURTH DRIVE,N
€ 61.50
5
2425105202
ref: 5
24251-05203
GEAR,FIFTH DRIVE
€ 54.50
6
0938020009
ref: 6
CIRCLIP
€ 2.00
7-1
0926220062
ref: 7-1
09262-20069
BEARING
€ 28.00
7-2
0926220069
ref: 7-2
BEARING(20X47X14)
€ 28.00
8
0812360027
ref: 8
BEARING
€ 16.00
9
2474105200
ref: 9
RETAINER,DRIVE SHAFT BEARING
€ 3.50
10
0212206123
ref: 10
02122-0612A
SCREW
€ 3.00
11
2413005300
ref: 11
SHAFT,DRIVE
€ 93.00
12
2431105200
ref: 12
24311-05202
GEAR,FIRST DRIVEN
€ 53.00
13
0821115251
ref: 13
WASHER
€ 2.00
14
0926315023
ref: 14
BEARING(15X19X7.8)
€ 10.50
15
2432005201
ref: 15
24320-05202
GEAR,SECOND DRIVEN
€ 40.50
16
0938020009
ref: 16
CIRCLIP
€ 2.00
17
2433105201
ref: 17
24331-05203
GEAR,THIRD DRIVEN
€ 50.00
18
0916720011
ref: 18
WASHER,LOCK
€ 2.50
19
2434105201
ref: 19
24341-05203
GEAR,FOURTH DRIVEN
€ 50.00
20
2435105201
ref: 20
24351-05202
GEAR,FIFTH DRIVEN
€ 47.00
21
2435905200
ref: 21
WASHER,OIL SEALING
€ 4.50
22
2442105300
ref: 22
WHEEL,SLIDING DOG
€ 33.00
23
0926315024
ref: 23
BEARING(15X33X12)
€ 50.00
24-1
0926220062
ref: 24-1
09262-20069
BEARING
€ 28.00
24-2
0926220069
ref: 24-2
BEARING(20X47X14)
€ 28.00
25
2474105200
ref: 25
RETAINER,DRIVE SHAFT BEARING
€ 3.50
26
0212206123
ref: 26
02122-0612A
SCREW
€ 3.00
27
0928327010
ref: 27
SEAL,OIL(27X40X6)
€ 8.00
28
2475105201
ref: 28
24751-05210
PLATE,DRIVESHAFT OIL
€ 3.00
29-1
0110706106
ref: 29-1
01500-0610B
BOLT
€ 2.00
29-2
0150006103
ref: 29-2
01500-0610B
BOLT
€ 2.00
30
0821115201
ref: 30
WASHER
€ 2.00
31
0833131156
ref: 31
08331-3115A
CIRCLIP
€ 2.00
32-1
2751141301
ref: 32-1
27511-41310
SPROCKET,ENGINE
€ 19.00
32-2
2751141310
ref: 32-2
SPROCKET,ENGINE
€ 19.00
33
2753105200
ref: 33
SPACER
€ 13.50
34
0928019005
ref: 34
O RING(D:2.4,ID:19)
€ 2.00
35
0914016017
ref: 35
NUT
€ 4.00
36
0916720012
ref: 36
WASHER,LOCK
€ 2.50
37-1
2760036012
ref: 37-1
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
37-2
2760029B20114
ref: 37-2
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
38-1
2762036012
ref: 38-1
JOINT
€ 4.50
38-2
2762040220
ref: 38-2
JOINT(RK)
€ 7.00
38-3
2762040220
ref: 38-3
JOINT(RK)
€ 7.00
