CLUTCH
GN125E 1993 (P) USA (E03)

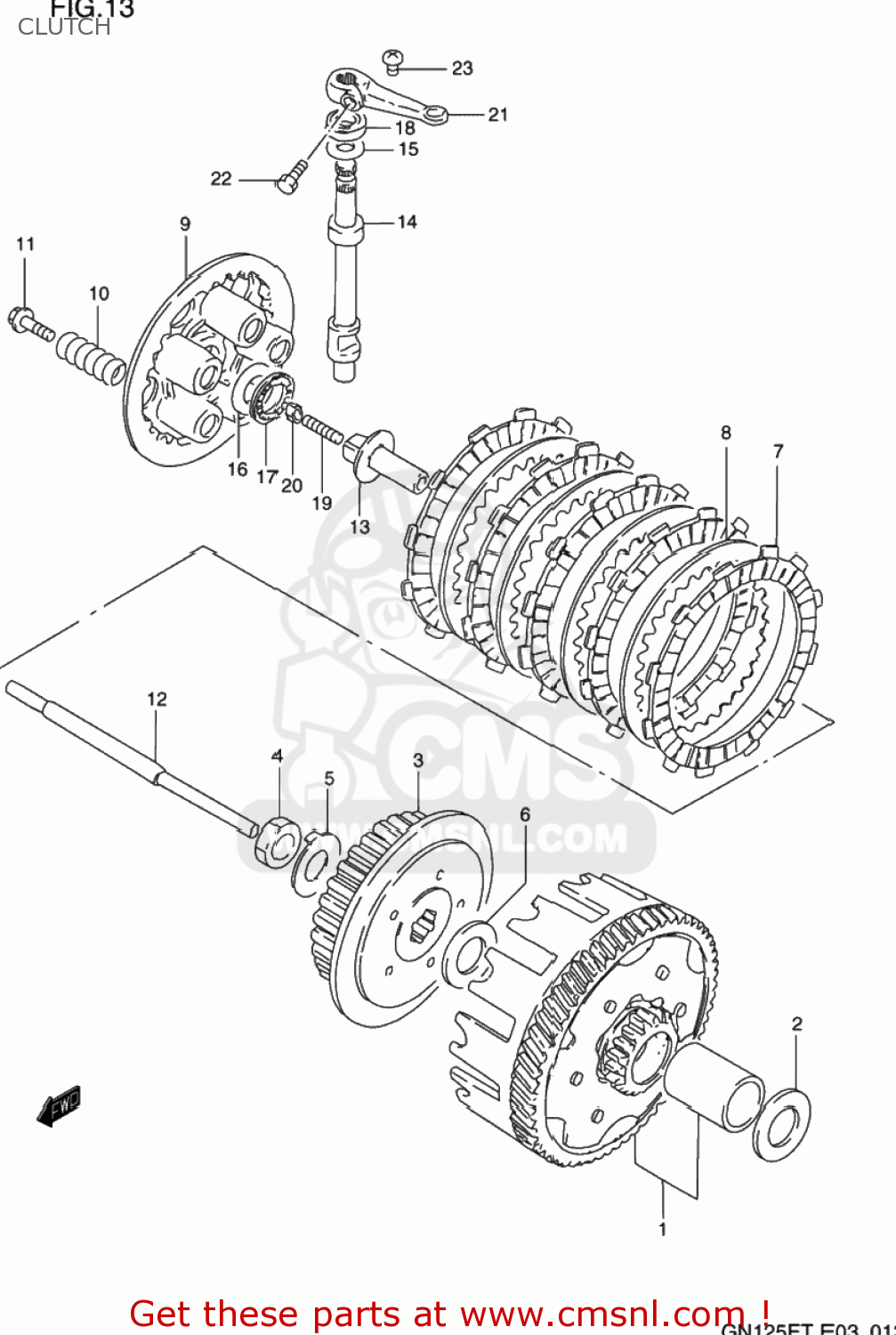

Clutch diagram GN125E 1993 (P) USA (E03)
CLUTCH GN125E 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120005853
ref: 1-1
GEAR ASSY,PRI DRIVEN(NT:59)
€ 175.00
1-1
2120005853
ref: 1-1
GEAR ASSY,PRI DRIVEN(NT:59)
€ 175.00
1-2
2120005880
ref: 1-2
GEAR ASSY,PRIMARY(NT:20/59)
€ 175.00
1-2
2120005880
ref: 1-2
GEAR ASSY,PRIMARY(NT:20/59)
€ 175.00
2
0821120353
ref: 2
WASHER
€ 2.50
3
2141105200
ref: 3
HUB,CLUTCH SLEEVE
€ 47.00
4
0914016014
ref: 4
09140-16005
NUT
€ 4.50
5
0916916003
ref: 5
WASHER
€ 2.00
6
0821120352
ref: 6
WASHER
€ 3.00
7-1
2144113A00
ref: 7-1
21441-13A01
PLATE,CLUTCH DRIVE (NAS)
€ 8.50
7-2
2144113A01
ref: 7-2
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
€ 8.50
8
2145119A00
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
€ 4.50
9
2146214102
ref: 9
21462-14103
PLATE,CLUTCH PRESSURE
€ 16.00
10
0944015014
ref: 10
SPRING
€ 4.00
11
0911605003
ref: 11
09116-05020
BOLT 5X16
€ 2.50
12
2311005202
ref: 12
23110-05203
ROD,CLUTCH PUSH
€ 11.00
13-1
2312138200
ref: 13-1
23121-38201
PIECE,CLUTCH PUSH
€ 17.00
13-2
2312138201
ref: 13-2
PIECE,CLUTCH PUSH
€ 17.00
14
2312205200
ref: 14
CAMSHAFT,CLUTCH RELEASE
€ 31.00
15
0821110201
ref: 15
09181-10195
WASHER,THRUST
€ 2.00
16-1
0916015015
ref: 16-1
09160-15045
WASHER
€ 4.00
16-2
0916015045
ref: 16-2
WASHER(15.5X28X1)
€ 4.00
17
0926315003
ref: 17
BEARING(15X28X2)
€ 7.00
18-1
0928210007
ref: 18-1
09282-10012
OIL SEAL
€ 7.50
18-2
0928210012
ref: 18-2
SEAL,OIL(10X20X6)
€ 7.50
19
0913406010
ref: 19
SCREW(6X25)
€ 3.00
20-1
0831000067
ref: 20-1
NUT
€ 2.50
20-2
0914006023
ref: 20-2
NUT
€ 2.00
21-1
2327146000
ref: 21-1
23271-46010
ARM,CLUTCH RELEASE
€ 14.50
21-2
2327146010
ref: 21-2
ARM,CLUTCH RELEASE
€ 14.50
22-1
0110706167
ref: 22-1
01500-06167
BOLT
€ 3.00
22-2
0150006167
ref: 22-2
BOLT
€ 3.00
23-1
0214206107
ref: 23-1
SCREW
€ 2.00
23-2
0214206103
ref: 23-2
02142-0610A
SCREW 6X10
€ 2.00
