FRONT MASTER CYLINDER

GN125E 1995 (S) USA (E03)

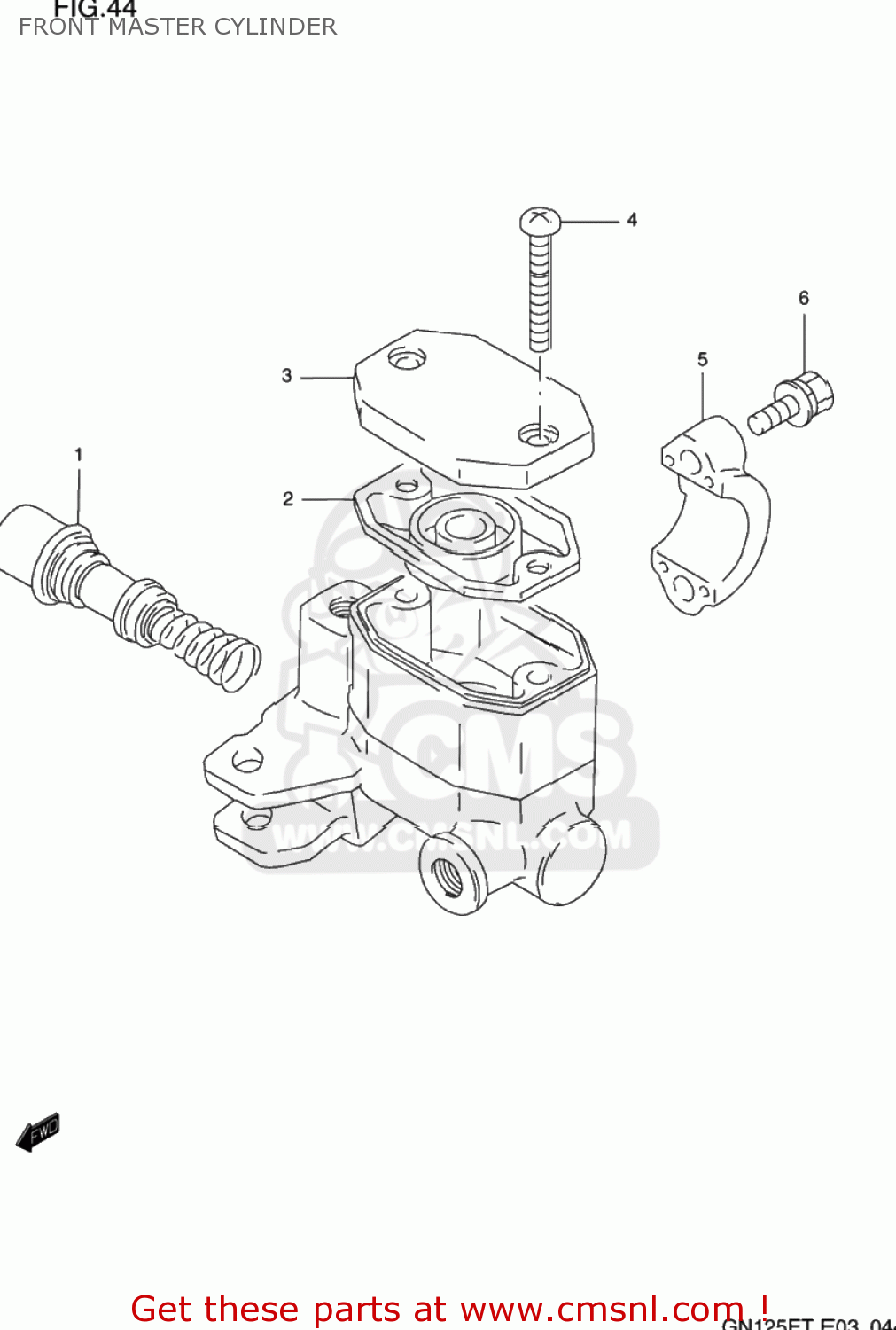

Front master cylinder diagram GN125E 1995 (S) USA (E03)

FRONT MASTER CYLINDER GN125E 1995 (S) USA (E03)

FRONT MASTER CYLINDER GN125E 1995 (S) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960005360
ref:

CYLINDER ASSY,FR MASTER

€ 263.00

1

5960036810
ref: 1

PISTON & CUP SET

€ 38.50

2

5966736500
ref: 2

DIAPHRAGM

€ 8.00

3

5966936510
ref: 3

CAP

€ 9.00

4

5969136500
ref: 4

SCREW

€ 1.50

5

5967105300
ref: 5

HOLDER

€ 13.00

6

0155006253
ref: 6
01550-0625A

BOLT

€ 2.50
