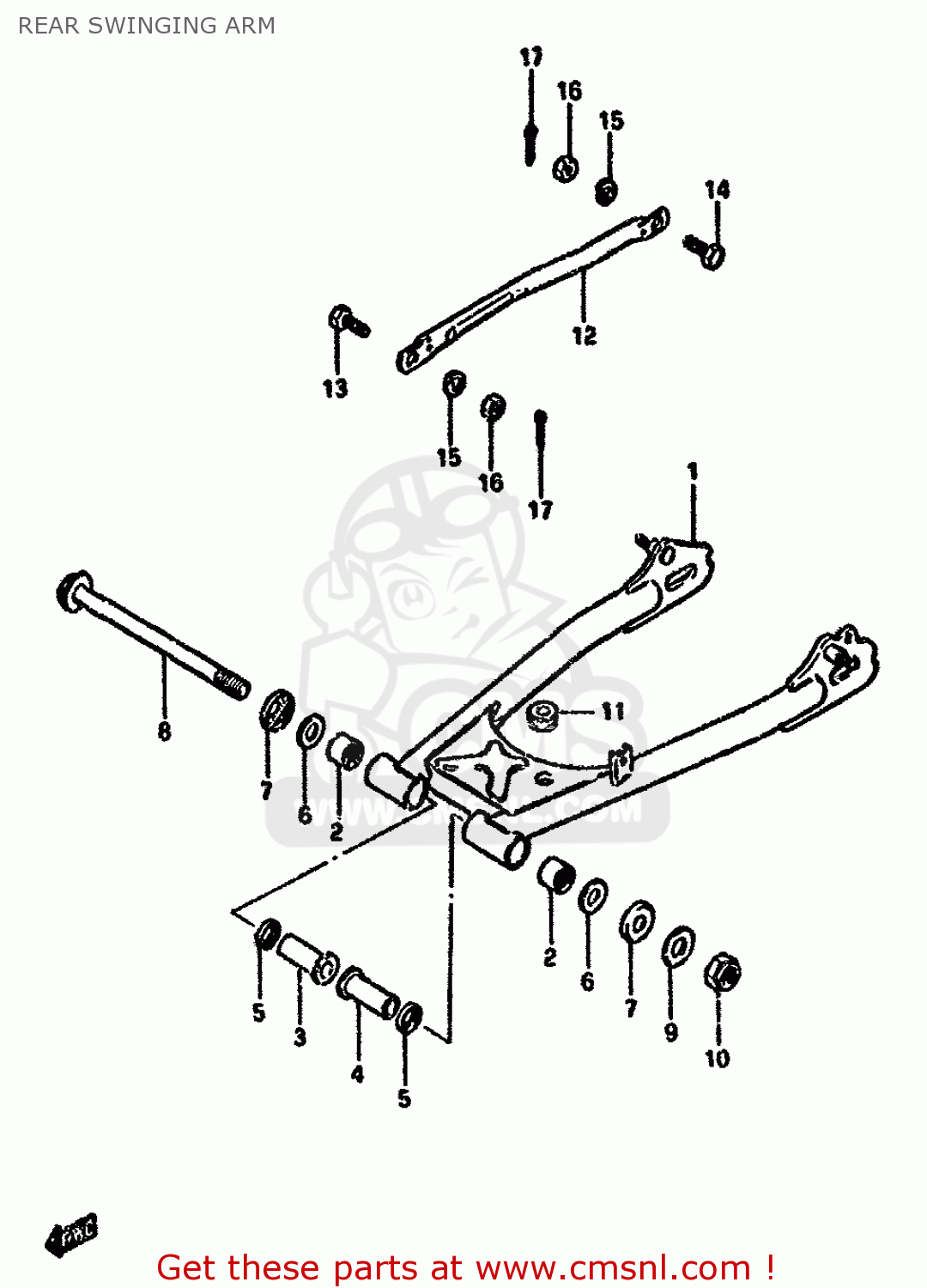

REAR SWINGING ARM

ref

part #

description

quantity

1

6100038300019
ref: 1

SWINGINGARM ASSY,RR

€ 210.00

2

0926320041
ref: 2

BEARING(20X27X20)

€ 15.00

3

6125138300
ref: 3

SPACER,RR SWGARM PIVOT,R

€ 17.00

4

6125238300
ref: 4

SPACER,RR SWGARM PIVOT,L

€ 18.50

5

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

6

0821115321
ref: 6

WASHER

€ 2.50

7

6126238300
ref: 7

COVER,RR SWINGINGARM PIVOT

€ 6.00

8

6121138300
ref: 8

SHAFT,REAR SWING ARM

€ 23.50

9-1

0832211148
ref: 9-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

9-2

0832201143
ref: 9-2
MODEL R

WASHER

€ 2.00

10

0831921148
ref: 10

NUT 14MM

€ 3.00

11

0932008020
ref: 11

CUSHION

€ 3.00

12

6431138301019
ref: 12

TORQUE LINK,REAR BRAKE (

€ 12.00

13

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

14

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

15

0916208008
ref: 15

WASHER,LOCK

€ 2.00

16

0914008008
ref: 16

NUT

€ 1.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
