HEADLAMP (E22,E25,E34,E39,E53)

GN250E 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

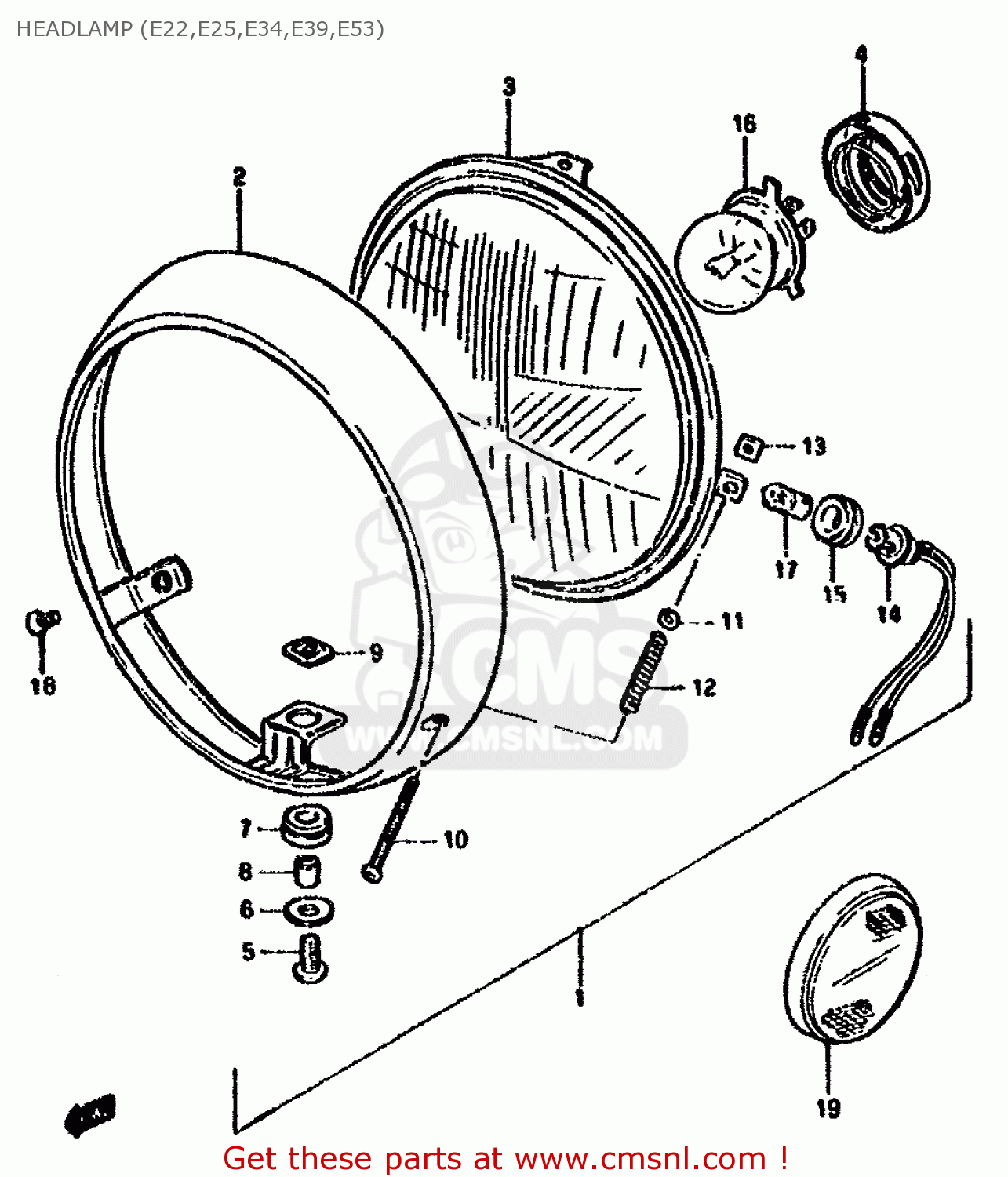

Headlamp (e22,e25,e34,e39,e53) diagram GN250E 1994 (R) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

3510038350999
ref: 1

HEADLAMP ASSY

€ 190.50

3511145221
ref: 2

RIM

€ 50.50

3512138340
ref: 3

LAMP UNIT

€ 91.50

3513601440
ref: 4

HOLDER,BULB

€ 7.00

0211205167
ref: 5

SCREW

€ 2.50

3513845230
ref: 6

WASHER

€ 2.00

3513945230
ref: 7

CUSHION

€ 1.50

3513345230
ref: 8

SPACER

€ 2.00

3515548510
ref: 9

NUT

€ 2.00

3515149020
ref: 10

SCREW HEAD LAM

€ 3.50

3515727630
ref: 11

WASHER

€ 2.50

3515448510
ref: 12

SPRING

€ 2.50

3515248510
ref: 13

NUT,HEADLAMP ADJUSTER

€ 3.00

3611849320
ref: 14

SOCKET

€ 12.00

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

0947112049
ref: 16
EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

0947112063
ref: 17
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

18-1

0912705013
ref: 18-1
MODEL F/J/K/L/M/N/P

SCREW(5X12)

€ 2.50

18-2

0212205127
ref: 18-2
MODEL R

SCREW

€ 2.50

3595015500
ref: 19
E25,E39

REFLEX REFLECTOR ASSY,FR SIDE

€ 13.50
