CAM CHAIN
GN400TX 1980 (T) USA (E03)

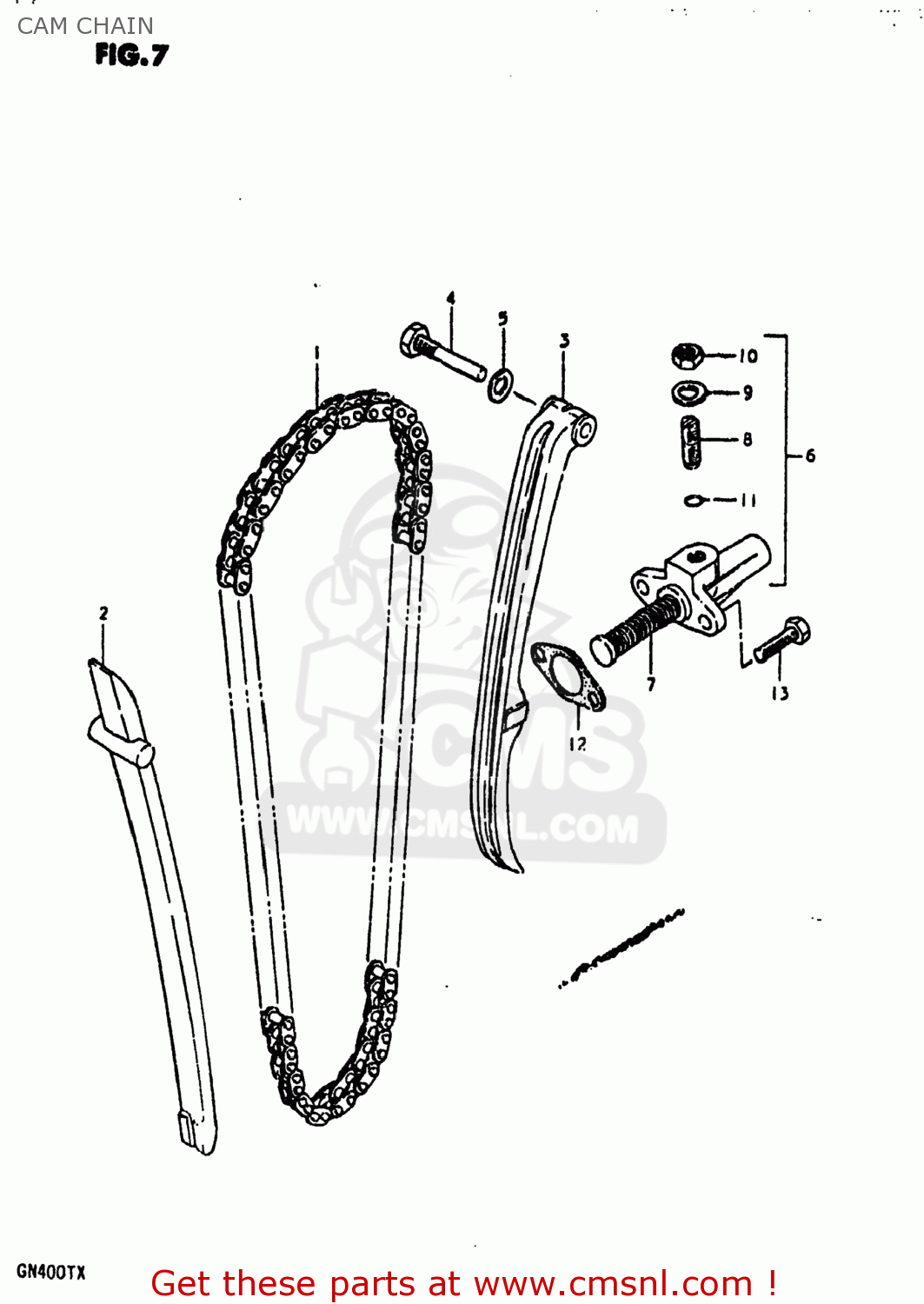

Cam chain diagram GN400TX 1980 (T) USA (E03)
CAM CHAIN GN400TX 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276032410
ref: 1
12760-32411
CHAIN,CAMSHAFT DRIVE
€ 102.00
2
1277132441
ref: 2
GUIDE,CAM CHAIN
€ 147.00
3
1281132440
ref: 3
TENSIONER,CAM CHAIN
€ 225.50
4
1281232410
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808008
ref: 5
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
6
1283032410
ref: 6
ADJUSTER,CAM CHAIN TENSIONER
€ 82.50
7
0944011009
ref: 7
SPRING
€ 2.50
8
1283845001
ref: 8
SCREW
€ 6.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0831012088
ref: 10
08310-00087
NUT
€ 2.00
11
0928006003
ref: 11
09280-06005
O-RING
€ 2.50
12
1283732400
ref: 12
12837-32410
GASKET,TENSIONER ADJUSTER (NAS)
€ 2.50
13
0110706208
ref: 13
01500-06207
BOLT
€ 2.00
