FUEL TANK (GN400T
GN400TX 1981 (X) USA (E03)

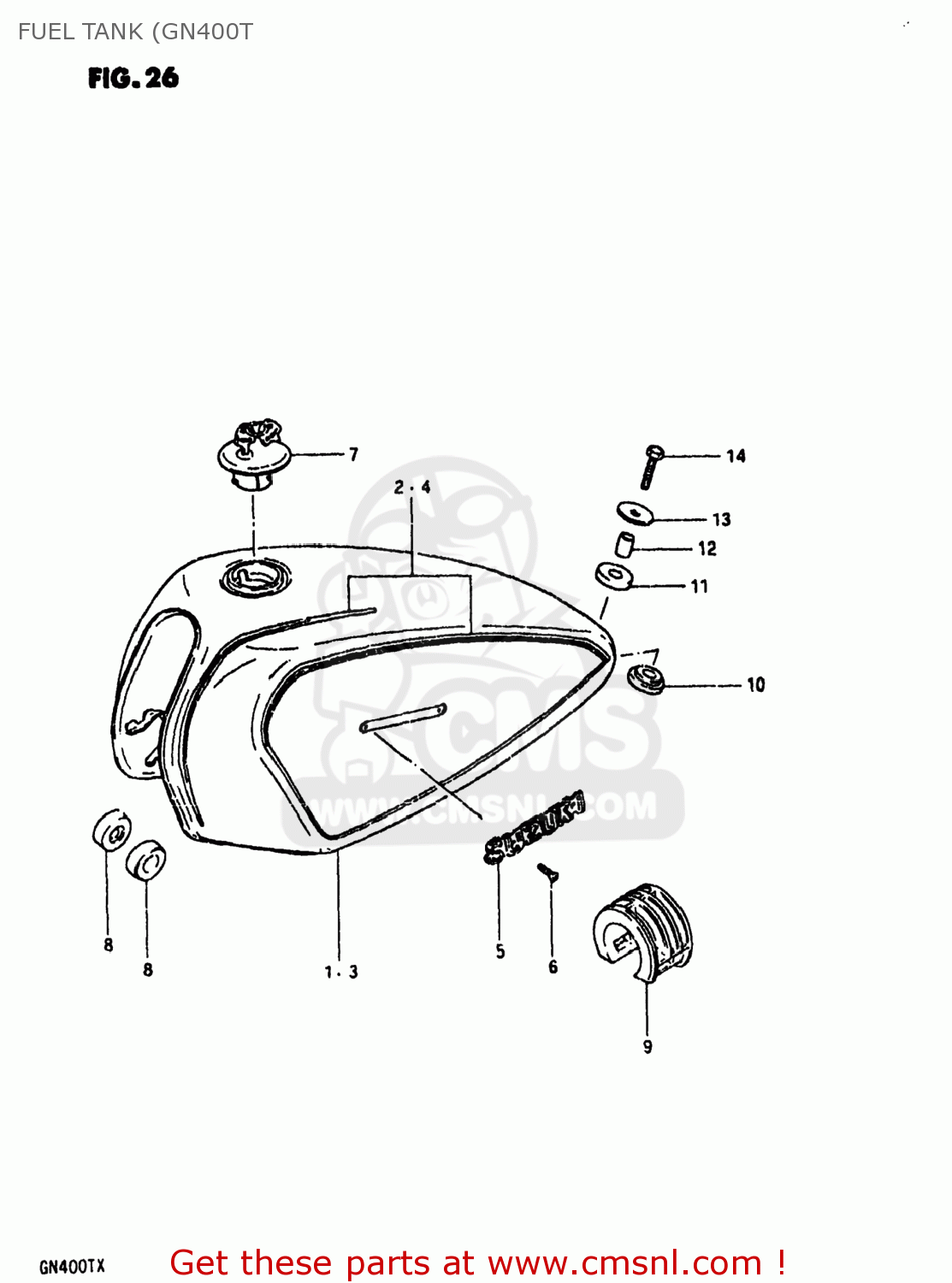

Fuel tank (gn400t diagram GN400TX 1981 (X) USA (E03)
FUEL TANK (GN400T GN400TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410037300019
ref: 1
44110-37302-13L
TANK ASSEMBLY,FUEL
€ 314.50
2
6811037301998
ref: 2
TAPE SET,FUEL TANK
€ 29.50
3
441003730010S
ref: 3
44110-37302-13L
TANK ASSEMBLY,FUEL
€ 314.50
4
681103730172T
ref: 4
TAPE SET,FUEL TANK
€ 19.00
5
6811144200
ref: 5
EMBLEM,FUEL TANK
€ 16.50
6
0213203065
ref: 6
02122-0306B
SCREW 3X6
€ 2.00
7
4420030702
ref: 7
44200-30830
CAP SET,FUEL TANK
€ 112.00
8
0932910014
ref: 8
CUSHION
€ 4.50
9
4454132410
ref: 9
CUSHION,FUEL TANK
€ 3.50
10
0932012010
ref: 10
09320-12013
CUSHION
€ 3.00
11
0932012023
ref: 11
09320-12017
CUSHION
€ 2.50
12
0918008032
ref: 12
09180-08143
SPACER (8.2X12X17)
€ 5.00
13
0916008002
ref: 13
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
14
0110708308
ref: 14
01500-08307
BOLT (8X30)
€ 2.50
