SPEEDOMETER - TACHOMETER
GS1000 1979 (N) USA (E03)

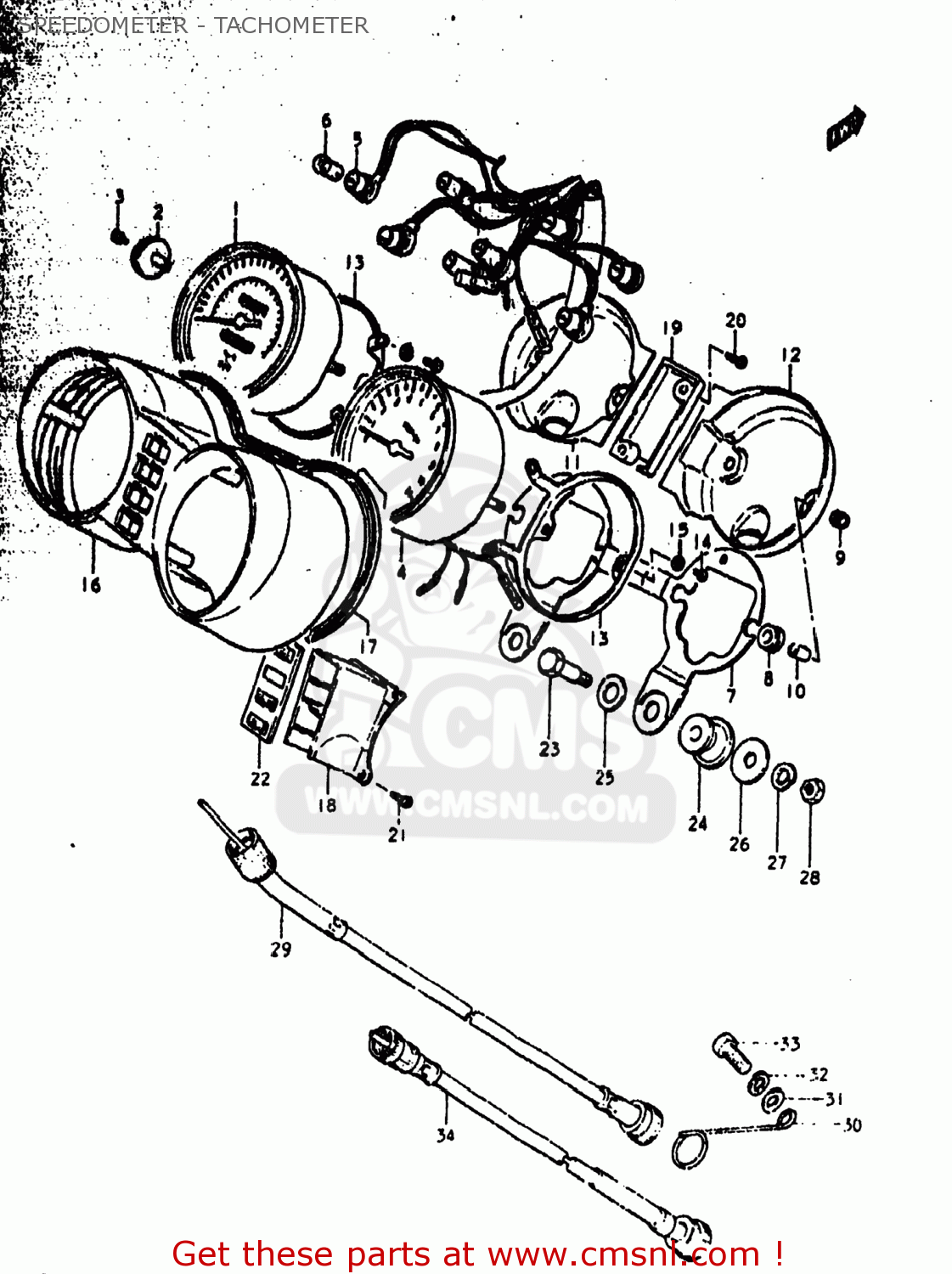

Speedometer - tachometer diagram GS1000 1979 (N) USA (E03)
SPEEDOMETER - TACHOMETER GS1000 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
3410049060
ref: 0-1
34100-49072
SPEEDOMETER ASSEMBLY
€ 267.00
0-2
3410049070
ref: 0-2
34100-49072
SPEEDOMETER ASSEMBLY
€ 267.00
0-3
3410049071
ref: 0-3
34100-49072
SPEEDOMETER ASSEMBLY
€ 267.00
1-1
3411049060
ref: 1-1
34110-49072
SPEEDOMETER ASSEMBLY
€ 225.50
1-2
3411049070
ref: 1-2
34110-49072
SPEEDOMETER ASSEMBLY
€ 225.50
1-3
3411049071
ref: 1-3
34110-49072
SPEEDOMETER ASSEMBLY
€ 225.50
2
3412449000
ref: 2
KNOB,TRIP METER
€ 5.50
3
3412549000
ref: 3
SCREW
€ 1.50
4
3421049060
ref: 4
34210-49040
TACHOMETER
€ 361.50
5
3417349000
ref: 5
SOCKET,SPEEDOMETER
€ 110.00
6
0947112001
ref: 6
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
7
3495049000
ref: 7
BRACKET,COMBINATION METER
€ 35.00
8
3418949000
ref: 8
CUSHION,SPEEDOMETER
€ 6.50
9
3418549000
ref: 9
08313-1005A
NUT
€ 1.50
10
3418749000
ref: 10
SPACER,SPEEDOMETER
€ 2.50
11
3419349000
ref: 11
COVER,METER,UNDER
€ 49.50
12
3429349000
ref: 12
PLATE,TACHOMETER UNDER
€ 36.50
13
3419549000
ref: 13
HOLDER,METER
€ 16.50
14
0211203088
ref: 14
02112-03087
SCREW
€ 1.50
15
0832121038
ref: 15
09162-03001
LOCK WASHER
€ 1.50
16
3415149000
ref: 16
CASE,METER
€ 71.50
17
3415649000
ref: 17
CUSHION,METER CASE
€ 7.00
18
3638249000
ref: 18
CASE,PILOT BULB
€ 12.50
19
3638349000
ref: 19
PLATE,PILOT BULB CASE
€ 16.50
20
3649249000
ref: 20
SCREW,PILOT CASE
€ 1.50
21
3418349000
ref: 21
SCREW,SPEEDOMETER
€ 2.00
22
3630049810
ref: 22
LENS SET,PILOT LAMP
€ 22.00
23
0911108031
ref: 23
BOLT(8X31)
€ 4.00
24
3495631000
ref: 24
34956-31001
CUSHION,METER
€ 4.50
25
0916010051
ref: 25
09160-10143
WASHER
€ 2.00
26
0916008002
ref: 26
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0831012088
ref: 28
08310-00087
NUT
€ 2.00
29
3491049010
ref: 29
34910-24500
CABLE ASSEMBLY,SPEEDOMETER
€ 25.00
30
3493837000
ref: 30
GUIDE,SPEEDOMETER CABLE
€ 14.50
31
0832211068
ref: 31
08322-0106B
WASHER 6MM
€ 2.00
32
0832121068
ref: 32
08321-01067
LOCK WASHER
€ 2.50
33
0110706168
ref: 33
01500-06167
BOLT, UPPER
€ 3.00
34
3494049011
ref: 34
34940-37311
CABLE ASSEMBLY,TACHOMETER
€ 36.50
