SEAT (GS1000N
GS1000N 1978 (C) USA (E03)

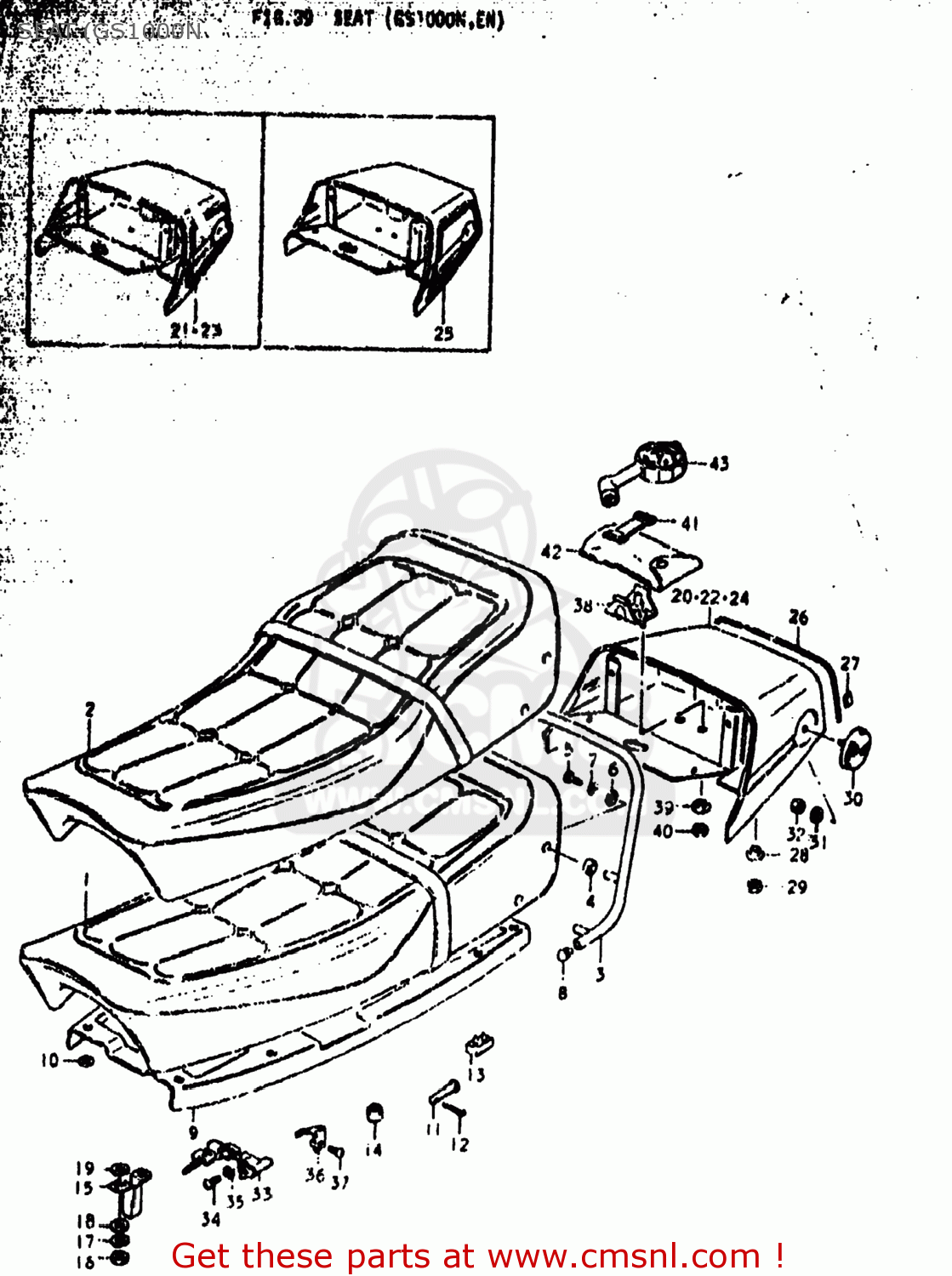

Seat (gs1000n diagram GS1000N 1978 (C) USA (E03)
SEAT (GS1000N GS1000N 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
451004901240P
ref: 1
SEAT ASSEMBLY
€ 436.00
2
451004900240P
ref: 2
SEAT ASSEMBLY
€ 188.50
3-1
4621149010
ref: 3-1
46211-49000
HANDLE,PILLION RIDER
€ 59.50
3-2
4621149000
ref: 3-2
HANDLE,PILLION RIDER
€ 59.50
4
4621249000
ref: 4
CUSHION
€ 15.00
5
0110708208
ref: 5
01500-08207
BOLT
€ 3.00
6
0832211088
ref: 6
08322-01087
WASHER
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
4621349000
ref: 8
END,SHEET HANDLE
€ 5.50
9-1
451914900008D
ref: 9-1
45191-49001
MOLDING,SEAT
€ 31.00
9-2
451914900005L
ref: 9-2
MOLDING,SEAT
€ 31.00
9-3
451914900008E
ref: 9-3
MOLDING,SEAT
€ 31.00
10
0914805006
ref: 10
NUT
€ 1.50
11
0920006018
ref: 11
PIN
€ 2.00
12
0411120158
ref: 12
04111-2015A
PIN
€ 1.50
13
0932108006
ref: 13
CUSHION
€ 3.00
14
0932110001
ref: 14
CUSHION
€ 2.50
15
4521347000
ref: 15
STRIKER,SEAT LOCK
€ 7.00
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0916006027
ref: 19
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
20
455104900108D
ref: 20
45510-49002
COVER,SEAT TAIL
€ 164.50
21
681014981066Y
ref: 21
TAPE SET
€ 13.50
22
455104900105L
ref: 22
45510-49002
COVER,SEAT TAIL
€ 164.50
23
681014981066Z
ref: 23
TAPE SET
€ 15.00
24
455104900108E
ref: 24
45510-49002
COVER,SEAT TAIL
€ 164.50
25
681014984066W
ref: 25
TAPE SET
€ 31.50
26
4552249000
ref: 26
GROMMET
€ 12.00
27
4552349000
ref: 27
CLIP,SEAT TAIL COVER M
€ 3.00
28
0916906016
ref: 28
WASHER
€ 1.50
29
0831921068
ref: 29
08319-2106A
NUT 6MM
€ 2.00
30
3597049030
ref: 30
REFLEX REFLECTOR,RR
€ 27.00
31
0832221058
ref: 31
08322-01057
WASHER
€ 2.50
32
0831011058
ref: 32
08310-00057
NUT
€ 2.50
33
9570045813
ref: 33
LOCK ASSY,SEAT
€ 59.50
34
0211205128
ref: 34
02112-05127
SCREW
€ 2.50
35
0832121058
ref: 35
08321-0105A
LOCK WASHER
€ 2.00
36
9572245000
ref: 36
SPRING,HELMET HOLDER
€ 8.50
37
0211205088
ref: 37
02112-05087
SCREW
€ 2.00
38
4155049000
ref: 38
HOLDER,TOOL
€ 27.50
39
0916906011
ref: 39
WASHER
€ 6.50
40
0831011068
ref: 40
08310-00067
NUT
€ 2.50
41
0946200072
ref: 41
BAND
€ 3.50
42
0980000191
ref: 42
09800-00192
TOOL SET
€ 50.00
43
9620041310
ref: 43
96200-41330
GAUGE ASSEMBLY,AIR PRESSURE
€ 77.50
