STAND

GS1150 1984 (E) USA (E03)

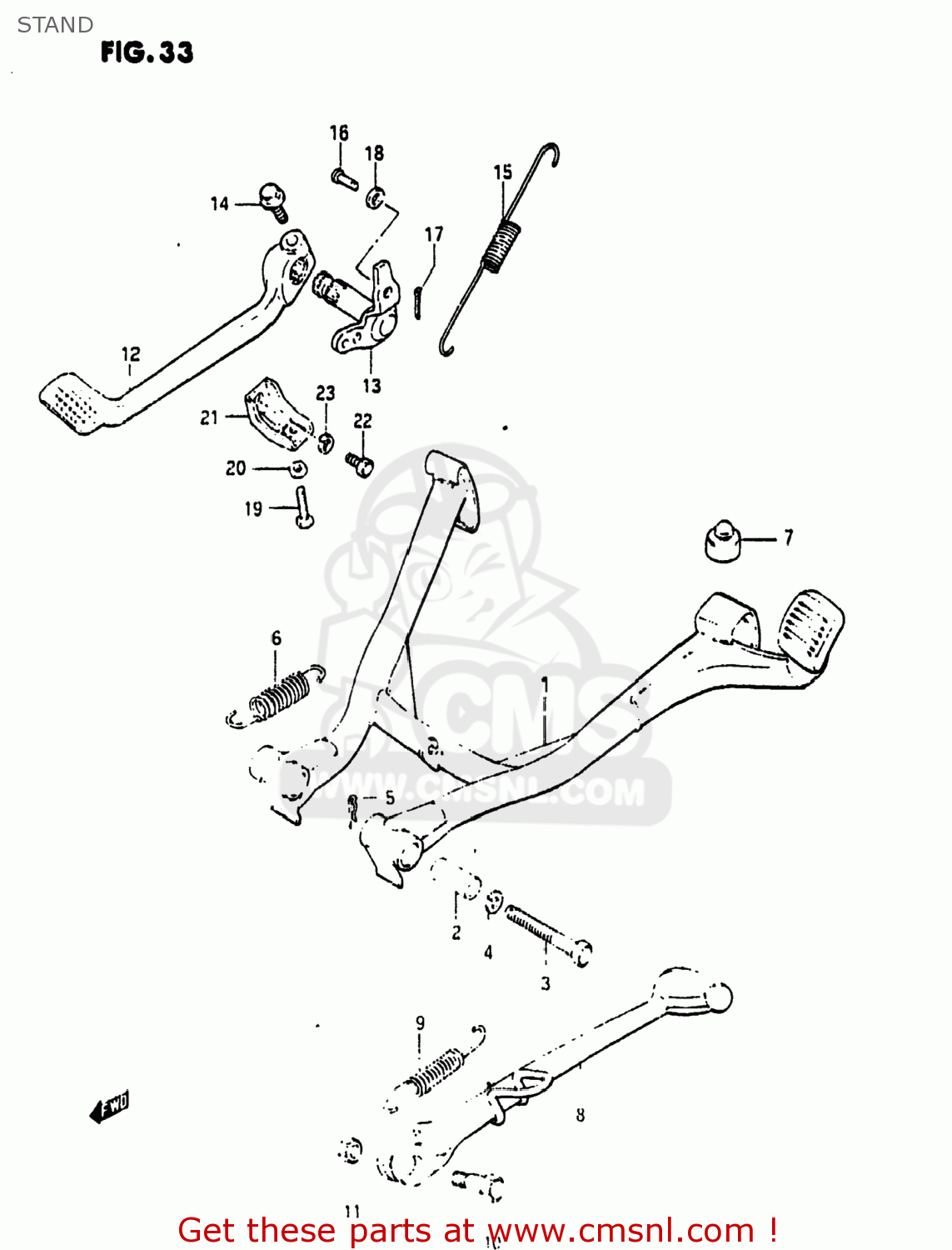

Stand diagram GS1150 1984 (E) USA (E03)

STAND GS1150 1984 (E) USA (E03)
STAND GS1150 1984 (E) USA (E03)
STAND GS1150 1984 (E) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4210000A01
ref: 1
STAND,CENTER
4210000A01
€ 105.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110034
ref: 3
09117-10029
BOLT
€ 6.50
4
0832121107
ref: 4
08321-01107
WASHER,LOCK,10
0832121107
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
0938510001
€ 1.50
6
0944318012
ref: 6
SPRING
0944318012
€ 9.00
7
0932110002
ref: 7
CUSHION(11.5X22X20)
0932110002
€ 2.00
8
4231000A00019
ref: 8
STAND,SIDE
4231000A00019
€ 42.00
9
0944315017
ref: 9
SPRING
0944315017
€ 4.00
10
0911110024
ref: 10
BOLT(10X32)
0911110024
€ 4.50
11
0831022106
ref: 11
08310-0010A
NUTM10X1.25X8
€ 2.00
12
4311100A00
ref: 12
PEDAL,BRAKE
4311100A00
€ 55.50
13
4312000A00
ref: 13
ARM,BRAKE PEDAL ROD
€ 34.50
14
0151708258
ref: 14
01550-08257
BOLT
0151708258
€ 2.50
15
0944312027
ref: 15
SPRING
0944312027
€ 7.50
16
0920006037
ref: 16
09200-06068
PIN
0920006037
€ 5.00
17
0411120158
ref: 17
04111-2015A
PIN
0411120158
€ 1.50
18
0832221067
ref: 18
08322-01067
WASHER
0832221067
€ 2.00
19
0910006055
ref: 19
BOLT(6X25)
€ 2.50
20
0831011067
ref: 20
08310-00067
NUT 6MM
€ 2.50
21
4326100A00
ref: 21
BRACKET, BRAKE ADJUSTE
€ 0.00
22
0110706127
ref: 22
01500-06127
BOLT
0110706127
€ 2.00
23
0832121067
ref: 23
08321-01067
WASHER,LOCK
0832121067
€ 2.50
