SIGNAL GENERATOR
GS1150ES3 1984 (E) USA (E03)

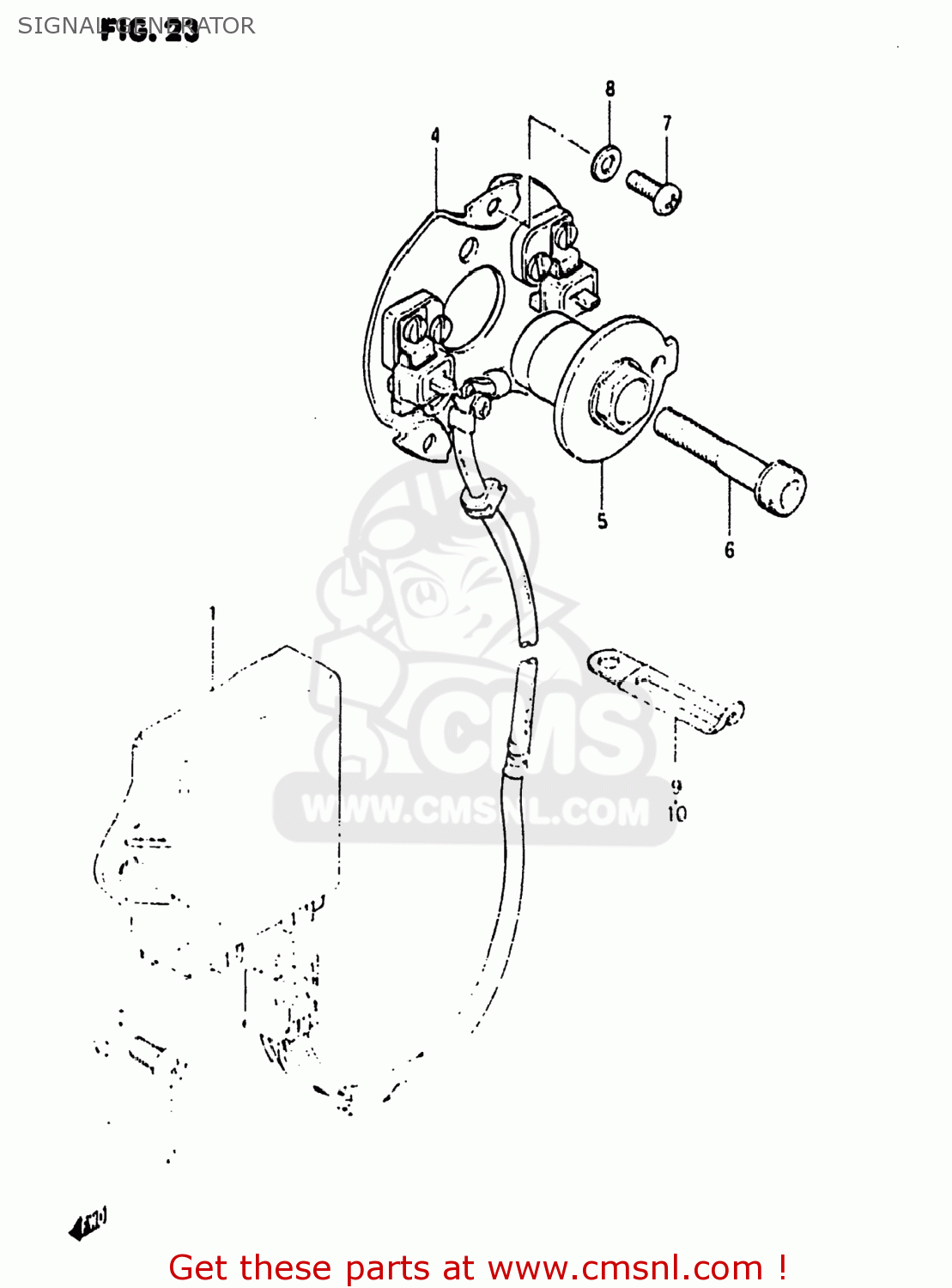

Signal generator diagram GS1150ES3 1984 (E) USA (E03)
SIGNAL GENERATOR GS1150ES3 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290000A10
ref: 1
IGNITER UNIT ASSEMBLY
€ 613.50
2
0211206166
ref: 2
02112-0616A
SCREW
€ 2.00
3
0832221066
ref: 3
08322-0106B
WASHER, LOWER
€ 2.00
4
3311049421
ref: 4
33110-493A0
STATOR,SIGNAL GENERATOR
€ 360.50
5
3312000A10
ref: 5
ROTOR COMP,SIGNAL
€ 108.00
6
0711008456
ref: 6
07130-0845B
BOLT
€ 3.00
7
0912505024
ref: 7
SCREW(5X12)
€ 2.00
8
0916005028
ref: 8
08322-01057
WASHER(5.5X10X0.8)
€ 2.00
9
0940406401
ref: 9
09404-06432
CLAMP L:35
€ 2.50
10
0940408402
ref: 10
09404-08420
CLAMP
€ 3.50
