OIL COOLER
GS1150ES3 1985 (F) USA (E03)

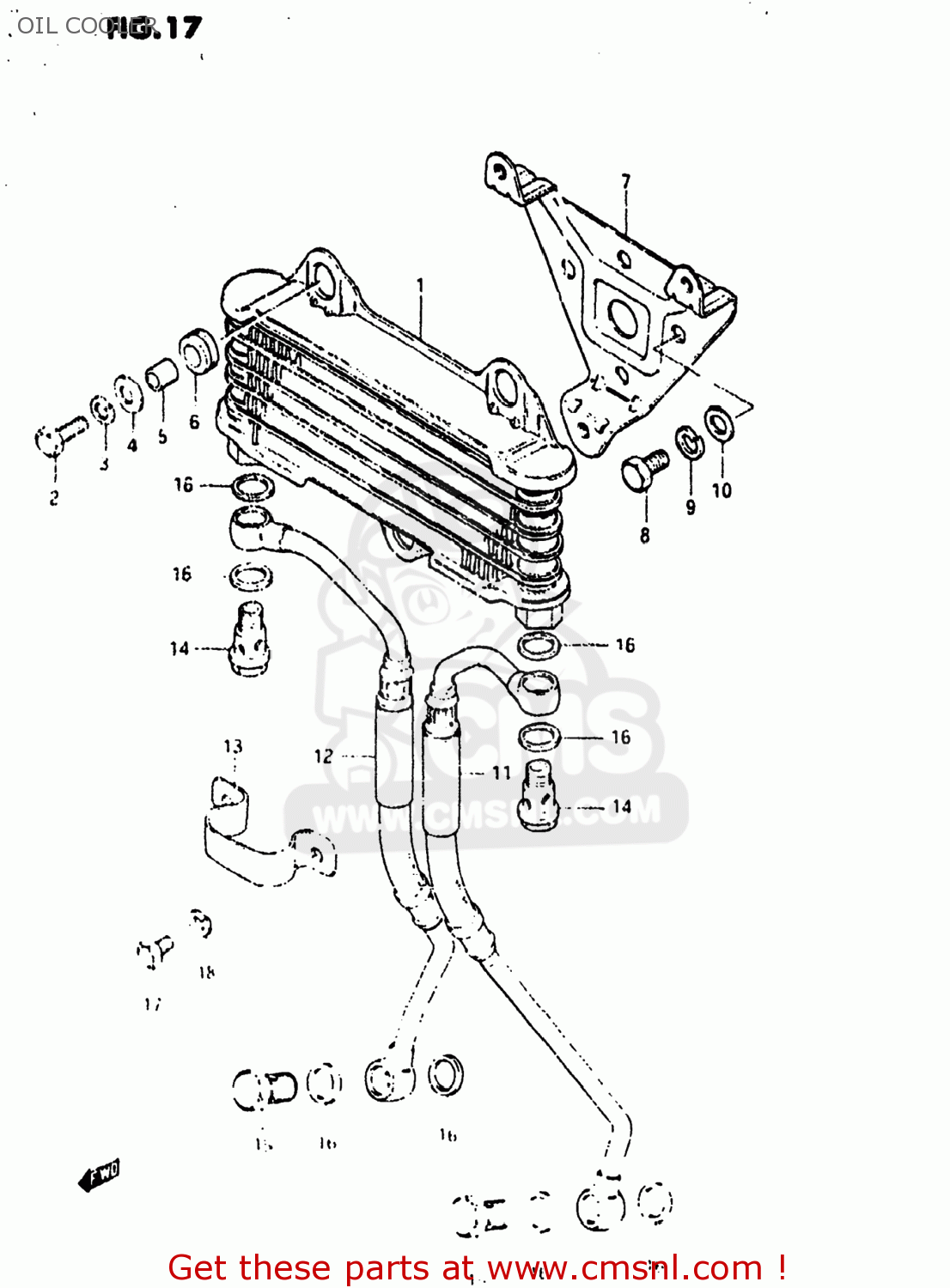

Oil cooler diagram GS1150ES3 1985 (F) USA (E03)
OIL COOLER GS1150ES3 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660000A00
ref: 1
COOLER ASSEMBLY,ENGINE OIL
€ 410.50
2
0110706255
ref: 2
01500-0625A
BOLT
€ 2.50
3
0832121064
ref: 3
08321-0106A
WASHER,LOCK
€ 2.00
4
0916006039
ref: 4
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
5
0918006030
ref: 5
09180-06310
SPACER (6.8X10X10)
€ 2.00
6
0932010015
ref: 6
CUSHION
€ 2.50
7
1662000A00
ref: 7
BRACKET,OIL COOLER
€ 0.00
8
0110708165
ref: 8
01500-0816B
BOLT
€ 2.00
9
0832121084
ref: 9
08321-0108A
WASHER,LOCK,8.
€ 2.50
10
0832211084
ref: 10
08322-0108A
WASHER
€ 1.50
11
1646000A00
ref: 11
HOSE,ENGINE OIL,LEFT
€ 79.00
12
1647000A00
ref: 12
HOSE,ENGINE OIL,RIGHT
€ 85.50
13
1663100A00
ref: 13
CLAMP,OIL HOSE
€ 4.00
14
0936012004
ref: 14
09360-12006
BOLT UNION
€ 13.50
15
0936014005
ref: 15
BOLT UNION
€ 20.50
16
0916814011
ref: 16
GASKET(14X20X1.5) (NAS)
€ 2.00
17
0110706125
ref: 17
01500-0612A
BOLT
€ 2.00
18
0832121064
ref: 18
08321-0106A
WASHER,LOCK
€ 2.00
