LEFT HANDLE SWITCH (GS1150EF/EF2/EG)

GS1150ESE 1984 (E) USA (E03)

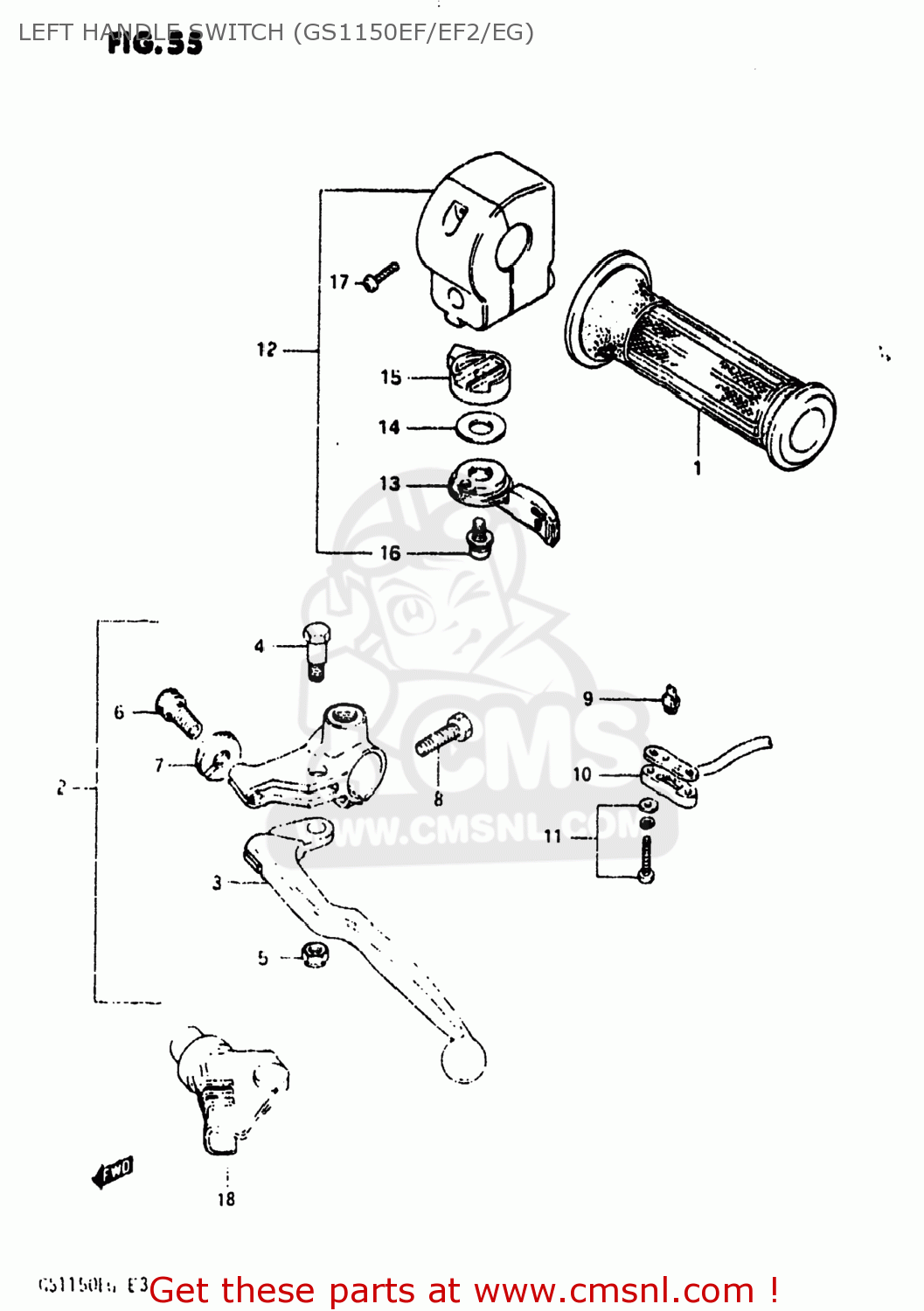

Left handle switch (gs1150ef/ef2/eg) diagram GS1150ESE 1984 (E) USA (E03)

LEFT HANDLE SWITCH (GS1150EF/EF2/EG) GS1150ESE 1984 (E) USA (E03)

LEFT HANDLE SWITCH (GS1150EF/EF2/EG) GS1150ESE 1984 (E) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5721149500
ref: 1

GRIP,L

€ 9.00

2

5750033430
ref: 2

CLUTCH LEVER & SWITCH ASSY

€ 51.50

3

5762033410
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743133450
ref: 4
57531-14A00

BOLT,LEVER

€ 8.50

5

0831921065
ref: 5
08319-2106B

NUT

€ 2.50

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

0110706205
ref: 8
01500-0620A

BOLT

€ 2.00

9

5746518601
ref: 9

CONTACT,SWITCH

€ 4.50

10

5748133010
ref: 10

COVER,FR BK TERMINAL BASE

€ 19.50

11

5748449110
ref: 11

SCREW

€ 1.50

12

3740049530
ref: 12
37400-45373

SWITCH ASSEMBLY,HANDLE,LEFT

€ 154.00

13

5872127503
ref: 13

LEVER,STARTER

€ 8.00

14

5872203010
ref: 14

WASHER,ADJUSTER

€ 3.00

15

3757249441
ref: 15

BODY,STARTER LEVER

€ 15.50

16

3757449440
ref: 16
02112-7516A

SCREW,CHOKE LE

€ 2.50

17

0211205165
ref: 17
02112-05164

SCREW

€ 2.00

18

5766133400
ref: 18

COVER,CLUTCH LEVER

€ 7.50
