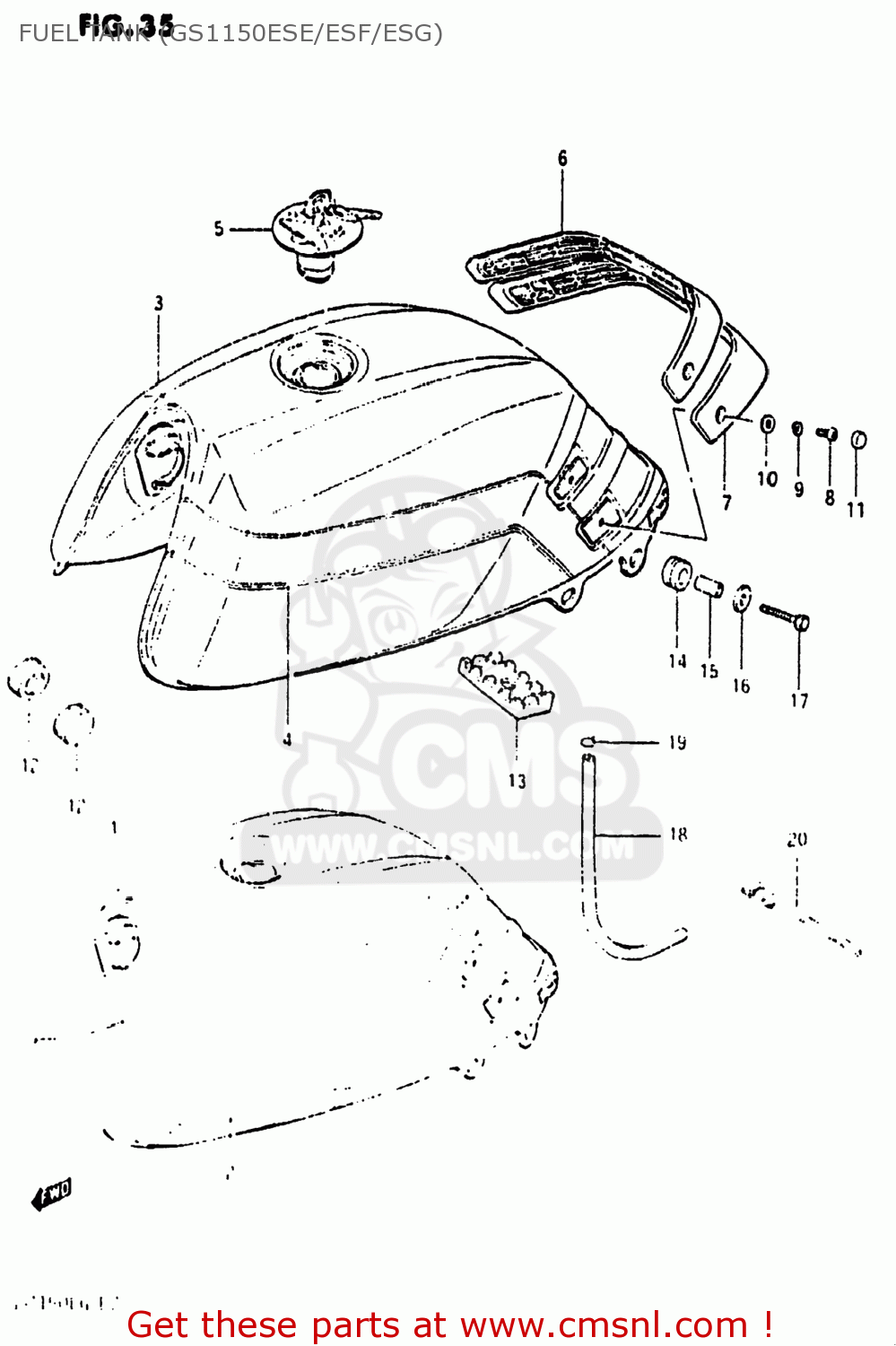

FUEL TANK (GS1150ESE/ESF/ESG)

ref

part #

description

quantity

1-1

4410000A407ED
ref: 1-1
44110-00A01-13L

TANK ASSEMBLY,FUEL

€ 441.00

1-2

4410000A4091J
ref: 1-2
44110-00A01-13L

TANK ASSEMBLY,FUEL

€ 441.00

2-1

6811000A007EL
ref: 2-1

TAPE SET,FUEL TANK

€ 26.00

2-2

6811000A0093K
ref: 2-2

TAPE SET,FUEL TANK

€ 63.00

3-1

4910000A007JH
ref: 3-1
44110-00A01-13L

TANK ASSEMBLY,FUEL

€ 441.00

3-2

4910000A307JH
ref: 3-2
44110-00A10-13L

TANK ASSEMBLY,FUEL

€ 286.50

3-3

4910000A007JJ
ref: 3-3
44110-00A01-13L

TANK ASSEMBLY,FUEL

€ 441.00

3-4

4910000A307JJ
ref: 3-4
44110-00A10-13L

TANK ASSEMBLY,FUEL

€ 286.50

4-1

6811000A207JF
ref: 4-1
68110-00A21-019

TAPE SET,FUEL TANK

€ 17.50

4-2

6811000A207JG
ref: 4-2

TAPE SET,FUEL TANK

€ 29.50

5-1

4420043410KEY
ref: 5-1

CAP ASSY,FUEL TANK

€ 125.50

5-2

4420006A20KEY
ref: 5-2
44200-14830

CAP SET,FUEL TANK

€ 93.00

6

4425100A0058R
ref: 6

KNEE GRIP,FUEL TANK,UPPER

€ 39.00

7

4425200A0058R
ref: 7
44252-00A00-57S

KNEE GRIP,FUEL TANK,LOWER

€ 62.50

8

0211205088
ref: 8
02112-05087

SCREW

€ 2.00

9

0832121057
ref: 9
08321-0105A

LOCK WASHER

€ 2.00

10

0832221057
ref: 10
08322-01057

WASHER

€ 2.50

11

4425300A0058R
ref: 11
44253-00A00-57S

CAP,KNEE GRIP

€ 4.00

12

0932910016
ref: 12

CUSHION

€ 3.00

13

4454134500
ref: 13

CUSHION,FUEL TANK CTR

€ 13.00

14

0932009017
ref: 14

CUSHION

€ 3.00

15

0918006107
ref: 15
09180-06308

SPACER (6.4X9X20)

€ 3.00

16

0916006030
ref: 16
09160-06136

WASHER (6.5X29X1.6)

€ 2.50

19

0940108402
ref: 19

CLIP

€ 1.50

20

0940718401
ref: 20

CLAMP(L:187)

€ 2.00

27

0110706307
ref: 27
01500-06307

BOLT 6X30

€ 2.50

28

0934305165
ref: 28
09352-50823-00B

HOSE,FUEL

€ 13.00
