REAR MASTER CYLINDER
GS1150ESF 1985 (F) USA (E03)

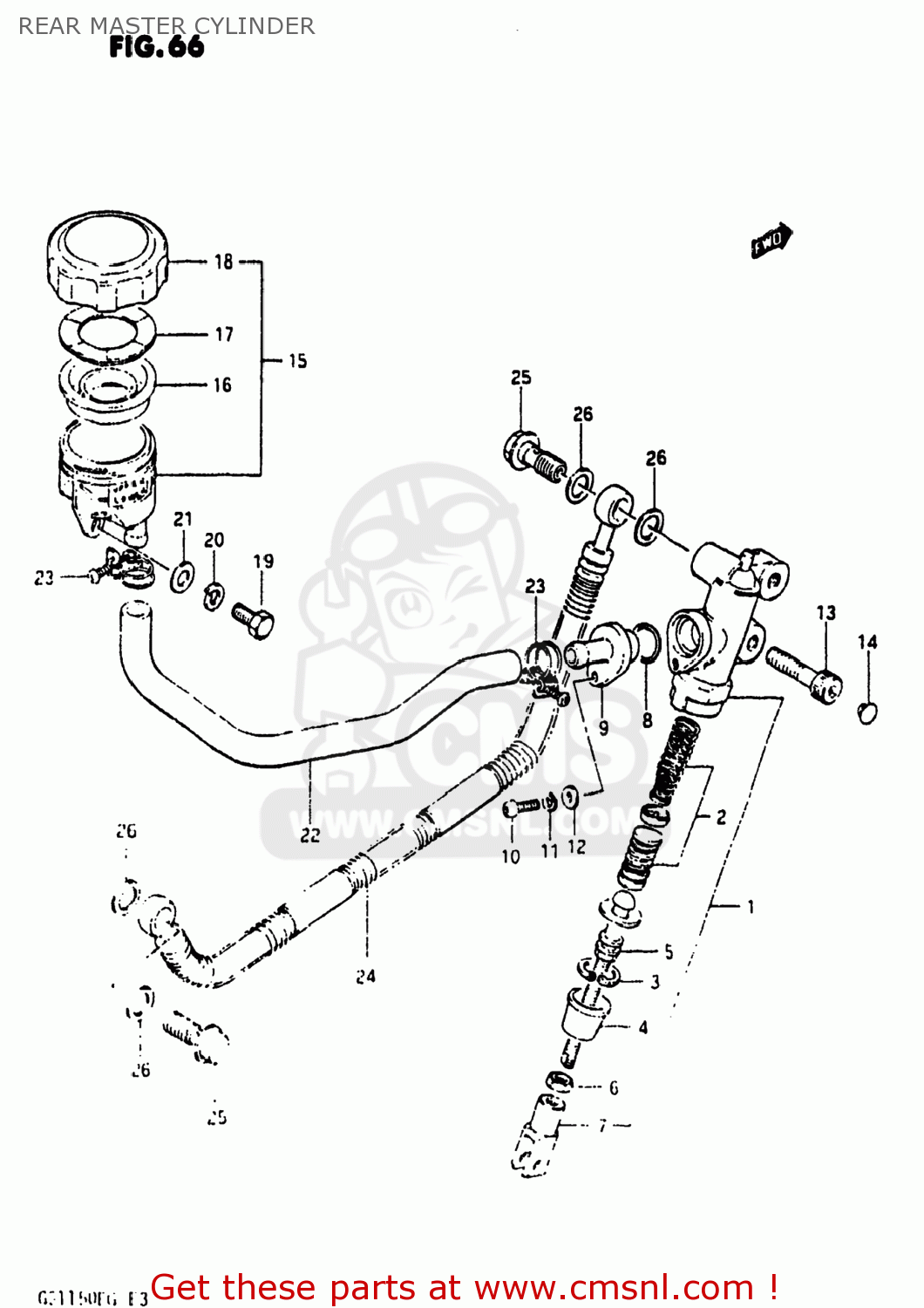

Rear master cylinder diagram GS1150ESF 1985 (F) USA (E03)
REAR MASTER CYLINDER GS1150ESF 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960000A00
ref: 1
69600-00A01
CYLINDER ASSEMBLY,REAR MASTER
€ 178.00
2
6960034810
ref: 2
PISTON/CUP SET
€ 36.50
3
5116270040
ref: 3
CIRCLIP
€ 3.00
4
6969100A00
ref: 4
BOOT
€ 3.50
5
6967000A00
ref: 5
ROD,PUSH
€ 13.00
6
6969334300
ref: 6
69693-05A00
NUT,MASTER CYLINDER
€ 1.50
7
6969234300
ref: 7
YOKE
€ 11.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967200A00
ref: 9
CONNECTOR
€ 5.50
10
0211204124
ref: 10
02112-0412A
SCREW
€ 1.50
11
0832121045
ref: 11
08321-0104A
LOCK WASHER
€ 2.00
12
0832221045
ref: 12
08322-0104A
WASHER
€ 5.00
13
0711008358
ref: 13
07130-08357
BOLT, FRONT RH
€ 4.50
14
0925006008
ref: 14
CAP(OD:10)
€ 3.00
15
6974034250
ref: 15
69740-31D00
TANK ASSEMBLY,RESERVOIR
€ 27.50
16
5966718441
ref: 16
DIAPHRAGM
€ 8.50
17
5966818441
ref: 17
PLATE,DIAPHRAGM
€ 3.50
18
5966939110
ref: 18
CAP
€ 16.00
19
0110706165
ref: 19
01500-0616A
BOLT 6X16
€ 2.00
20
0832121064
ref: 20
08321-0106A
WASHER,LOCK
€ 2.00
21
0832221064
ref: 21
08322-0106B
WASHER
€ 2.00
22
6973100A00
ref: 22
HOSE,RESERVOIR TANK
€ 15.50
23
0940016302
ref: 23
09400-16304
CLAMP
€ 4.50
24
6948000A01
ref: 24
HOSE,REAR BRAKE
€ 93.50
25
0936010017
ref: 25
BOLT UNION
€ 6.50
26
0916110009
ref: 26
WASHER(10X15X1.5)
€ 2.00
