SEAT
GS1150ESF 1986 (G) USA (E03)

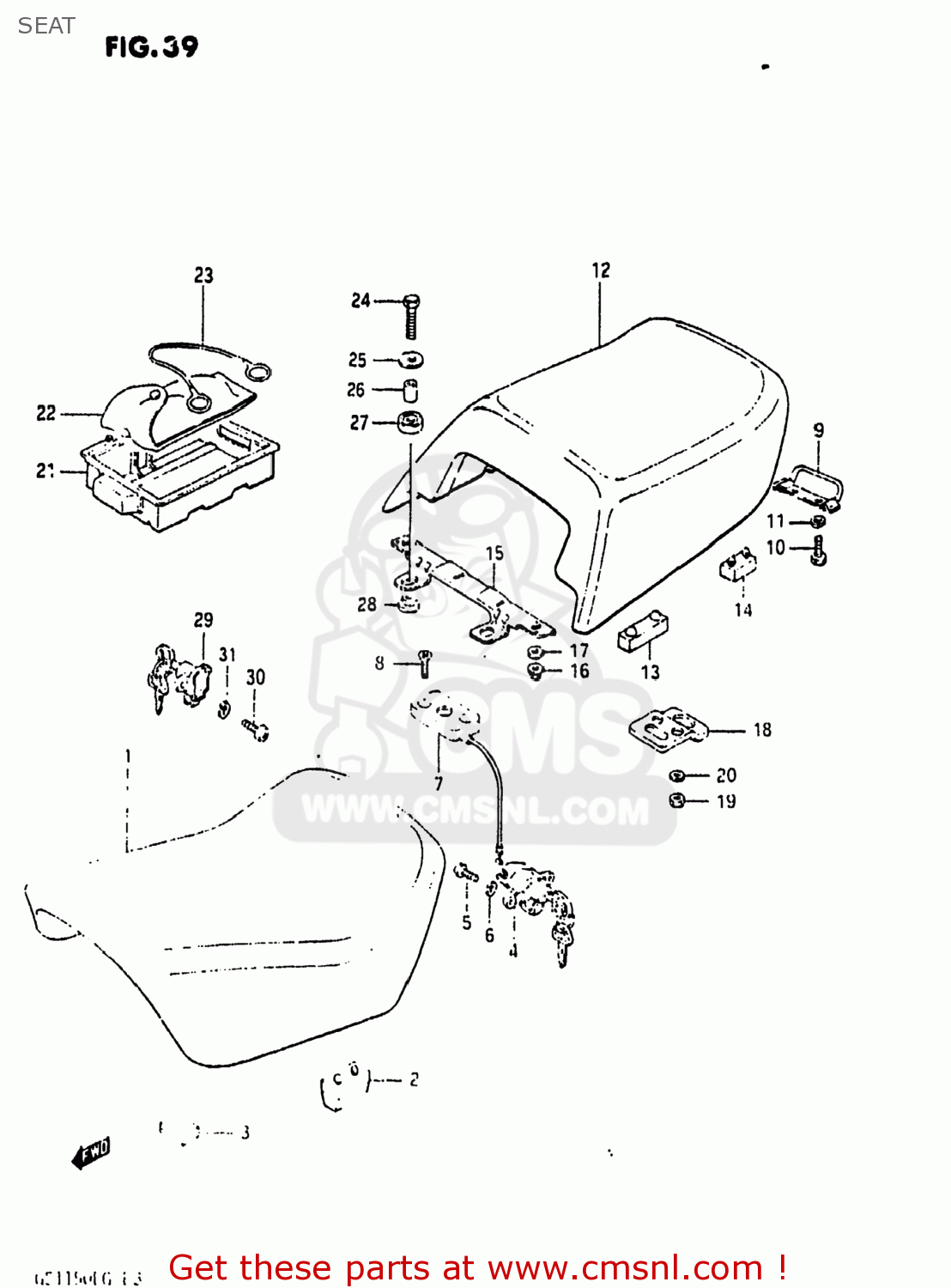

Seat diagram GS1150ESF 1986 (G) USA (E03)
SEAT GS1150ESF 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510000A0058R
ref: 1-1
45100-00A01-58R
SEAT ASSEMBLY
€ 150.50
1-2
4510000A0158R
ref: 1-2
SEAT ASSEMBLY
€ 150.50
2
4514900A00
ref: 2
CUSHION,SEAT
€ 0.00
3
4525515510
ref: 3
CUSHION,TOOL(40X30X15)
€ 4.00
4
4570000A00KEY
ref: 4
LOCK ASSEMBLY,SEAT & HELMET
€ 61.00
5
0211206126
ref: 5
02112-0612A
SCREW
€ 1.50
6
0832121066
ref: 6
08321-0106A
WASHER,LOCK
€ 2.00
7
4522000A00
ref: 7
BRACKET,SEAT SUPPORT
€ 19.50
8
0212206255
ref: 8
02122-0625A
SCREW
€ 2.00
9
4521000A00
ref: 9
45230-00A00
PLATE,SEAT HOOK,REAR
€ 4.50
10
0110706126
ref: 10
01500-0612A
BOLT
€ 2.00
11
0832121066
ref: 11
08321-0106A
WASHER,LOCK
€ 2.00
12
4530000A1058R
ref: 12
SEAT ASSEMBLY,PILLION
€ 142.00
13
4514943500
ref: 13
CUSHION,SEAT
€ 3.00
14
0932108012
ref: 14
CUSHION(40X23X12.7)
€ 4.50
15
4532100A00
ref: 15
PLATE,PILLION SEAT,FRONT
€ 0.00
16
0831011066
ref: 16
08310-0006A
NUT
€ 2.00
17
0832121066
ref: 17
08321-0106A
WASHER,LOCK
€ 2.00
18
4533000A00
ref: 18
PLATE, SEAT HOOK REAR
€ 0.00
19
0831011066
ref: 19
08310-0006A
NUT
€ 2.00
20
0832121066
ref: 20
08321-0106A
WASHER,LOCK
€ 2.00
21
4511500A00
ref: 21
TOOL BOX
€ 11.50
22
0980000275
ref: 22
09800-21016
TOOL SET
€ 53.00
23
4515100A00
ref: 23
BAND,TOOL BOX
€ 4.00
24
0912806010
ref: 24
SCREW(6X30)
€ 1.50
25
0916006004
ref: 25
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
26
0918006072
ref: 26
09180-06271
SPACER
€ 2.00
27
0932010020
ref: 27
CUSHION
€ 4.00
28
0932014013
ref: 28
CUSHION
€ 3.00
29
9570000A00KEY
ref: 29
LOCK ASSEMBLY,HELMET
€ 26.00
30
0211206126
ref: 30
02112-0612A
SCREW
€ 1.50
31
0832121066
ref: 31
08321-0106A
WASHER,LOCK
€ 2.00
