REAR WHEEL
GS1150ESG 1985 (F) USA (E03)

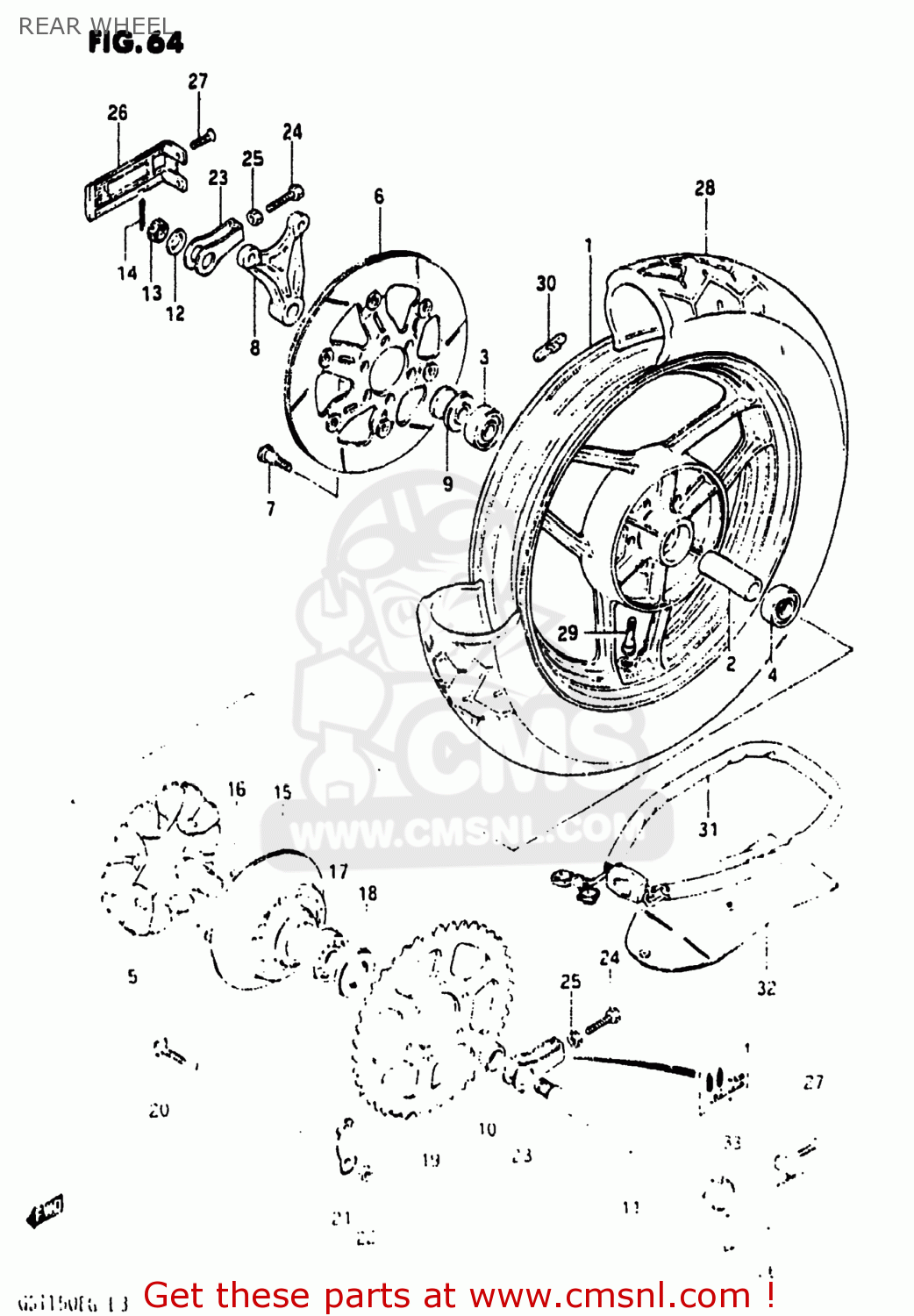

Rear wheel diagram GS1150ESG 1985 (F) USA (E03)
REAR WHEEL GS1150ESG 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411100A00291
ref: 1-1
CASTING WHEEL,REAR 3.00
€ 580.00
1-2
6411100A20291
ref: 1-2
CASTING WHEEL,REAR 3.50
€ 538.00
2
0918020093
ref: 2
SPACER (20.5X28X83)
€ 6.00
3
0813362047
ref: 3
BEARING WHEEL REAR(20X47X14)
€ 22.50
4
0815362047
ref: 4
09262-20042
BEARING, LH
€ 21.00
5
6465131000
ref: 5
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
6
6921000A01
ref: 6
DISC,RR BRAKE
€ 215.00
7-1
0910608041
ref: 7-1
09106-08148
BOLT
€ 6.00
7-2
0910608062
ref: 7-2
09106-08148
BOLT
€ 6.00
8
6972147011
ref: 8
BRACKET,RR,CALIPER
€ 29.00
9
6474045002
ref: 9
SPACER,RR AXLE,R
€ 15.00
10
0918020094
ref: 10
SPACER (20X33X13.3)
€ 10.50
11
6471100A00
ref: 11
AXLE,REAR
€ 47.50
12
0916019020
ref: 12
WASHER (19X32X2.6)
€ 0.00
13
0831441188
ref: 13
08314-40187
NUT 18MM
€ 6.00
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
6461131002
ref: 15
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
16
6473331000
ref: 16
64733-3100V
SPACER,REAR HUB BEARING
€ 20.00
17
0811363050
ref: 17
09262-25073
BEARING
€ 21.50
18
0928533001
ref: 18
SEAL,OIL(33X62X7)
€ 20.00
19
6451149001
ref: 19
64511-49002
SPROCKET,REAR
€ 114.00
20
0910510001
ref: 20
BOLT(10X35.5)
€ 3.50
21
0916910007
ref: 21
WASHER
€ 7.50
22
0914010026
ref: 22
09140-10026-XC0
NUT
€ 2.00
23
6141000A00
ref: 23
ADJUSTER CHAIN
€ 13.50
24
0910408018
ref: 24
09104-08034
BOLT 8X50
€ 3.00
25
0831012088
ref: 25
08310-00087
NUT
€ 2.00
26
6144100A00
ref: 26
COVER,CHAIN ADJUSTER
€ 30.00
27
0213205167
ref: 27
02122-05167
SCREW 5X16
€ 2.00
28-1
6510000A35
ref: 28-1
TIRE
€ 150.50
28-2
6510000A10
ref: 28-2
TIRE 130/90-17 (T/L)
€ 0.00
29
4313075150
ref: 29
43130-78030
VALVE,TIRE
€ 14.50
30-1
5541100A00291
ref: 30-1
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
30-2
5541200A00291
ref: 30-2
55412-17G00
BALANCER,WHEEL
€ 7.00
30-3
5541300A00291
ref: 30-3
55413-00A01
BALANCER,WHEEL
€ 4.00
31
9414015501KEY
ref: 31
94100-27821
CHAIN LOCK ASSY
€ 53.50
32
9414131301
ref: 32
BAG,CHAIN LOCK
€ 0.00
33
6837749000
ref: 33
LABEL,CHAIN WEAR INDICATOR
€ 3.50
