CUSHION LEVER

GS1150ESG 1986 (G) USA (E03)

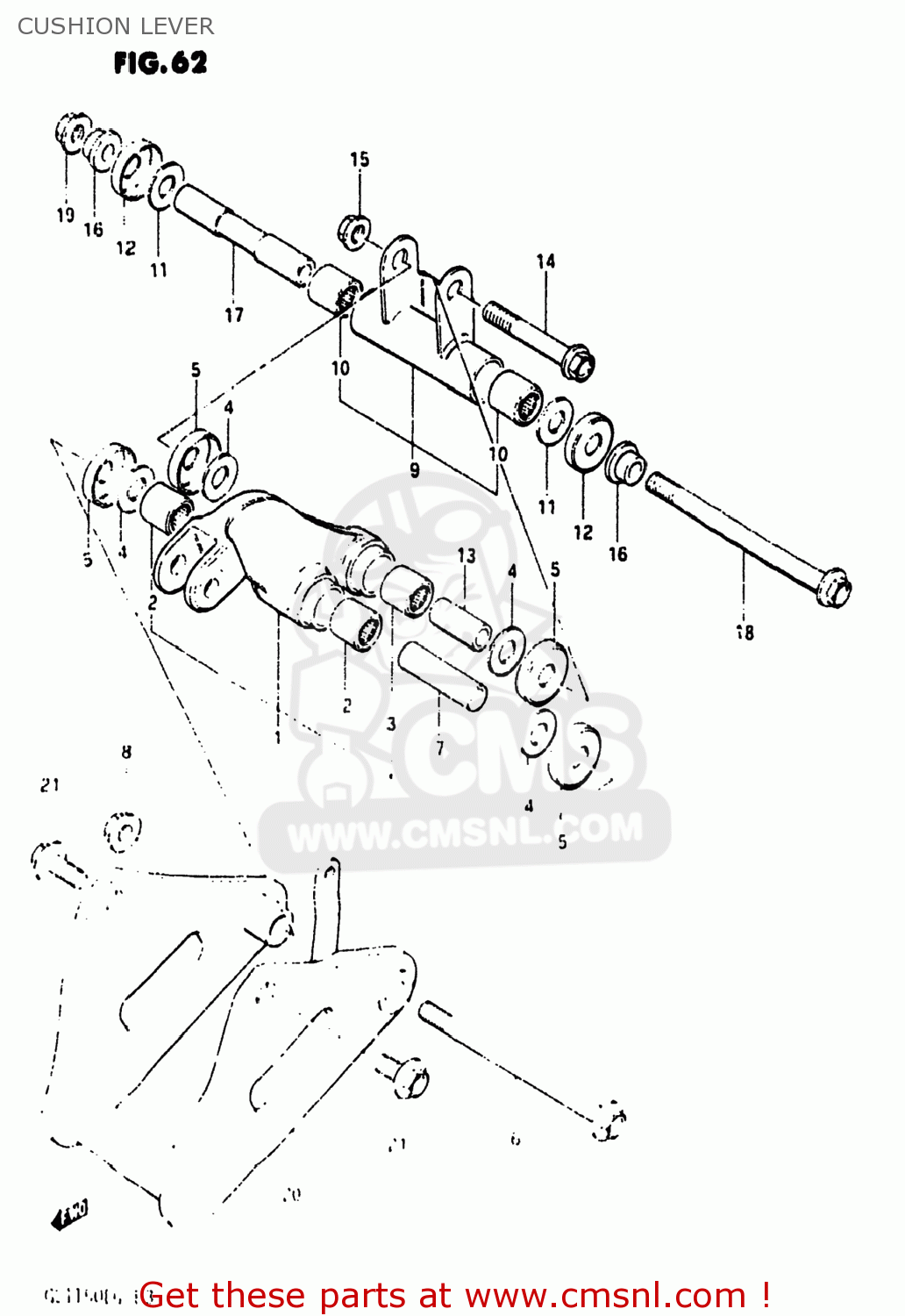

Cushion lever diagram GS1150ESG 1986 (G) USA (E03)

CUSHION LEVER GS1150ESG 1986 (G) USA (E03)

CUSHION LEVER GS1150ESG 1986 (G) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260000810
ref: 1

LEVER SET,REAR CUSHION

€ 354.00

2

0926317011
ref: 2
09263-17027

ROLLER BEARING (17X24X2

€ 13.50

3

0926317020
ref: 3
09263-17037

ROLLER BEARING (17X24X25)

€ 19.00

4

0821112281
ref: 4

WASHER

€ 2.00

5

6126241500
ref: 5

COVER,RR SWGARM DUST SEAL

€ 7.50

6

6265731301
ref: 6

BOLT,CUSHION ROD

€ 19.00

7

6262300A00
ref: 7

SPACER,REAR CUSHION LEVER

€ 24.00

8

0831931125
ref: 8
08319-3112B

NUT 12MM

€ 3.00

9

6260000820
ref: 9

ROD SET,REAR CUSHION,LEFT

€ 59.50

10

0926317011
ref: 10
09263-17027

ROLLER BEARING (17X24X2

€ 13.50

11

0821112281
ref: 11

WASHER

€ 2.00

12

6126241500
ref: 12

COVER,RR SWGARM DUST SEAL

€ 7.50

13

6264615500
ref: 13

SPACER,RR CUSHION LEVER ROD UP

€ 11.50

14

6264815500
ref: 14
62668-42A02

BOLT, UPPER

€ 7.00

15

0831931125
ref: 15
08319-3112B

NUT 12MM

€ 3.00

16

6262600A00
ref: 16

SPACER,REAR CUSHION ROD

€ 9.00

17

6265615500
ref: 17

SPACER,RR CUSHION LVR ROD LOW

€ 187.00

18

6265731301
ref: 18

BOLT,CUSHION ROD

€ 19.00

19

0831931125
ref: 19
08319-3112B

NUT 12MM

€ 3.00

20

6241000A00
ref: 20

BRACKET,REAR SHOCK ABSORBER

€ 0.00

21

6241300A00
ref: 21

BOLT,REAR SHOCK ABSORBER BRACKET

€ 3.50
