CARBURETOR
GS400X 1977 (B) USA (E03)

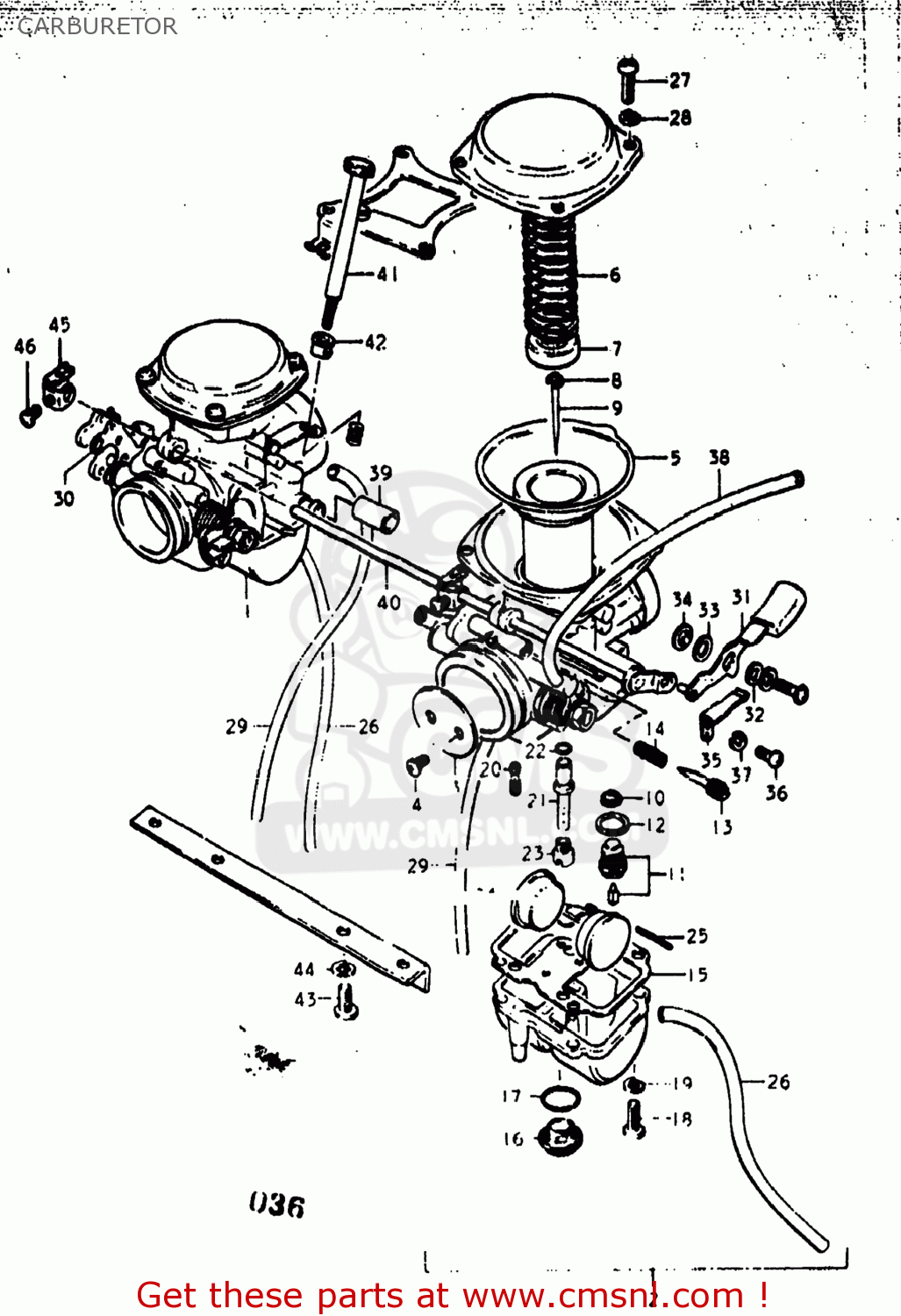

Carburetor diagram GS400X 1977 (B) USA (E03)
CARBURETOR GS400X 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320044010
ref: 0
13200-44012
CARBURETOR ASSEMBLY
€ 197.00
1
1320144010
ref: 1
13201-44012
CARBURETOR ASSEMBLY
€ 106.50
2
1320244010
ref: 2
13202-44012
CARBURETOR ASSEMBLY
€ 148.50
3
1355144010
ref: 3
VALVE,THROTTLE
€ 0.00
4
0212103088
ref: 4
02122-03083
SCREW
€ 2.00
5
1350044010
ref: 5
13500-44110
DIAPHRAGM ASSY
€ 225.00
6
1350344010
ref: 6
SPRING,DIAPHRAGM
€ 8.00
7
1339831210
ref: 7
CONNECTOR
€ 5.50
8
1339444010
ref: 8
13394-31210
CLIP
€ 3.50
9
1338344010
ref: 9
NEEDLE,JET
€ 14.50
10
1337665010
ref: 10
13376-19F00
FILTER
€ 6.50
11
1337044010
ref: 11
VALVE ASSY,NEEDLE
€ 57.00
12
1339216600
ref: 12
GASKET,MAIN JET HOLDER (NAS)
€ 3.00
13
1326944010
ref: 13
SCREW,PILOT AIR
€ 7.50
14
1326801010
ref: 14
SPRING
€ 3.50
15
1325131210
ref: 15
GASKET,FLOAT CAHMBER (NAS)
€ 9.50
16
1324732210
ref: 16
SCREW,GUIDE
€ 13.00
17
1324644010
ref: 17
13249-41310
O-RING
€ 5.00
18
0211104127
ref: 18
02112-0412A
SCREW
€ 1.50
19
0832121048
ref: 19
08321-0104A
LOCK WASHER
€ 2.00
20
0949222004
ref: 20
JET,PILOT
€ 9.00
21
0949400181
ref: 21
JET,NEEDLE
€ 20.00
22
1329531210
ref: 22
09280-03003
O-RING
€ 2.50
23
0949122011
ref: 23
JET,MAIN(112.5)
€ 16.50
24
1325231210
ref: 24
FLOAT
€ 33.50
25
1325401010
ref: 25
PIN,FLOAT
€ 3.00
26
1368344020
ref: 26
13683-45070
HOSE
€ 10.00
27
0211205168
ref: 27
02112-05167
SCREW
€ 2.50
28
0832121058
ref: 28
08321-0105A
LOCK WASHER
€ 2.00
29
1368344010
ref: 29
09355-45855-600
HOSE
€ 14.00
30
1343644010
ref: 30
GASKET
€ 7.00
31
1341344010
ref: 31
13413-44020
LEVER
€ 14.00
32
1361531630
ref: 32
WASHER,STARTER LEVER
€ 1.50
33
1361544010
ref: 33
WASHER,STARTER LEVER
€ 3.00
34
1343231210
ref: 34
RING,STARTER LEVER
€ 3.00
35
1342644010
ref: 35
SPRING
€ 0.00
36
0211104067
ref: 36
02112-0406B
SCREW
€ 2.00
37
0832121068
ref: 37
08321-01067
LOCK WASHER
€ 2.50
38
1368331610
ref: 38
09355-45855-600
HOSE
€ 14.00
39
1368331600
ref: 39
13683-10200
HOSE
€ 8.00
40
1341044010
ref: 40
SHAFT,STARTER
€ 0.00
41
1326744010
ref: 41
ADJUSTER
€ 10.00
42
1327631210
ref: 42
BUSH
€ 4.00
43
0211206128
ref: 43
02112-06127
SCREW 6X12
€ 2.00
44
0832121068
ref: 44
08321-01067
LOCK WASHER
€ 2.50
45
1342244010
ref: 45
LEVER, STARTER
€ 0.00
46
1360531210
ref: 46
SCREW
€ 3.00
